Description

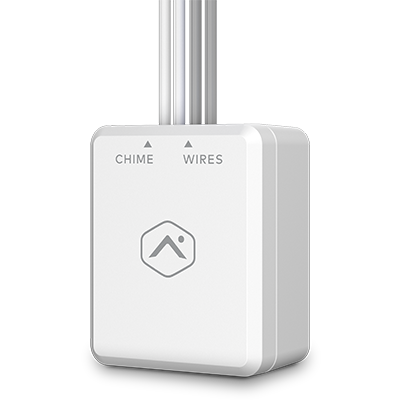

The power module distributes power from the transformer and is required to be used with every ADC-VDB770 installation.
A power module is included with each ADC-VDB770. Additional power modules can be purchased separately on the Partner Portal (SKU: ADC-VDBA-PM).
Power module purpose
- Designed for the ADC-VDB770.
- Enables installers to retrofit existing 10VA (volt-amp) transformers and avoid the need for replacement by allocating all the available power from the transformer to the ADC-VDB770. The additional power allows the ADC-VDB770 to support Video Analytics.
- Blocks electrical currents from running through the chime when the button is not pressed. Doing so prevents humming at the chime.
- Ensures that digital chimes can ring properly.
White Wires
- Wire the white wires in one of the following configurations:
- To a chime's Front and Trans terminals
- To a chime's Rear and Trans terminals
- If there is no chime, see Wire the ADC-VDB770 without a chime for instructions.
- No polarity
Note: While rare, some digital chime installations may cause the indoor chime not to ring after attaching the white wires, even when power requirements are met. Swapping the terminals the white wires are connected to can resolve the behavior in most cases. These situations usually involve a digital chime with an integrated diode.
Gray Wires
- Wire the gray wires to the ADC-VDB770 and the transformer
- No polarity
