R-Series 16-Pair LED Remote Zone Annunciator with Common Controls
Kidde Commercial

R-Series 16-Pair LED Remote Zone Annunciator with Common Controls

SKU KD-K-RLED-C

New to SS&Si? Apply for a dealer account
Share
  • Fast shipping from four branches
  • 30-day returns on unopened products
Questions? Call us 866-364-0030The SS&Si dealer team

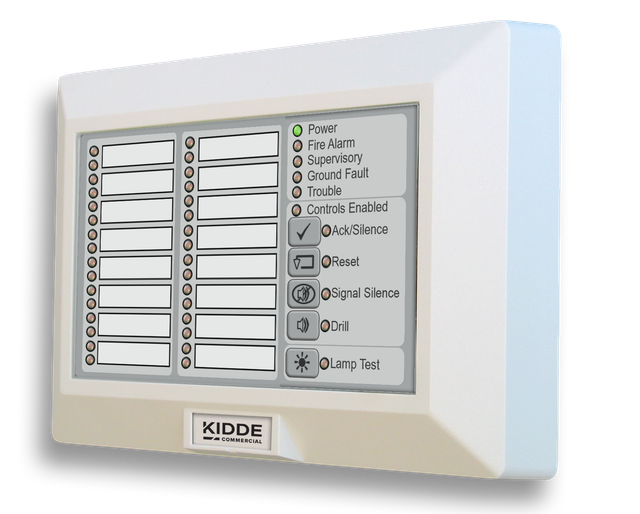

The K-RLED-C puts full zone status and common controls at a secondary location without running back to the FACP. Sixteen pairs of zone LEDs display active and trouble conditions in real time, while dedicated buttons handle Ack/Silence, Reset, Signal Silence, Drill, and Lamp Test - all over a single RS-485 data connection back to the panel.

Built for the commercial fire installer

Compatible with Kidde EVOLVE, VS1, VS4, VM, FX64, and FX1000 fire alarm panels. Zero programming required - set the unit address via DIP switch, wire the RS-485 bus, and the annunciator auto-populates zone data from the panel. Mounts to a standard North American 4-inch square electrical box. UL, ULC, and FM listed.

Key features

  • 16 pairs of zone LEDs show active and trouble status at a glance
  • Full common controls: Ack/Silence, Reset, Signal Silence, Drill, and Lamp Test
  • System status LEDs: Power, Fire Alarm, Supervisory, Ground Fault, Trouble, Controls Enabled
  • No programming required - address via DIP switch, auto-populates from FACP
  • Expandable with up to two K-RLED24-2 expanders for 64 total zone pairs
  • RS-485 communication up to 4,000 ft from the panel on 18-14 AWG twisted pair

System requirements

Requires 24 VDC continuous power from a compatible Kidde fire alarm panel (EVOLVE, VS1, VS4, VM, FX64, or FX1000). Data connection via RS-485 on 18-14 AWG twisted pair, up to 4,000 ft. Mounts to a standard 4-inch square electrical box or other listed enclosure.

Specifications

SKUKD-K-RLED-C
BrandKidde Commercial
Form factorSurface-mount LED zone annunciator with common controls
Power input24 VDC continuous
Standby current53 mA
Alarm current98 mA
CommunicationRS-485 (Class B/DCLB, Redundant Class B/DCLB, or Class A/DCLA), 9600-115200 baud
Data wiring18-14 AWG twisted pair, max 4,000 ft
Zone capacity16 pairs (expandable to 64 with K-RLED24-2 expanders)
MountingNorth American 4-inch square electrical box or listed enclosure
Dimensions5-5/8 x 8-1/2 x 1-1/2 in. (14.3 x 21.4 x 3.8 cm)
Operating temp32 to 120°F (0 to 49°C)
Operating humidity0 to 93% RH noncondensing at 90°F
ComplianceUL, ULC, FM listed
CompatibilityKidde EVOLVE, VS1, VS4, VM, FX64, FX1000

Documents and resources

FAQs

What panels is the K-RLED-C compatible with?
Compatible with Kidde FX64, FX1000, VS1, VS4, EVOLVE, and VM fire alarm control panels.
Does the K-RLED-C require programming?
No. Set the unit address via the onboard DIP switch, connect the RS-485 data bus, and the annunciator auto-populates all zone information from the FACP.
How far can the annunciator be from the panel?
Up to 4,000 ft on 18-14 AWG twisted pair via the RS-485 data bus.
Can I expand beyond 16 zone pairs?
Yes. Add up to two K-RLED24-2 LED expanders (24 pairs each) for a maximum of 64 zone pairs total.
What mounting hardware is needed?
The K-RLED-C mounts to a standard North American 4-inch square electrical box or other listed enclosure. Surface mount only.
