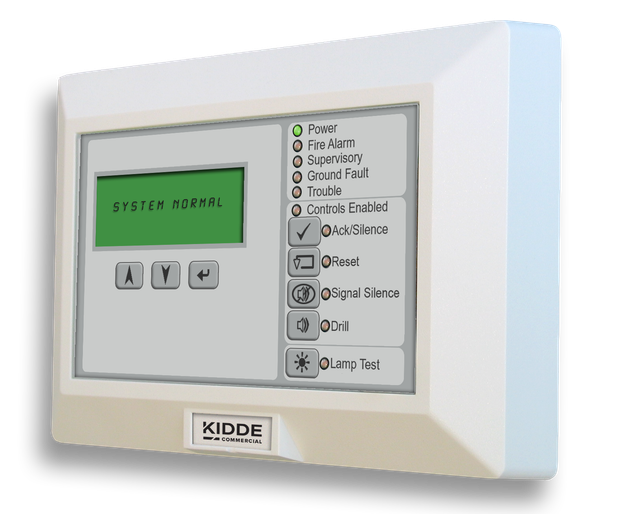

R-Series LCD Text Remote Annunciator with Common Controls for EVOLVE & FX FACP
Kidde Commercial

R-Series LCD Text Remote Annunciator with Common Controls for EVOLVE & FX FACP

SKU KD-K-RLCD-C

New to SS&Si? Apply for a dealer account
Share
  • Fast shipping from four branches
  • 30-day returns on unopened products
Questions? Call us 866-364-0030The SS&Si dealer team

The K-RLCD-C gives installers full system visibility and common control functions from a secondary location on Kidde Commercial EVOLVE, FX, and VS fire alarm panels. A four-line, 20-character backlit LCD display mirrors the main FACP readout over RS-485, showing active alarms, supervisory conditions, troubles, and ground faults in real time - no walk back to the head-end required.

Built for the commercial fire installer

Common controls (Ack/Silence, Reset, Signal Silence, Drill, Lamp Test) are built in, so building managers can acknowledge and silence from the annunciator without accessing the main panel. A key switch input provides optional lockout for facilities that restrict control access. UL, ULC, and FM listed. Wiring runs up to 4,000 feet on 18-14 AWG twisted pair, supporting Class A (DCLA) and Class B (DCLB) configurations.

Key features

  • Full common controls at the remote location: Ack/Silence, Reset, Signal Silence, Drill, and Lamp Test built in
  • 4-line x 20-character backlit LCD mirrors the FACP display for real-time system status
  • RS-485 communication runs up to 4,000 ft on standard twisted pair (18-14 AWG)
  • LED status indicators for Power, Fire Alarm, Supervisory, Ground Fault, and Trouble
  • Key switch input for optional control lockout at the annunciator location
  • UL, ULC, and FM listed for commercial fire alarm installations

System compatibility

Compatible with Kidde Commercial EVOLVE series, FX-64, FX-1000, VS-1, VS-4, and VM fire alarm control panels. Mounts on a standard North American 4-inch square electrical box or listed enclosure.

Specifications

SKUKD-K-RLCD-C
BrandKidde Commercial
Form factorLCD text remote annunciator with common controls
CommunicationRS-485, Class A (DCLA) or Class B (DCLB), 9600-115200 baud
Power input24 VDC continuous (powered from FACP)
Standby current62 mA
Alarm current91 mA
Display4-line x 20-character backlit LCD
Data wiring18-14 AWG twisted pair, max 4,000 ft
LED indicatorsPower, Fire Alarm, Supervisory, Ground Fault, Trouble
Common controlsAck/Silence, Reset, Signal Silence, Drill, Lamp Test, Controls Enabled
Operating temp32°F to 120°F (0°C to 49°C)
Operating humidity0 to 93% RH, noncondensing
MountingNorth American 4-inch square electrical box or listed enclosure
Dimensions5-5/8 x 8-1/2 x 1-1/2 in. (14.3 x 21.4 x 3.8 cm)
ComplianceUL, ULC, FM
CompatibilityKidde EVOLVE, FX-64, FX-1000, VS-1, VS-4, VM

Documents and resources

FAQs

What fire panels is the K-RLCD-C compatible with?
The K-RLCD-C works with Kidde Commercial EVOLVE series, FX-64, FX-1000, VS-1, VS-4, and VM fire alarm control panels over RS-485 communication.
What's the difference between the K-RLCD and K-RLCD-C?
The K-RLCD is an LCD-only annunciator (display and LED indicators, no control buttons). The K-RLCD-C adds common controls: Ack/Silence, Reset, Signal Silence, Drill, and Lamp Test, so operators can manage alarms directly from the remote location.
How far can the annunciator be wired from the fire panel?
Up to 4,000 feet using 18-14 AWG twisted pair wiring over RS-485. Supports Class A (DCLA), Class B (DCLB), and Redundant Class B configurations.
Does the K-RLCD-C support control lockout?
Yes. A remote key switch circuit (5 VDC at 1 mA, power-limited) allows facilities to restrict who can operate the common controls at the annunciator location.
What mounting box does this annunciator require?
Standard North American 4-inch square electrical box or a listed enclosure. No special hardware or adapters required.
