2453BSA Bell/Strobe Adapter Plate, 15/75cd, Red, 24V DC
SKU KD-2453BSA-15/75-R
- Fast shipping from four branches
- 30-day returns on unopened products
The 2453BSA-15/75-R adds a code-required strobe to an existing fire alarm bell installation without replacing the bell or running a new device - the adapter plate mounts the strobe right alongside it.
Built for the commercial fire installer
The strobe self-synchronizes to flash at 1 flash per second across its full operating voltage range on any existing two-wire signal circuit - no separate synchronization control module required. A clear Lexan lens with FIRE marking on both sides keeps the retrofit visually consistent with the rest of the notification system.
Key features
- 15/75 cd strobe output
- Self-synchronizing at 1 fps - no separate sync module needed
- Mounts to an existing bell installation - bell not included
- Clear Lexan lens, FIRE marking on both sides
- Operates on standard 2-wire signal circuits
System requirements
Operates on 24V DC. For use with an existing fire alarm bell (bell not included). Install per NFPA 72.
Specifications
| SKU | KD-2453BSA-15/75-R |
|---|---|
| Brand | Kidde Commercial |
| Form factor | Bell/strobe adapter plate, red, FIRE marking both sides |
| Strobe output | 15/75 cd |
| Operating voltage | 24 Vdc |
| Current draw | 0.15A |
| Synchronization | Self-synchronized, 1 flash per second, no separate sync module required |
| Lens | Clear Lexan |
FAQs
Does this include a bell?
No. The 2453BSA-15/75-R is the strobe adapter plate only; it mounts alongside an existing fire alarm bell (bell sold separately).
Do I need a separate synchronization module?
No. The strobe self-synchronizes at 1 flash per second on the existing two-wire signal circuit.
What voltage does this operate on?
24V DC.
More in Kidde Commercial
All Kidde Commercial-
Kidde Commercial
Kidde | 2452THS Temporal Horn/Strobe, 15/75cd, White, 24V DC | 2452THS-15/75-W
KD-2452THS-15/75-W -
Kidde Commercial
Kidde | 2400 Series Fire Alarm Temporal Horn-Strobe, 15/75 Candela, 24V DC, Red | 2452THS-15/75-R
KD-2452THS-15/75-R -
Kidde Commercial
Kidde | Integrity 70V Speaker-Strobe, 15/75cd, Red, Wall Mount | INT-7AS
KD-INT-7AS -
Kidde Commercial

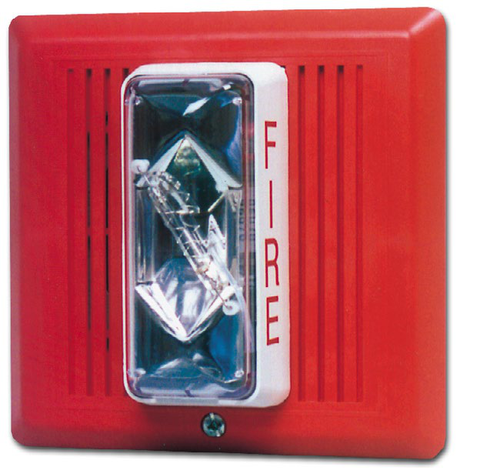

Kidde | Integrity 25V Re-Entrant Speaker-Strobe, 15/75cd, Red, Wall Mount | INT-7AR2
