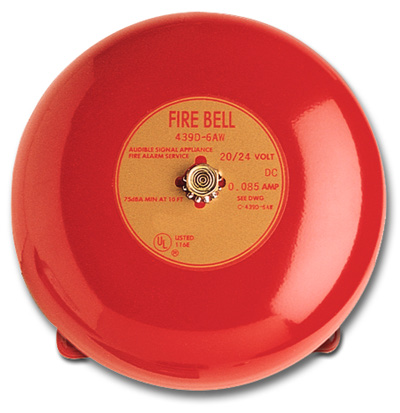

The 439D-6AW puts a compact, alloy-steel gong on the wall or ceiling for jobs where a traditional vibrating bell is the right call over an electronic horn - retrofits, older buildings, or specs that call for it by name.
Built for the commercial fire installer
The 6-inch gong reaches 83 dBA at 10 feet, the smallest and most compact option in the line for tighter spaces or lower ambient noise. Heavy-duty cast underdome construction and a rugged, compact vibrating mechanism keep power draw low (0.085A at 24 Vdc) while running continuously. The included mounting plate fits any standard single-gang opening, and the optional 449 weatherproof back box extends it to outdoor and wet locations.
Key features
- 6-inch alloy-steel gong, 83 dBA at 10 ft
- Vibrating, diode-polarized operation on 24 Vdc
- Low power draw: 0.085A
- Indoor or outdoor with the optional 449 weatherproof back box
- Wall or ceiling mount, fits standard single-gang, 3-1/2", 4" octagon, or 4" square boxes
System requirements
Mounts to any standard single-gang electrical opening using the included mounting plate. For outdoor or wet locations, order the 449 weatherproof surface mount box (gray, with gasket) separately.
Is this rated for outdoor use?
Can this be wall or ceiling mounted?
