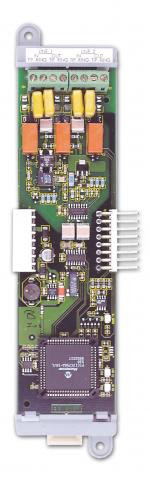

The Kidde VM-DACT is a dual-line dialer card that reports alarm, supervisory, and trouble conditions from a VM-1 control panel to a central station over standard telephone lines. It transmits in dual or split-line format using 4/2 or Contact ID protocol, so one card covers the reporting formats most central stations expect.
Built for the commercial fire installer
- Dual-line reporting using one or two loop-start telephone lines (party, ground-start, and PBX lines are not supported)
- Supports 4/2 and Contact ID dialing formats
- V.32bis modem for remote upload/download programming
- Requires one option card slot in the VM-1 panel
Installs directly into the VM-1 control panel as a factory-supported option card Ć¢ā¬ā no separate enclosure required.
Brand:
Kidde Commercial
Form factor:
Option card, mounts inside VM-1 control panel
Compatibility:
Kidde VM-1 control panel; requires 1 option card slot
Reporting formats:
4/2 and Contact ID
Phone lines:
One or two loop-start lines, pulse or DTMF dialing (party, ground-start, and PBX lines not acceptable)
Operating voltage:
24 VDC
Input current:
Supervisory 60 mA, Active 95 mA
Output:
19.2 or 38.4 Kbps, 100 mA max
Modem:
V.32bis, 14.4 Kbps
