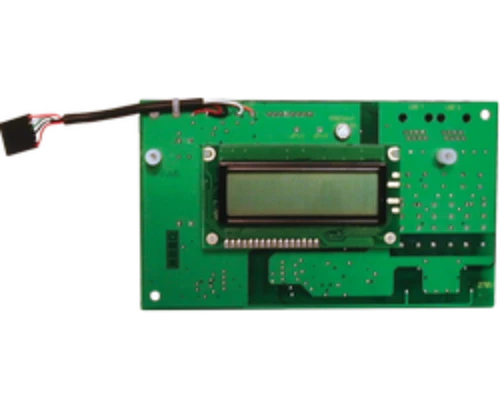

The Kidde F-DACT adds dual-line alarm reporting and remote programming capability to FX-Series intelligent fire alarm panels. It mounts directly to the main circuit board inside the FX-64 or FX-1000 FACP, connecting via two included 7' ribbon cables - no separate enclosure, no extra rack space.
Built for the commercial fire installer
Dual phone line connections give you redundant alarm transmission to the central monitoring station. If the primary line drops, the dialer automatically fails over to the secondary line without additional configuration. The built-in modem supports remote upload/download programming, so panel changes don't require a truck roll to the site.
Key features
- Dual-line DACT: two independent phone lines for redundant alarm reporting to the central station
- Remote upload/download: program and configure the FX panel over a standard phone line without a site visit
- 2x16 character LCD: on-board display for status monitoring, diagnostics, and local programming at the panel
- Direct-mount installation: plugs into the FACP main board via ribbon cables - no separate enclosure needed
- Two 7' cords included: ships ready to install with no extra parts to source
Compatibility
Option card for Kidde Commercial FX-64 and FX-1000 intelligent fire alarm control panels. Connects to the dialer card connector (J8) on the main circuit board. One DACT per panel.
Which panels does the F-DACT work with?
How many phone lines does the F-DACT support?
Can I program the FX panel remotely with the F-DACT?
What's included with the F-DACT?
Does the F-DACT require its own enclosure?
Spec Sheet
