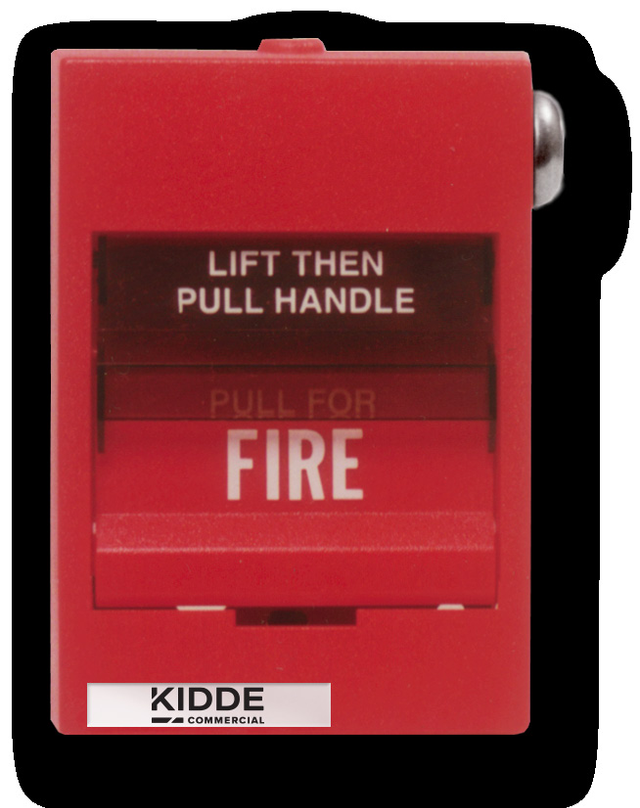

The K-278B-1420 gives building occupants a clear, two-step activation - lift the door, then pull the handle - reducing accidental pulls while staying simple enough for the general public to operate without instruction.
Built for the commercial fire installer
Pulling the handle breaks a glass rod and trips a toggle switch, latching the handle in the alarm position until the station is deliberately reset with a key - no momentary pushbutton to second-guess. Double pole contacts give two independent switch actions per pull, and both presignal and general alarm contacts are included - authorized personnel can initiate a general alarm from any operated station using a separate general alarm key. Rugged red Lexan construction with white raised lettering stands up to daily wear in high-traffic areas.
Key features
- Double-action operation - lift door, then pull handle
- Double pole, open circuit contacts
- Key-operated reset - reset key (276-K1) included
- Presignal and general alarm contacts - general alarm key (276-K2) ordered separately
- Screw terminal field connections
- Break-glass, non-coded operation, latches until reset
System requirements
Semi-flush: standard 4-inch square box with single-gang plaster cover, 2-1/4 in. minimum depth. Surface: 276B-RSB surface back box (sold separately). Replacement glass rods available as 276-GLR.
How does presignal operation work?
What's needed to reset the station after activation?
Is the surface back box included?
