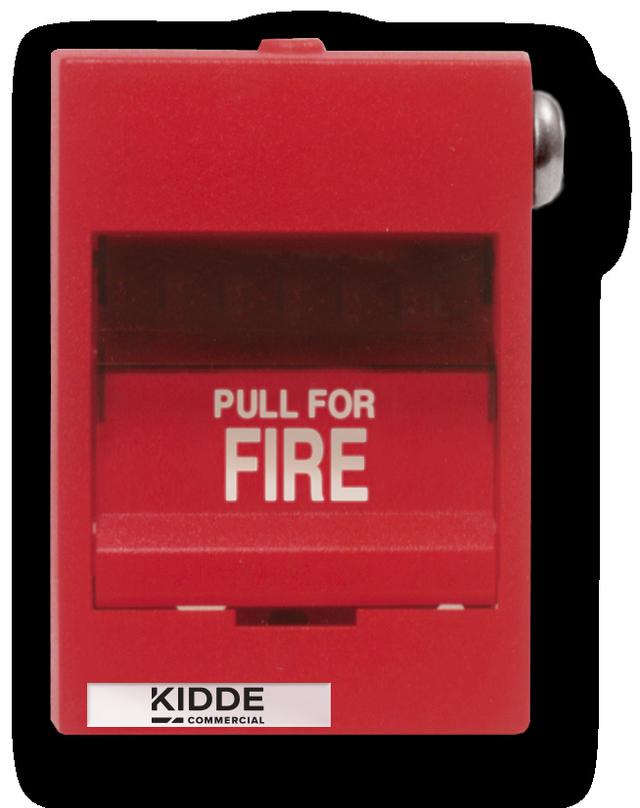

K-276B-1320 Single-Action Fire Alarm Pull Station, Double Pole, Key Reset
SKU KD-K-276B-1320
- Fast shipping from four branches
- 30-day returns on unopened products
The K-276B-1320 gives building occupants one straightforward pull to sound the alarm - no second step, no confusion in an emergency.
Built for the commercial fire installer
Pulling the handle breaks a glass rod and trips a toggle switch, latching the handle in the alarm position until the station is deliberately reset with a key. Double pole contacts give two independent switch actions per pull. Rugged red Lexan construction with white raised lettering stands up to daily wear in high-traffic areas.
Key features
- Single-action operation for fast, straightforward activation
- Double pole, open circuit contacts
- Key-operated reset - reset key (276-K1) included
- General alarm contacts
- Screw terminal field connections
- Break-glass, non-coded operation, latches until reset
System requirements
Semi-flush: standard 4-inch square box with single-gang plaster cover, 2-1/4 in. minimum depth. Surface: 276B-RSB surface back box (sold separately). Replacement glass rods available as 276-GLR.
Specifications
| SKU | KD-K-276B-1320 |
|---|---|
| Brand | Kidde Commercial |
| Form factor | Single-action break-glass pull station, red Lexan |
| Field connections | Screw terminals |
| Switch contacts | Double pole, open circuit |
| Reset type | Key operated (276-K1 key included) |
| Alarm type | General alarm contacts |
| Contact rating | Double pole: 1.5A @ 30 Vac or 1.0A @ 28 Vdc, resistive |
| Housing | Red Lexan 940 with white raised letters |
| Weight | 1 lb (0.4 kg) |
| Compliance | UL Listed |
Documents and resources
FAQs
Is this single-action or double-action?
Single-action - one pull activates the alarm. For a two-step lift-then-pull activation, see the 278B series.
What's needed to reset the station after activation?
The 276-K1 reset key (included), used to open the station, restore the toggle switch, and replace the glass rod.
