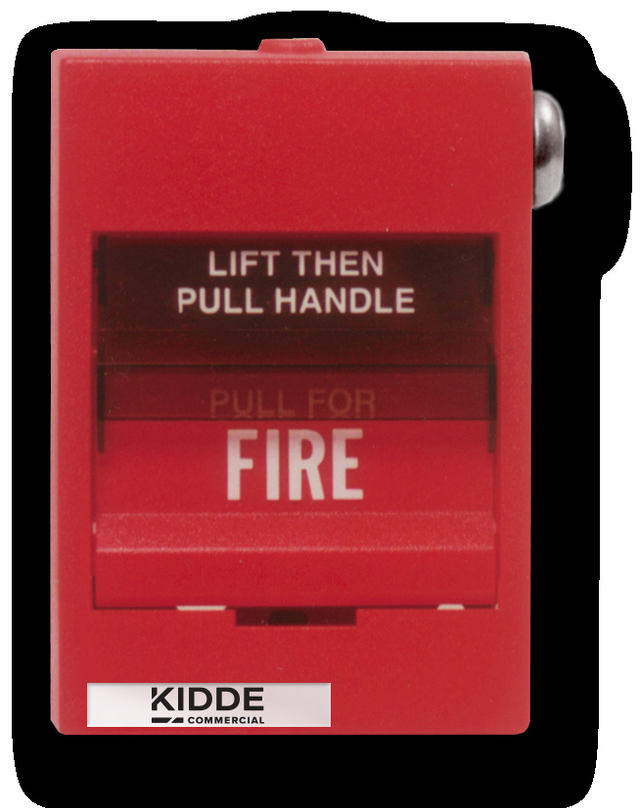

K-279B-1120 Double-Action Fire Alarm Pull Station, Single Pole, Wire Leads, Key Reset
Kidde Commercial

K-279B-1120 Double-Action Fire Alarm Pull Station, Single Pole, Wire Leads, Key Reset

SKU KD-K-279B-1120

New to SS&Si? Apply for a dealer account
Share
  • Fast shipping from four branches
  • 30-day returns on unopened products
Questions? Call us 866-364-0030The SS&Si dealer team

The K-279B-1120 gives building occupants a clear, two-step activation - lift the door, then pull the handle - reducing accidental pulls while staying simple enough for the general public to operate without instruction.

Built for the commercial fire installer

Pulling the handle breaks a glass rod and trips a toggle switch, latching the handle in the alarm position until the station is deliberately reset with a key. Six-inch wire leads drop straight into a junction box splice instead of landing on screw terminals, a faster connection on jobs already using pigtail wiring. Rugged red Lexan construction with white raised lettering stands up to daily wear in high-traffic areas.

Key features

  • Double-action operation - lift door, then pull handle
  • Single pole, open circuit contact
  • 6-inch (150mm) wire leads for field connections
  • Key-operated reset - reset key (276-K1) included
  • General alarm contacts
  • Break-glass, non-coded operation, latches until reset

System requirements

Semi-flush: standard 4-inch square box with single-gang plaster cover, 2-1/4 in. minimum depth, or without backbox. Replacement glass rods available as 276-GLR.

Specifications

SKUKD-K-279B-1120
BrandKidde Commercial
Form factorDouble-action break-glass pull station, red Lexan
Field connections6-inch (150mm) wire leads
Switch contactsSingle pole, open circuit
Reset typeKey operated (276-K1 key included)
Alarm typeGeneral alarm contacts
Contact ratingSingle pole: 3.0A @ 30 Vac or 1.0A @ 28 Vdc, resistive
HousingRed Lexan 940 with white raised letters
Weight1 lb (0.4 kg)
ComplianceUL38 (S218), FM

Documents and resources

FAQs

Why wire leads instead of screw terminals?
Wire leads splice directly into existing wiring or a junction box, which can be faster than landing conductors on screw terminals - useful on jobs already using pigtail connections.
What's needed to reset the station after activation?
The 276-K1 reset key (included), used to open the station, restore the toggle switch, and replace the glass rod.
