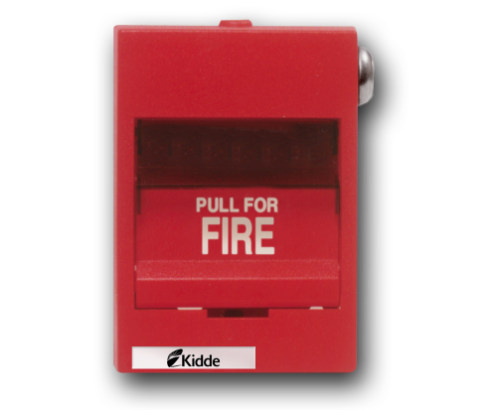

Single-Action Non-Coded Break Glass Fire Alarm Pull Station, Single Pole Open Circuit, Key Reset, Red Lexan
Kidde Commercial

Single-Action Non-Coded Break Glass Fire Alarm Pull Station, Single Pole Open Circuit, Key Reset, Red Lexan

SKU KD-K-276B-1120

New to SS&Si? Apply for a dealer account
Share
  • Fast shipping from four branches
  • 30-day returns on unopened products
Questions? Call us 866-364-0030The SS&Si dealer team

The Kidde K-276B-1120 is a single-action, non-coded fire alarm pull station built for conventional initiating circuits. Pull down on the handle, the glass rod breaks, and the station latches in alarm until manually reset with the included key. Simple, reliable, and field-proven across commercial and institutional fire alarm installs.

Built for the commercial installer

The 276B Series mounts semi-flush on a standard North-American 4-inch square box with a single gang plaster cover (minimum depth 2-1/4 inches) or surface-mounts with the optional 276B-RSB back box. Screw terminal connections keep field wiring straightforward - no pigtails, no proprietary connectors. UL Listed (S2318), red Lexan 940 construction with raised white "PULL FOR FIRE" lettering meets code visibility requirements without question.

Key features

  • Single-action break glass operation - one pull initiates the alarm, no second step for occupants
  • Key reset (276-K1 included) - authorized personnel reset only; general alarm key (276-K2) available separately
  • Rugged red Lexan 940 housing with raised white letters for high-visibility code compliance
  • Single pole open circuit contacts rated 3.0A at 30 Vac / 1.0A at 28 Vdc resistive
  • Screw terminal field connections for clean, tool-accessible wiring
  • UL Listed (S2318) for conventional fire alarm initiating circuits

Mounting requirements

Semi-flush installation requires a standard 4-inch square electrical box with single gang plaster cover and a minimum box depth of 2-1/4 inches (57mm). For surface mounting, order the 276B-RSB red surface back box separately.

Specifications

SKUKD-K-276B-1120
BrandKidde Commercial
Form factorSingle-action fire alarm pull station, break glass
OperationNon-coded, single action, latch-in until key reset
Contact configurationSingle pole, open circuit (normally open)
Contact rating3.0A at 30 Vac / 1.0A at 28 Vdc, resistive load
Reset methodKey reset (276-K1 key included)
Housing materialRed Lexan 940 with raised white letters
MountingSemi-flush (4" square box w/ single gang plaster cover) or surface (276B-RSB back box)
Box depth requirement2-1/4" (57mm) minimum
Field connectionsScrew terminals
ComplianceUL Listed (S2318)

Documents and resources

FAQs

How do you reset this pull station after activation?
Open the station with the 276-K1 reset key (included), restore the toggle switch to normal position, and replace the glass rod. Replacement glass rods are available as part number 276-GLR.
What electrical box does this mount to?
Standard North-American 4-inch square box with a single gang plaster cover, minimum depth 2-1/4 inches (57mm). For surface mounting where a flush box isn't available, use the 276B-RSB surface back box (ordered separately).
What accessories and replacement parts are available?
276-GLR replacement glass rods, 276-K1 station reset key, 276-K2 general alarm key (ordered separately), and 276B-RSB red surface back box.
Is this pull station compatible with coded or pre-signal fire alarm systems?
No. The K-276B-1120 is a non-coded, open circuit station for conventional initiating device circuits. For coded or pre-signal applications, consult the Kidde fire alarm stations catalog for the appropriate model.
Is this station UL Listed?
Yes. UL Listed under S2318 for fire alarm initiating devices.
