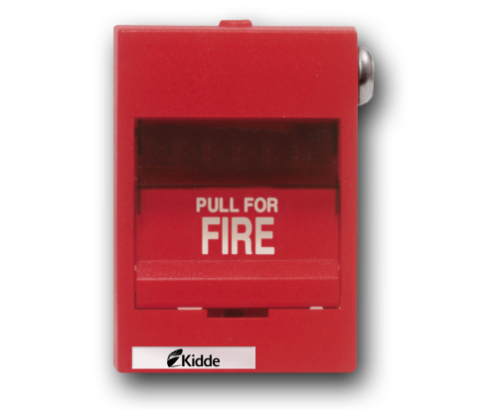

  • Kidde | Single Action Non-Coded Fire Alarm Pull Station, Break Glass LEXAN Housing, Single Pole Open Circuit, Key/Tool Reset | K-276B-1110
Single Action Non-Coded Fire Alarm Pull Station, Break Glass LEXAN Housing, Single Pole Open Circuit, Key/Tool Reset
Kidde Commercial

Single Action Non-Coded Fire Alarm Pull Station, Break Glass LEXAN Housing, Single Pole Open Circuit, Key/Tool Reset

SKU KD-K-276B-1110

New to SS&Si? Apply for a dealer account
Share
  • Fast shipping from four branches
  • 30-day returns on unopened products
Questions? Call us 866-364-0030The SS&Si dealer team

The Kidde K-276B-1110 is a single action, non-coded fire alarm pull station built with rugged LEXAN 940 polycarbonate for commercial fire alarm systems. Pull the handle to break the glass rod and latch the alarm - no second motion required. Resets with the included 276-K1 key or a compatible tool.

Built for the commercial installer

The 276B Series mounts semi-flush on any standard North American 4-inch square box with single gang plaster cover (minimum depth 2-1/4 inches) or surface-mounts with the optional 276B-RSB back box. Screw terminals simplify field wiring - no splicing or wire leads to deal with. UL Listed under S2318, compatible with any conventional (non-coded) fire alarm control panel that accepts normally open contact initiating devices.

Key features

  • Single action activation: one pull breaks the glass rod and latches the alarm handle in position
  • Rugged LEXAN 940 housing: red polycarbonate with white raised lettering, visible and durable in high-traffic areas
  • Key or tool reset: 276-K1 reset key included - restore toggle switch, replace glass rod, and reclose
  • Flexible mounting: semi-flush on standard 4" square box or surface with 276B-RSB back box
  • Screw terminal connections: fast, reliable field wiring without splicing
  • Single pole, open circuit contacts: rated 3.0A at 30 Vac / 1.0A at 28 Vdc resistive

System requirements

Requires a conventional (non-coded) fire alarm control panel with normally open initiating device circuit. Mounts on standard 4-inch square electrical box with single gang plaster cover for semi-flush installation, or use the 276B-RSB surface back box for surface mounting.

Specifications

SKUKD-K-276B-1110
BrandKidde Commercial
Form factorSingle action fire alarm pull station
OperationNon-coded, break glass, latch action until reset
ContactsSingle pole, normally open (open circuit)
Contact rating3.0A at 30 Vac / 1.0A at 28 Vdc, resistive load
ResetKey (276-K1 included) or tool
Housing materialRed LEXAN 940 polycarbonate with white raised letters
MountingSemi-flush on 4" square box or surface with 276B-RSB back box
Box depthMinimum 2-1/4" (57mm) for semi-flush installation
ConnectionsScrew terminals
Weight1 lb (0.4 kg)
ComplianceUL Listed (S2318)

Documents and resources

FAQs

How do you reset the K-276B-1110 after activation?
Open the station with the included 276-K1 key or a compatible tool, restore the toggle switch to its normal position, replace the break glass rod (Cat. No. 276-GLR), and reclose the station.
What mounting box does this pull station require?
For semi-flush installation, use a standard North American 4-inch square electrical box with single gang plaster cover (minimum depth 2-1/4 inches / 57mm). For surface mounting, use the Kidde 276B-RSB surface back box.
Is this pull station compatible with addressable fire alarm panels?
No. The K-276B-1110 is a conventional (non-coded) initiating device with dry contacts. For addressable/intelligent fire alarm systems, see the Kidde Intelligent Manual Pull Stations.
What are the contact ratings?
Single pole contacts rated at 3.0 Amps at 30 Vac and 1.0 Amps at 28 Vdc, resistive load. Open circuit (normally open) configuration.
Where can I get replacement glass rods?
Order Kidde Cat. No. 276-GLR replacement glass rods through your SS&Si rep. Keep spares on hand - every activation requires a new glass rod for reset.
