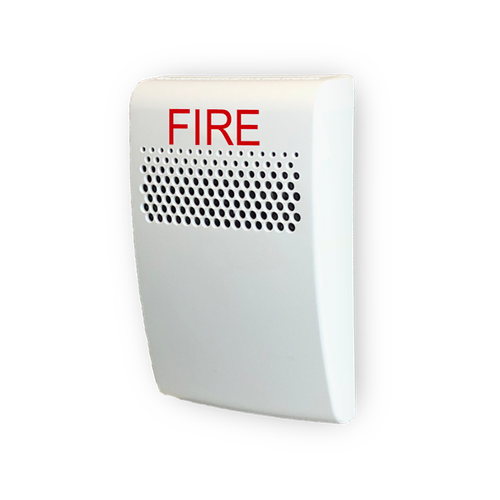

Kidde | Genesis LED EG1 Series Compact Wall-Mount Horn, Steady Tone, 24V White, FIRE Marking | EG1F-P

The Kidde Genesis LED EG1F-P is a compact wall-mount horn designed for 24V fire alarm notification circuits. Its low-profile form factor makes it one of the smallest wall-mount notification appliances available, keeping a clean aesthetic on finished walls without sacrificing output. White housing with FIRE marking for easy identification during AHJ inspection.

Built for the commercial fire installer

UL 464 and ULC listed for audible signaling applications. The EG1 series mounts directly on standard 4-inch square boxes, single-gang, or double-gang boxes with no adapters, cutting install time on tenant improvement and new construction jobs. Field-selectable dB output and tone settings let you dial in the sound level for the space without swapping hardware.

Key features

• Compact, low-profile design: one of the smallest wall-mount horns in the industry, reducing visual impact on finished walls
• 24V DC/FWR operation: powers directly off the NAC circuit from your FACP
• Field-selectable output: multiple dB and tone settings configurable at the device
• Standard box mounting: fits 4" square, single-gang, and double-gang boxes with no adapters
• UL 464 and ULC listed: compliant for commercial fire alarm notification
• FIRE marking: white housing with clear FIRE identification for AHJ inspection

System requirements

Requires a 24V fire alarm control panel (FACP) with NAC circuit output. Not compatible with Signal Master synchronization - for synchronized applications, consider the Genesis LED EG4 series or horn-strobe models with built-in sync capability. Wire with 12-18 AWG per circuit requirements.
