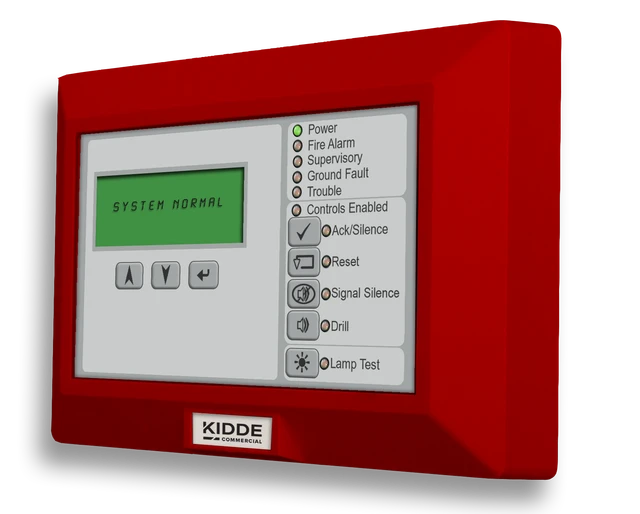

R-Series LCD Remote Fire Alarm Annunciator with Common Controls, Red, RS-485, UL/ULC/FM, EVOLVE Compatible
Kidde Commercial

R-Series LCD Remote Fire Alarm Annunciator with Common Controls, Red, RS-485, UL/ULC/FM, EVOLVE Compatible

SKU KD-K-RLCD-CR-2

New to SS&Si? Apply for a dealer account
Share
  • Fast shipping from four branches
  • 30-day returns on unopened products
Questions? Call us 866-364-0030The SS&Si dealer team

The Kidde K-RLCD-CR-2 gives installers full system visibility and common controls at a remote location without running back to the FACP. This R-Series LCD annunciator connects to EVOLVE-ML, FX64, FX1000, VS1, VS4, and VM panels over RS-485, displaying real-time system status on a backlit 4-line by 20-character LCD. The red enclosure matches standard fire alarm aesthetics for code-compliant installations.

Built for the commercial fire alarm installer

R-Series annunciators mount on any standard North American 4-inch square electrical box using the included mounting ring, or surface mount in optional locking steel enclosures (RA-ENC1, RA-ENC2, RA-ENC3). Power comes from the FACP or any listed 24 VDC supply. RS-485 data wiring supports Class A, Class B, or Redundant Class B configurations with runs up to 4,000 ft - plenty of distance for lobby, guard station, or secondary entrance placements. UL, ULC, and FM listed.

Key features

  • Full common controls: Ack/Silence, Reset, Signal Silence, Drill, and Lamp Test buttons for remote system management
  • Backlit 4x20 LCD display shows real-time panel status, no squinting at LEDs across the lobby
  • Status LEDs for all five conditions: Power, Fire Alarm, Supervisory, Ground Fault, and Trouble
  • No programming required: set the DIP switch address and the annunciator pulls information from the panel automatically
  • Expandable: connect up to two K-RLED24-2 LED expanders for 48 additional zone indicator pairs
  • Optional keyswitch (RKEY) enables or disables common controls for restricted-access installations

System requirements

Requires a compatible Kidde Commercial FACP (EVOLVE-ML, FX64, FX1000, VS1, VS4, or VM series) with an available RS-485 riser connection. Power from the panel or a listed 24 VDC supply. Data wiring: 18-14 AWG twisted pair, 6 twists per foot minimum.

Specifications

SKUKD-K-RLCD-CR-2
BrandKidde Commercial
Form factorLCD remote annunciator with common controls, red enclosure
DisplayBacklit LCD, 4 lines x 20 characters
CommunicationRS-485 (Class A/DCLA, Class B/DCLB, or Redundant Class B/DCLB)
Baud rate9,600 to 115,200 baud
Power input24 VDC, continuous
Standby current62 mA
Alarm current91 mA
Data wiring18-14 AWG twisted pair, 4,000 ft max, 6 twists/ft minimum
Power wiring18-14 AWG
Dimensions5-5/8 x 8-1/2 x 1-1/2 in. (14.3 x 21.4 x 3.8 cm)
MountingStandard North American 4-inch square electrical box or listed enclosure
CompatibilityKidde EVOLVE-ML, FX64, FX1000, VS1, VS4, VM panels
ComplianceUL, ULC, FM
Operating temp32 to 120°F (0 to 49°C)
Operating humidity0 to 93% RH, noncondensing at 90°F (32°C)

Documents and resources

FAQs

Does this annunciator require programming?
No. Set the network address via DIP switches and the annunciator receives all information from the panel automatically. No laptop or programming tool needed.
What panels is the K-RLCD-CR-2 compatible with?
Compatible with Kidde Commercial EVOLVE-ML, FX64, FX1000, VS1, VS4, and VM fire alarm control panels.
Can I expand the annunciator with additional zone LEDs?
Yes. Connect up to two K-RLED24-2 LED expanders to add 24 pairs of zone LEDs each (48 additional zones total). Expanders connect via RS-485 data bus.
What's the difference between K-RLCD-C-2 and K-RLCD-CR-2?
Same annunciator, different finish. The CR-2 has a red enclosure for fire alarm installations. The C-2 is the standard gray/white finish.
Can I disable the common controls at the annunciator?
Yes. Install the optional RKEY keyswitch to lock out common controls (Ack/Silence, Reset, Signal Silence, Drill) for restricted-access locations.
How far can the annunciator be from the FACP?
RS-485 data wiring supports runs up to 4,000 ft (1,219 m) using 18-14 AWG twisted pair with a minimum of 6 twists per foot.
