  • Kidde | Genesis G4 Wall Mount Speaker-Strobe, Amber Lens, Selectable Candela & Wattage, Mass Notification | G4SVWN-A

You save

Kidde | Genesis G4 Wall Mount Speaker-Strobe, Amber Lens, Selectable Candela & Wattage, Mass Notification | G4SVWN-A

Kidde | Genesis G4 Wall Mount Speaker-Strobe, Amber Lens, Selectable Candela & Wattage, Mass Notification | G4SVWN-A

No reviews yet Write a Review
SKU:
KD-G4SVWN-A

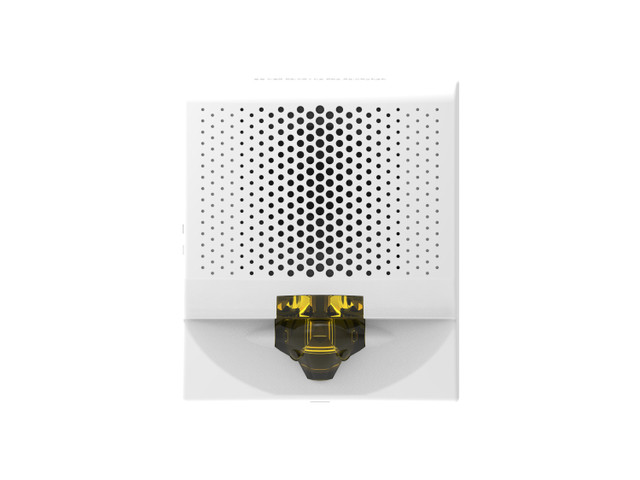

The Kidde Genesis G4 Speaker-Strobe delivers clear audio and bright amber visual notification from a wall-mount form factor that protrudes just one inch from the wall. Purpose-built for mass notification applications, it fits flush on standard 4-inch square electrical boxes with no visible mounting screws and no extension ring required.

Built for the commercial installer

Field-configurable wattage (1/4, 1/2, 1, or 2 watt) and selectable candela output (13, 26, 65, or 95 cd) mean you set the device to the job without pulling it off the wall. The sealed-back 4-inch mylar cone produces clear, intelligible audio across 25 VRMS or 70 VRMS speaker circuits, while the amber polycarbonate strobe lens meets UL 1638 requirements for mass notification signaling. UL/ULC listed, MEA approved.

Key features

  • Ultra low-profile design: just 1" depth to wall with no visible mounting screws for a clean, unobtrusive installation
  • Field-configurable without removal: selectable wattage and candela switches remain accessible after install through bottom-of-device windows
  • Amber lens for mass notification: differentiates mass notification alerts from fire alarm signals per UL 1638
  • Selectable candela output: 13, 26, 65, or 95 cd to match notification zone requirements
  • Standard 4" box mounting: fits North-American 4" square electrical boxes, 2-1/8" deep with no adapter or trim plate needed
  • Wiring flexibility: screw terminals accept #18 to #12 AWG, separate polarized inputs for speaker and strobe circuits

System compatibility

Connects to a supervised amplifier signal circuit (25 VRMS or 70 VRMS) and a notification appliance circuit (16-33 Vdc regulated or full wave rectified). Compatible synchronization sources include GSA-CC1S, GSA-MCC1S, SIGA-CC2A, GSA-MCC2A, EG1M-RM, MIRBPS6A, MIRBPS10A, APS6A, APS10A, VS Series, and Fireshield Plus 5 and 10 zone panels. Optional surface mount with EG4B box (white) for applications without a flush back box.

Brand:
Kidde Commercial
Form factor:
Wall-mount speaker-strobe, Genesis G4 Series
Dimensions:
6.5" H x 5" W x 1" D (165 x 127 x 25 mm)
Housing:
White textured UV stabilized, color impregnated engineered plastic
Speaker input:
25 VRMS or 70 VRMS
Speaker frequency response:
400 to 4,000 Hz
Speaker cone:
4-inch (102 mm) mylar, sealed back construction
Wattage taps:
Selectable 1/4, 1/2, 1, or 2 watt
Strobe output:
Selectable 13, 26, 65, or 95 cd (amber)
Strobe operating voltage:
16-33 Vdc regulated or 16-33 V full wave rectified
Strobe flash rate:
1 flash per second
Lens:
Amber polycarbonate
Mounting:
Flush to 4" square box, 2-1/8" (54 mm) deep; surface with optional EG4B box
Wire connections:
Screw terminals, #18 to #12 AWG (0.75-2.5 mmĀ²), separate polarized inputs
Operating temp:
32-120Ā°F (0-49Ā°C)
Operating humidity:
0-93% relative humidity, non-condensing
Compliance:
UL 1971, UL 1638, CAN/CSA-C22.2 No. 205, MEA, FCC
UL/ULC file number:
S2813
CSFM file number:
7320-1657: 0211/0285
Synchronization sources:
GSA-CC1S, GSA-MCC1S, SIGA-CC2A, GSA-MCC2A, EG1M-RM, MIRBPS6A, MIRBPS10A, APS6A, APS10A, VS Series, Fireshield Plus panels
Text marking:
None
Does this speaker-strobe work for mass notification?
Yes. The amber lens meets UL 1638 requirements for mass notification signaling, differentiating mass notification alerts from fire alarm signals. This model is not approved for fire alarm applications.
Can I adjust the strobe brightness after installation?
Yes. The candela output is field-selectable (13, 26, 65, or 95 cd) via a switch visible through the bottom of the device. No need to remove the unit from the wall.
What wattage settings are available?
The speaker supports selectable wattage taps at 1/4, 1/2, 1, or 2 watts. The setting is visible through a window on the bottom of the device and can be changed without removing the speaker-strobe.
Will this fit a standard 4-inch electrical box?
Yes. Mounts flush to any North-American 4" square electrical box, 2-1/8" (54 mm) deep. For surface mounting, use the optional EG4B (white) surface mount box. No extension ring or trim plate required.
What synchronization sources are compatible?
Compatible sources include GSA-CC1S, GSA-MCC1S, SIGA-CC2A, GSA-MCC2A, EG1M-RM, MIRBPS6A, MIRBPS10A, APS6A, APS10A, VS Series, and Fireshield Plus 5 and 10 zone panels.
How far does the device protrude from the wall?
Just 1 inch (25 mm). The low-profile Genesis design features no visible mounting screws for a clean, unobtrusive appearance.
