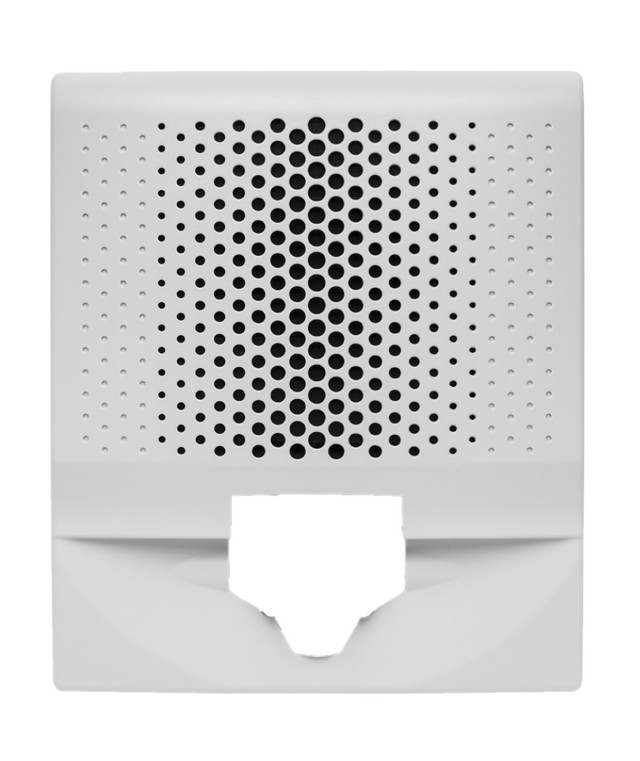

The EG4AVWN-CVR is a replacement front cover for Kidde Genesis LED EG4 Series wall-mount horn-strobe notification appliances. White housing with no marking - snap it onto an existing EG4 horn-strobe chassis without pulling the device off the wall or touching the wiring.
Quick cover swap, no rewiring
The cover snaps directly onto the EG4 Series device chassis. While the cover is removed, the candela selector switch and tone selector switch are accessible for field adjustment - set the strobe output (15, 30, 75, or 110 cd) and horn pattern (constant or temporal) before snapping the new cover in place. The candela setting remains visible through a small window on the side of the device after installation.
When to use this cover
- Color change: convert a red EG4 horn-strobe housing to white without replacing the device
- Marking change: swap from a "FIRE" marked cover to an unmarked cover (or vice versa with EG4AVWF-CVR)
- Damage replacement: replace a cracked or discolored cover without a full device swap
- AHJ compliance: match housing color and marking requirements to the local authority's code without new device installs
Brand:
Kidde Commercial
Form factor:
Replacement cover for Genesis LED EG4 Series wall-mount horn-strobe
Color:
White
Cover marking:
None (unmarked)
Compatibility:
Kidde Genesis LED EG4 Series wall-mount horn-strobe notification appliances
Mounting:
Snap-on to EG4 device chassis - no tools required, no need to remove device from wall
Strobe candela options:
15, 30, 75, 110 cd (selectable on device with cover removed)
Certifications:
UL 464, UL 2572, ULC-S525, ULC-S526
What devices does this cover fit?
Genesis LED EG4 Series wall-mount horn-strobe notification appliances. It replaces the front housing cover without removing the device from the wall.
Does this cover have FIRE marking?
No. This is the unmarked (N) version. For a FIRE-marked white cover, order EG4AVWF-CVR.
Can I change the cover color from red to white?
Yes. The cover snaps onto the device chassis regardless of the original housing color. Use this white cover to convert a red EG4 horn-strobe to a white housing.
Do I need to remove the device from the wall to swap the cover?
No. The cover snaps onto the front of the device chassis. While the cover is off, the candela and tone selector switches are accessible for field adjustment.
What candela settings are available on the EG4 horn-strobe?
15, 30, 75, and 110 cd, selectable via a rotary switch on the device chassis. The selected setting is visible through a window on the side of the device after the cover is installed.
Spec Sheet
