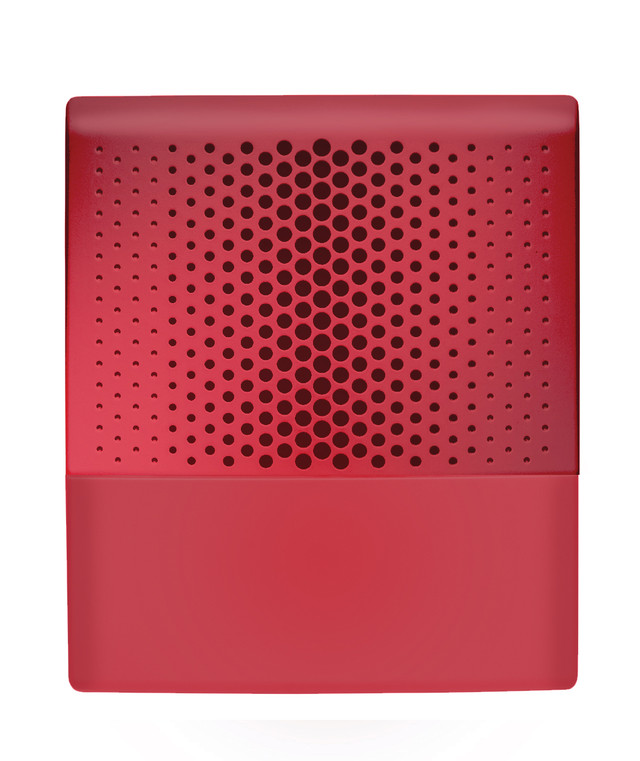

Kidde | Genesis LED EG4 Series Wall Mount Horn, Red, No Marking | EG4ARN

Kidde | Genesis LED EG4 Series Wall Mount Horn, Red, No Marking | EG4ARN

No reviews yet Write a Review
SKU:
KD-EG4ARN

The Kidde EG4ARN is a wall mount notification horn in the Genesis LED EG4 Series. It delivers selectable high or low dB output with constant or TC3 temporal patterns, pulling as little as 18 mA on a 24 VDC NAC circuit. Red housing with no marking fits commercial spaces where code requires audible notification without visible "FIRE" labeling.

Built for the commercial fire installer

The EG4 Series mounts to standard 1-gang, 2-gang, 3.5-inch octagon, or 4-inch square boxes with no visible mounting screws. At just 1.62 inches deep, it sits tight to the wall surface. The GP10 room side wiring plate comes included, keeping 12-18 AWG in/out screw terminal connections accessible without pulling the device off the wall. UL listed (S218, S5389) and FCC certified.

Key features

  • Selectable output: high (85 dBA reverberant / 92 dBA anechoic) or low (80 dBA reverberant / 86 dBA anechoic) via field-selectable switch
  • Selectable signal pattern: constant or TC3 temporal horn output
  • Low current draw: 18 mA at low setting (24 VDC) maximizes devices per NAC circuit
  • Universal box compatibility: fits 1-gang, 2-gang, 3.5" octagon, or 4" square electrical boxes
  • Room side wiring plate included: GP10 plate allows wiring access from the room side without device removal
  • Genesis LED synchronization: syncs across up to 20 Ī© loop resistance with Kidde CC Series Signal Modules or compatible panels

System compatibility

Works with Kidde CC Series Signal Modules, Booster and Auxiliary Power Supplies, and Kidde Intelligent and Conventional Fire Alarm Control Panels. Can be wall or ceiling mounted. Replaceable quick-swap covers and optional trim plates (EG4TR red, EG4TW white) available separately.

Brand:
Kidde Commercial
Form factor:
Wall mount horn (audible notification appliance)
Power input:
16 to 33 VDC or 16 to 33 VFWR
Current draw (high):
28 mA (VDC) / 38 mA (VFWR) at 24V
Current draw (low):
18 mA (VDC) / 22 mA (VFWR) at 24V
Sound output (high):
85 dBA reverberant / 92 dBA anechoic
Sound output (low):
80 dBA reverberant / 86 dBA anechoic
Signal pattern:
Selectable constant or TC3 temporal
Wire size:
12 to 18 AWG
Compatible boxes:
1-gang, 2-gang, 3.5" octagon, 4" square
Dimensions:
4.95 x 5.78 x 1.62 in (W x H x D)
Operating temp:
32 to 122Ā°F (0 to 50Ā°C)
Storage temp:
-40 to 158Ā°F (-40 to 70Ā°C)
Operating humidity:
0 to 93% noncondensing
Synchronization:
ā‰¤20 Ī© loop resistance between devices
Color:
Red
Marking:
None
Included accessories:
GP10 room side wiring plate
Compliance:
UL listed (S218, S5389), FCC certified
What electrical boxes does the EG4ARN mount to?
Standard 1-gang, 2-gang, 3.5-inch octagon, and 4-inch square electrical boxes. No special mounting hardware required.
Can I switch between high and low dB output in the field?
Yes. The EG4ARN has a field-selectable switch for high (85/92 dBA) or low (80/86 dBA reverberant/anechoic) output. No tools or reprogramming required.
What is the current draw per device on the NAC circuit?
At 24 VDC: 18 mA (low), 28 mA (high). At 24 VFWR: 22 mA (low), 38 mA (high). Low draw maximizes devices per NAC loop.
Does the EG4ARN synchronize with other Genesis notification devices?
Yes. Syncs with other Genesis LED devices when loop resistance is 20 Ī© or less. Sync sources: Kidde CC Series Signal Modules, Booster/Auxiliary Power Supplies, Intelligent and Conventional FACPs.
What does No Marking mean on the EG4ARN?
The EG4ARN ships with a plain red faceplate - no "FIRE" text or lettering. Required in some jurisdictions or applications where visible fire alarm labeling is not desired or code-mandated.
How far does the EG4ARN project from the wall?
1.62 inches from the mounting surface. The Genesis EG4 Series profile minimizes wall protrusion while maintaining full sound output.
