Genesis G4 Series Wall Mount Fire Alarm Speaker, Red, FIRE Marking, Selectable Wattage
Kidde Commercial

Genesis G4 Series Wall Mount Fire Alarm Speaker, Red, FIRE Marking, Selectable Wattage

SKU KD-EG4SRF

New to SS&Si? Apply for a dealer account
Share
  • Fast shipping from four branches
  • 30-day returns on unopened products
Questions? Call us 866-364-0030The SS&Si dealer team

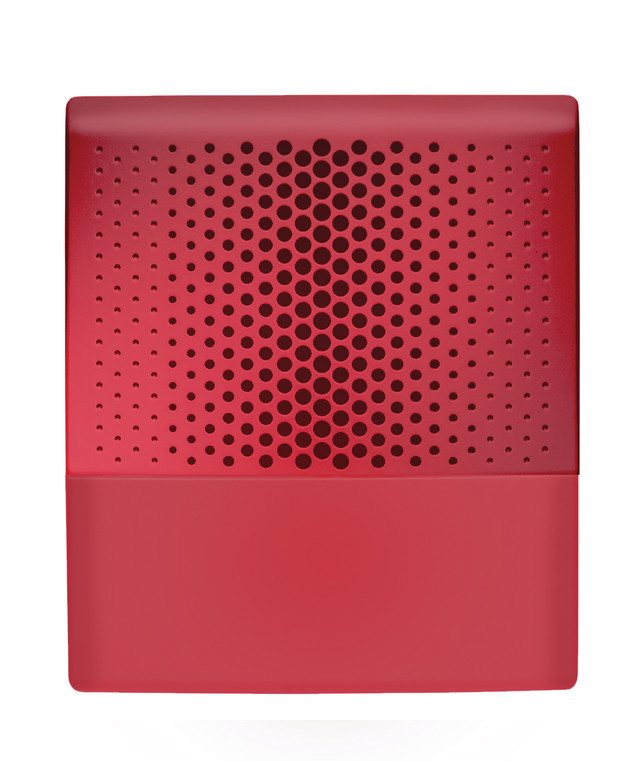

The Kidde Genesis G4 Series EG4SRF is a wall-mount fire alarm speaker that delivers clear, intelligible audio across commercial spaces while barely adding an inch to the wall profile. Field-selectable wattage taps (1/4, 1/2, 1, or 2 watt) let you dial in output without removing the device - set it during install, adjust it after final inspection, no callbacks.

Built for the commercial fire installer

The sealed-back 4-inch mylar cone produces 80 to 89 dBA (UL 1480 rated at 10 ft) depending on wattage tap, with a frequency response of 400 to 4,000 Hz optimized for voice intelligibility. Available for 25 VRMS or 70 VRMS audio circuits, both with a built-in DC blocking capacitor for electrical supervision. Red housing with FIRE marking and room-side wiring plate included. UL and ULC listed (File Number S2813), MEA and CSFM approved.

Key features

  • Ultra-low profile: protrudes just 1" from the wall with no visible mounting screws
  • Field-selectable wattage: 1/4, 1/2, 1, or 2 watt - visible through a window on the device bottom, changeable without removal
  • Standard electrical box mount: fits North-American 4" square boxes, 2-1/8" deep - no extension ring needed
  • Supervised audio circuit: built-in DC blocking capacitor for electrical supervision of the speaker distribution circuit
  • Broad wire compatibility: screw terminals accept #18 to #12 AWG for long runs or existing wiring
  • Room-side wiring plate included for clean installs and easy service access

System requirements

Connects to a listed fire alarm control panel (FACP) supervised amplifier signal circuit (25 VRMS or 70 VRMS). Optional EG4RB red surface mount box available for installations without a recessed electrical box. Compatible with the EG1M-RM sync module for synchronized audio distribution.

Specifications

SKUKD-EG4SRF
BrandKidde Commercial
Form factorWall mount speaker, Genesis G4 Series
Speaker cone4-inch (102 mm) mylar, sealed back construction
Frequency response400 to 4,000 Hz
WattageSelectable 1/4, 1/2, 1, or 2 watt
Sound output80 dBA (1/4W), 83 dBA (1/2W), 86 dBA (1W), 89 dBA (2W) at 10 ft (UL 1480)
Power input25 VRMS or 70 VRMS speaker circuit
Wire connectionsScrew terminals, #18 to #12 AWG (0.75 to 2.5 mm²)
MountingFlush to 4" square electrical box, 2-1/8" (54 mm) deep
Dimensions6.5" H x 5" W x 1" D (165 x 127 x 25 mm)
Operating temp32°F to 120°F (0°C to 49°C)
Operating humidity0-93% relative humidity, non-condensing
HousingRed, UV stabilized color-impregnated engineered plastic, FIRE marking
ComplianceUL 1638, UL 1971, UL 1480 (5th Ed.), ULC-S541
ApprovalsUL/ULC File S2813, MEA, CSFM 7320-1657:0211/0285
Weight1.5 lbs (0.68 kg)
AccessoriesEG4RB red surface mount box, EG1M-RM sync module

Documents and resources

FAQs

What electrical box does this speaker fit?
Fits standard North-American 4" square electrical boxes, 2-1/8" (54 mm) deep. Optional EG4RB red surface mount box available when no recessed box is present.
Can I change the wattage tap after installation?
Yes. The wattage setting is visible through a window on the bottom of the device and adjustable by sliding the switch. No need to remove the speaker from the wall.
Does this speaker work on 25V and 70V circuits?
Models are available for both 25 VRMS and 70 VRMS audio circuits. Verify the correct model matches your FACP's supervised amplifier output before ordering.
Is the audio circuit supervised?
Yes. All Genesis G4 speakers include a built-in DC blocking capacitor for electrical supervision of the audio distribution circuit. No external capacitor needed.
What is the UL-rated sound output?
UL 1480 rated at 10 ft: 80 dBA at 1/4W, 83 dBA at 1/2W, 86 dBA at 1W, 89 dBA at 2W (standard frequency, 25 VRMS models).
What sync module works with this speaker?
The EG1M-RM sync module provides synchronized audio distribution across multiple Genesis speakers on the same NAC circuit.
