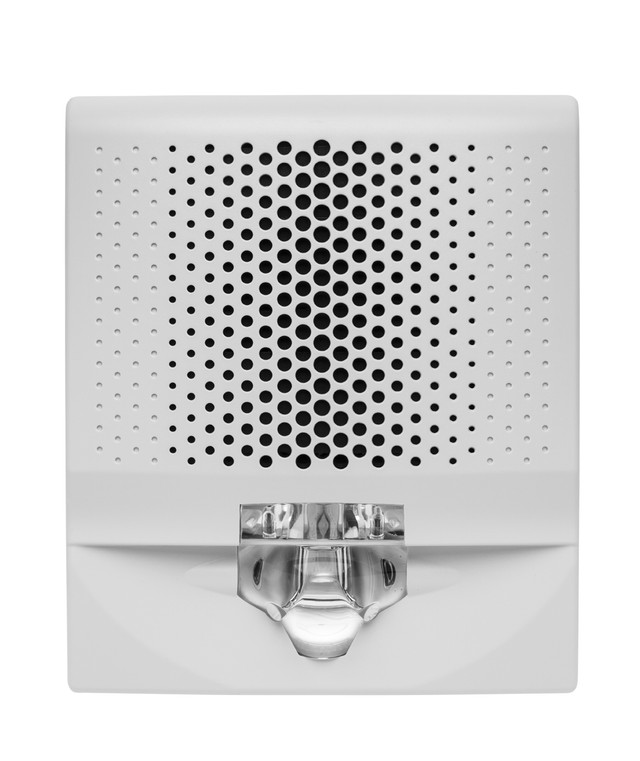

p The Kidde Genesis LED EG4 Speaker/Strobe brings clear, high-output audio and visual notification to commercial fire alarm systems without the maintenance headache of xenon tubes. LED technology means lower current draw on the NAC circuit and a longer service life - fewer callbacks, fewer panel capacity surprises. /p h2 Built for the commercial fire installer /h2 p The EG4SVWN mounts on standard North American 4" square electrical boxes with the included room side wiring plate, keeping install time short and hardware costs down. Strobe intensity is field-selectable at 15, 30, 75, or 110 cd to meet NFPA 72 and ADA spacing requirements without swapping the device. Speaker taps are field-selectable at 25V or 70V with power options from 1/4W to 2W, giving you the flexibility to balance coverage and circuit loading on the same NAC run. /p h3 Key advantages /h3 ul li strong LED strobe with selectable output: /strong 15, 30, 75, or 110 cd - set it in the field to match spacing tables without stocking multiple SKUs /li li strong Dual-voltage speaker: /strong 25V or 70V field-selectable with 1/4W, 1/2W, 1W, and 2W tap options /li li strong Lower NAC current draw: /strong LED technology reduces per-device current vs. xenon, letting you load more devices per circuit /li li strong Standard 4" box mount: /strong room side wiring plate included - no special backbox or adapter needed /li li strong Built-in synchronization: /strong Genesis LED sync protocol keeps strobes in lockstep without a separate sync module /li li strong UL and ULC listed: /strong UL 1971, UL 1480, ULC-S525, ULC-S541 for US and Canadian installations /li /ul h3 System requirements /h3 p Operates on 24 VDC or 24 VFWR (regulated 16-33 VDC). Connects to any Kidde or Edwards compatible FACP NAC circuit. Wire gauge: 12-18 AWG. Indoor use only. /p
Brand:
Kidde
Form factor:
Wall mount speaker/strobe
Power input:
24 VDC or 24 VFWR (regulated 16-33 VDC)
Speaker voltage:
25V or 70V field selectable
Speaker power taps:
1/4W, 1/2W, 1W, 2W field selectable
Strobe output:
15, 30, 75, 110 cd field selectable
Strobe technology:
LED
Synchronization:
Built-in Genesis LED sync protocol
Operating temp:
32Ā°F to 120Ā°F (0Ā°C to 49Ā°C)
Operating humidity:
10% to 93% non-condensing
Wire gauge:
12-18 AWG
Mounting:
Standard North American 4" square electrical box
Finish:
White
Lens marking:
None (unmarked)
Compliance:
UL 1971, UL 1480, ULC-S525, ULC-S541, NFPA 72, ADA
Environment:
Indoor use only
Included accessories:
Room side wiring plate
What candela settings are available on the EG4SVWN?
The strobe is field-selectable at 15, 30, 75, and 110 cd via a switch on the device. Choose the output that matches NFPA 72 spacing tables for the room size and mounting height.
Does this require a separate sync module?
No. Genesis LED devices have built-in synchronization. Strobes sync automatically on the same NAC circuit without an external module.
What speaker voltages and power taps does this support?
The speaker is field-selectable for 25V or 70V operation. Power taps are available at 1/4W, 1/2W, 1W, and 2W, letting you balance audio coverage and NAC circuit loading.
What electrical box does this mount on?
Standard North American 4" square (4-11/16") electrical box. A room side wiring plate is included - no special backbox or adapter needed.
Is this compatible with Edwards fire panels?
Yes. The Genesis LED EG4 series is compatible with both Kidde and Edwards fire alarm control panels and NAC circuits.
Can I use this outdoors?
No. The EG4SVWN is rated for indoor use only (32Ā°F to 120Ā°F, 10-93% RH non-condensing). For outdoor notification, see the Genesis LED outdoor speaker/strobe models (EWG series).
