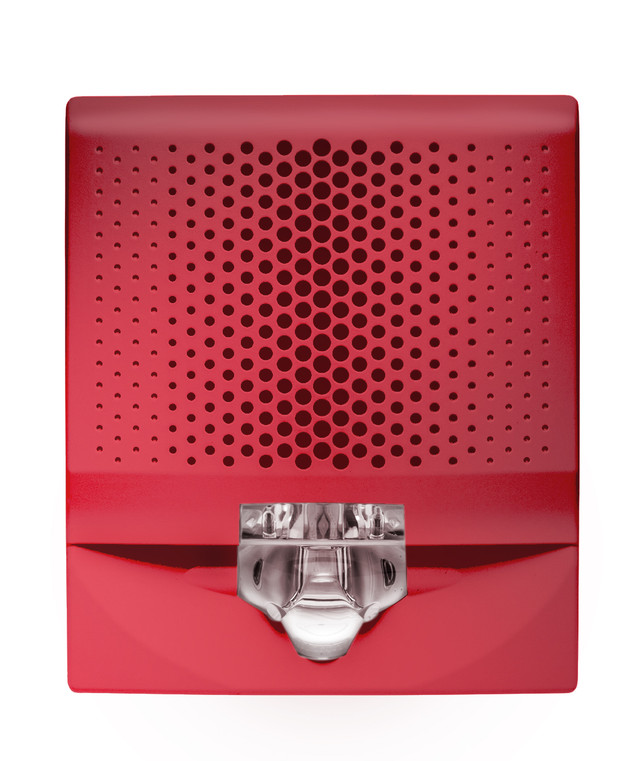

The Genesis LED EG4 Speaker/Strobe mounts on any standard 1-gang, 2-gang, or 4-inch square electrical box and delivers both voice evacuation audio and visual notification from a single compact wall-mount device. Field-selectable candela settings (15, 30, 75, or 110 cd) let you match strobe output to the space without carrying multiple models on the truck.
Built for the commercial fire installer
Part of the Kidde Genesis LED EG4 Series, this speaker/strobe runs on 16-33 VDC or 16-33 VFWR and synchronizes via the Genesis protocol for code-compliant flash coordination across notification zones. UL 1971 listed. Rated for 32-122Ā°F indoor environments at up to 93% noncondensing humidity. The room-side wiring plate ships in the box, keeping wiring access on the install side of the wall where it belongs.
Key features
- Field-selectable 15/30/75/110 cd strobe: one SKU covers multiple candela requirements on the job
- Room-side wiring plate included: clean installs with wiring access from the room side
- Standard electrical box compatible: mounts on 1-gang, 2-gang, 3.5-in octagon, or 4-in square boxes
- Genesis LED synchronization: flash sync across zones for ADA and NFPA 72 compliance
- Low-profile wall-mount form factor: protrudes roughly 1.5 in from the mounting surface
- Red housing, no marking: clean lens for installations where custom labeling is not required
System requirements
Requires a compatible fire alarm control panel (FACP) with notification appliance circuit (NAC) output for the strobe and an audio amplifier circuit for the speaker. Wire with 12-18 AWG conductors. Compatible with Kidde CC Series signal modules, booster and auxiliary power supplies, and Kidde intelligent and conventional fire alarm control panels.
What candela settings are available on the EG4SVRN?
What electrical boxes does this mount on?
Does the room-side wiring plate come included?
What voltage does this speaker/strobe require?
Does this synchronize with other Genesis notification devices?
Is this rated for outdoor use?
Spec Sheet
