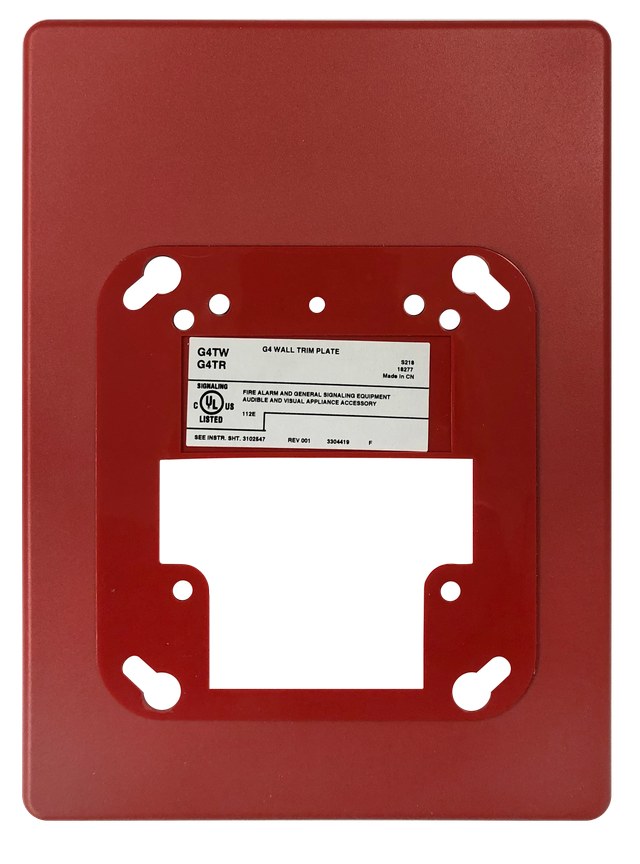

The Kidde EG4TR trim plate gives Genesis LED EG4 Series wall mount installations a finished look on oversized electrical boxes. It covers 1-gang, 2-gang, 3.5-inch octagon, and 4-inch square box openings that would otherwise be visible around the appliance - no extra mud ring, no paint touch-up, no callbacks over cosmetics.
Built for the commercial installer
Color-matched red to the Genesis EG4 Series wall mount horns, strobes, horn-strobes, speakers, and speaker-strobes. UL Listed as a Fire Alarm and General Signaling Equipment accessory. Mounts between the appliance and the wall surface with the same mounting screws - no additional hardware, no added install time.
Why it matters on the job
- Covers oversized box openings: fits 1-gang, 2-gang, 3.5" octagon, and 4" square electrical boxes
- No extra hardware: installs between the EG4 appliance and wall with existing mounting screws
- UL Listed: listed for fire alarm and general signaling equipment applications
- Color-matched red: pairs with all red Genesis LED EG4 Series wall mount notification appliances
Brand:
Kidde Commercial
Form factor:
Wall trim plate
Color:
Red
Dimensions:
5.6 x 7.5 x 0.3 in (14.22 x 19.05 x 0.76 cm)
Compatibility:
Genesis LED EG4 Series wall mount notification appliances (horns, strobes, horn-strobes, speakers, speaker-strobes)
Electrical box compatibility:
1-gang, 2-gang, 3.5" octagon, 4" square
Compliance:
UL Listed (Fire Alarm and General Signaling Equipment, Audible and Visual Appliance Accessory)
Country of origin:
China
What electrical boxes does the EG4TR trim plate cover?
The EG4TR covers 1-gang, 2-gang, 3.5-inch octagon, and 4-inch square electrical box openings. It mounts between the Genesis EG4 wall appliance and the wall surface.
Is a trim plate required for Genesis EG4 wall mount installations?
Not always. If the electrical box opening is fully concealed by the appliance body, a trim plate isn't needed. Use the EG4TR when the box opening is oversized or visible around the appliance edges.
What is the difference between the EG4TR and EG4TW?
Color only. The EG4TR is red, the EG4TW is white. Choose the color that matches the Genesis EG4 Series appliance installed at the location.
Does the EG4TR require additional mounting hardware?
No. The trim plate installs between the appliance and the wall using the same mounting screws that secure the Genesis EG4 appliance. No extra hardware needed.
