  • Kidde | Genesis LED EG4 Wall Mount Fire Alarm Speaker, Red, No Marking, Room-Side Wiring Plate Included | EG4SRN

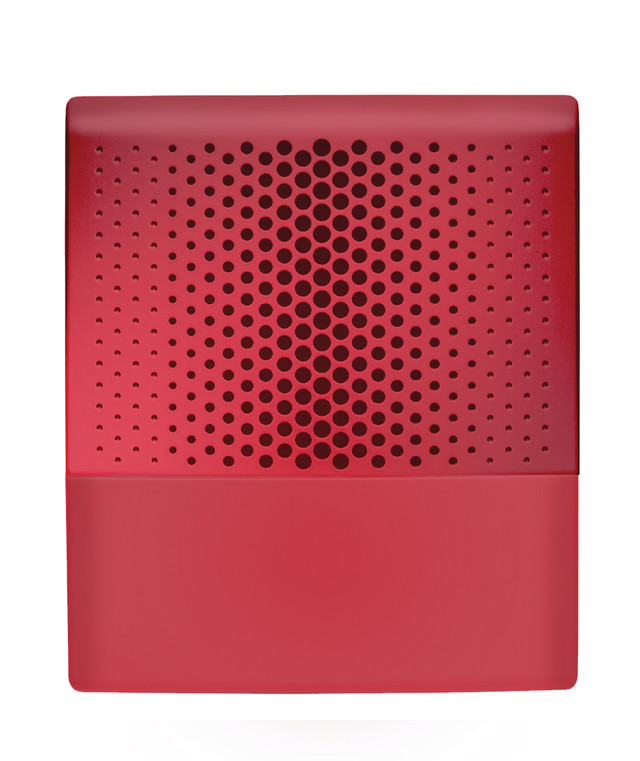

Genesis LED EG4 Wall Mount Fire Alarm Speaker, Red, No Marking, Room-Side Wiring Plate Included
Kidde Commercial

Genesis LED EG4 Wall Mount Fire Alarm Speaker, Red, No Marking, Room-Side Wiring Plate Included

SKU KD-EG4SRN

New to SS&Si? Apply for a dealer account
Share
  • Fast shipping from four branches
  • 30-day returns on unopened products
Questions? Call us 866-364-0030The SS&Si dealer team

The Kidde Genesis LED EG4SRN delivers clear emergency voice audio on commercial fire alarm speaker circuits without dominating wall space. It flush-mounts to a standard 4-inch square electrical box and protrudes no more than one inch from the wall. Red housing with no marking for clean integration into any interior.

Built for the commercial installer

Field-selectable wattage taps are visible and adjustable through a window on the bottom of the device - the speaker does not need to come off the wall to reconfigure. The included room-side wiring plate keeps terminal access on the installer's side for faster service. Screw terminals accept #18 to #12 AWG wire for both long runs and retrofit into existing conduit. A built-in DC blocking capacitor supports supervised audio circuits without external components.

Key features

  • Field-configurable wattage: selectable 1/4W, 1/2W, 1W, or 2W taps, adjustable without removing the device
  • Low-profile wall mount: flush to standard 4-inch square box, no extension ring or trim plate needed
  • Room-side wiring plate included: keeps wiring accessible for installation and service
  • Sealed-back speaker construction: 4-inch mylar cone optimized for voice intelligibility across 400 to 4,000 Hz
  • DC blocking capacitor built in: supports supervised audio circuit operation
  • No visible mounting screws: tab-lock cover for clean finished appearance

System requirements

Connects to a supervised amplifier signal circuit (25 VRMS or 70 VRMS) from a compatible fire alarm control panel or audio distribution system. Compatible with Kidde Genesis signal synchronization modules and booster power supplies for coordinated building-wide notification.

Specifications

SKUKD-EG4SRN
BrandKidde Commercial
Form factorWall mount speaker, Genesis LED EG4 Series
Power input25 VRMS or 70 VRMS supervised audio circuit
Wattage tapsSelectable 1/4W, 1/2W, 1W, or 2W (field-configurable)
Speaker cone4-inch (102mm) mylar, sealed back construction
Frequency response400 to 4,000 Hz
Sound output80 dBA (1/4W) to 89 dBA (2W) at 10 ft, UL 1480
Wire connections#18 to #12 AWG (0.75 to 2.5 mm²) screw terminals
MountingFlush to North-American 4-inch square box, 2-1/8" (54mm) deep
Dimensions6.5 x 5.0 x 1.0 in (165 x 127 x 25 mm)
Operating temp32 to 120°F (0 to 49°C)
Operating humidity0 to 93% noncondensing
HousingRed, UV stabilized, color impregnated engineered plastic, no marking
Weight1.5 lbs (0.68 kg)
Included accessoriesGP10 room-side wiring plate
ComplianceUL/ULC listed (File No. S2813), UL 1480, MEA, CSFM approved

Documents and resources

FAQs

Does this speaker require a separate amplifier?
Yes. The EG4SRN connects to a supervised amplifier signal circuit (25 VRMS or 70 VRMS). It does not generate its own tone - audio is distributed from the fire alarm control panel or a dedicated audio amplifier.
Can I change the wattage tap after installation?
Yes. The wattage setting is visible through a window on the bottom of the device and adjustable by sliding a switch. The speaker does not need to be removed from the wall.
What electrical box does this mount to?
Standard North-American 4-inch square electrical box, 2-1/8 inch (54mm) deep. No extension ring or trim plate required. Optional surface mount box (EG4RB for red) available for surface-mount applications.
Does this include a DC blocking capacitor for circuit supervision?
Yes. All Genesis speakers include a built-in DC blocking capacitor for electrical supervision of the audio distribution circuit.
Is this speaker approved for sleeping room applications?
The standard EG4SRN is not a high-fidelity 520 Hz model. For sleeping areas requiring NFPA 72 low-frequency signaling, specify a Genesis G4HF Series high-fidelity speaker.
