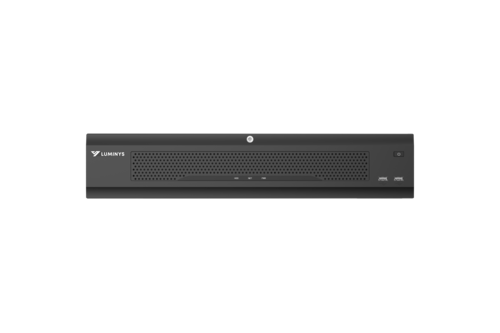

Luminys | R6 Extreme NVR, 32MP 32-Ch Dual NIC, 8SATA, Metadata, LumiSearch+, 64TB | R68-32NA64
SKU LM-R68-32NA64
- Fast shipping from four branches
- 30-day returns on unopened products
The Luminys R68-32NA64 is a 32-channel 8K NVR that ships with 64TB pre-installed across 8 hot-swap SATA bays. Rack it, cable it, and record from day one — no sourcing drives separately, no extra fulfillment step on the job.
Built for high-density commercial deployments
The R6 Extreme line sits at the top of the Luminys NVR stack: 1,400 Mbps recording bandwidth (AI off), up to 32MP camera resolution, and 8K output for large-monitor control rooms. Dual 2.5 Gbps NICs let you run redundant paths or bond bandwidth without additional switching. ONVIF Profiles S, T, G, and M compliant. NDAA Section 889 compliant for federal and state contract eligibility.
Key features
- 64TB pre-installed, hot-swap bays: 8 SATA drives in a drawer-style design — replace a failed drive without taking the recorder offline
- RAID 0, 1, 5, 6, and 10: full redundancy options built in, including RAID 5 for the standard balance between protection and usable capacity
- LumiSearch+: AI-driven person and vehicle search across feeds using a reference image — no pre-enrollment, no cloud dependency
- Analytics by Recorder: face detection, face recognition, iMD, VCA, people counting, and heat map run directly on the NVR, making AI analytics available from any ONVIF camera on the system
- Video Metadata + local fisheye dewarp: structured event data generated alongside the stream, plus in-recorder dewarp for fisheye cameras without a separate server
- Dual 2.5 Gbps NIC: redundant or load-balanced network connectivity for sites that cannot afford a single point of failure at the recorder
System requirements
The R68-32NA64 has no built-in PoE ports — cameras connect through an external PoE switch or midspan injector. Compatible with Luminys IP cameras and ONVIF Profiles S, T, G, M cameras from other vendors. LumiCloud Lite is included for remote access; LumiCloud Unity subscriptions are sold separately. LumiCenter VMS compatible.
Specifications
| SKU | LM-R68-32NA64 |
|---|---|
| Brand | Luminys |
| Form factor | 2U rackmount |
| Channels | 32 |
| Max camera resolution | 32MP |
| Video output | Up to 8K |
| Recording bandwidth | 1,400 Mbps |
| Decoding capacity | 2ch@8K / 8ch@4K / 16ch@4MP |
| Storage installed | 64TB (8x HDDs, pre-installed) |
| SATA bays | 8 (drawer design, hot-swap) |
| Max storage capacity | 160TB |
| RAID support | RAID 0, 1, 5, 6, 10 |
| Hot swap | Yes |
| Network | Dual NIC, 2.5 Gbps each |
| eSATA | Yes |
| USB ports | 4 |
| ONVIF profiles | S, T, G, M |
| Compression | H.265+, H.265, H.264 |
| Analytics | LumiSearch+, Analytics by Recorder, iMD, VCA, Face Detection, Face Recognition, Video Metadata, Local Fisheye Dewarp |
| Cloud | LumiCloud Lite (included); LumiCloud Unity (subscription, sold separately) |
| Compliance | NDAA Section 889 |
