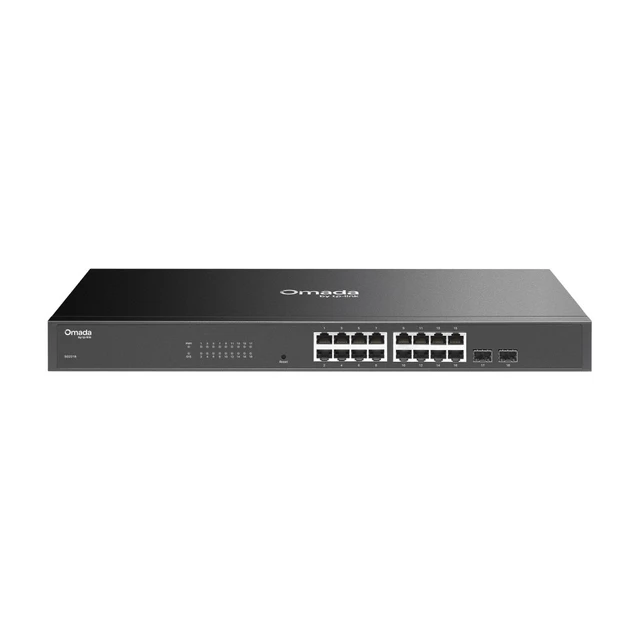

Omada 18-Port Gigabit Smart Switch, 16 RJ45 Ports, 2 Gigabit SFP Slots, 19-Inch Rackmount
SKU TPL-SG2218 Model SG2218
- 16 Gigabit RJ45 ports plus two Gigabit SFP slots for fiber uplinks
- VLANs, ACLs, 802.1X and 32 static routes in a fanless 1U steel case
- Draws 12.2 W max at 110V, with brackets included for a 19-inch rack
- Managed in Omada with zero-touch provisioning, or standalone by web UI and CLI
- Fast shipping from four branches
- 30-day returns on unopened products
Product highlights
- Ports16 x Gigabit, 2 x SFP
- ConnectivitySmart, cloud or standalone
- MountRackmount, fanless
- Size17.3 x 7.1 x 1.7 in
The Omada SG2218 is an 18-port Gigabit Smart switch with 16 RJ45 ports and two SFP slots for a rack that needs VLANs and routing without a managed-switch price. It is fanless, so it stays quiet in a wiring closet or an office rack, and it adopts into the same Omada site as the gateway and APs.
Built for tidy racks and segmented networks
Use 802.1Q VLANs to separate cameras, voice and guest traffic, route between them with static routes and the built-in DHCP server, and lock ports down with 802.1X and ACLs. The two SFP slots take fiber uplinks to the core or another building. A 1U steel case with brackets included mounts in a standard 19-inch rack, with feet in the box for a shelf.
Key features
- 16 Gigabit RJ45 ports and 2 SFP slots: for endpoints, NVRs and fiber uplinks
- VLANs, static routing and ACLs: up to 4K VLAN groups and 32 IPv4/IPv6 static routes
- Fanless 1U steel case: silent in an office rack, mounting brackets included
- Low draw: 12.2 W max at 110V
- Omada management: zero-touch provisioning and batch firmware upgrades through the cloud controller
System requirements
Powered from 100-240V AC with the included power cord. This switch has no PoE output. Centralized management needs an Omada Cloud-Based Controller (firmware 5.15.22 or later), Omada hardware controller or Omada Software Controller (5.15.20 or later); zero-touch provisioning needs the cloud controller. Without a controller the switch runs standalone from its own web interface and CLI.
Specifications
| SKU | TPL-SG2218 |
|---|---|
| Brand | TP-Link |
| Form factor | 18-port Gigabit Smart switch with SFP slots, 19-inch rackmount |
| Communication | Ethernet / IP |
| Power input | 100-240V AC, 50/60 Hz |
| Power consumption | 12.2 W max at 110V |
| Management | Smart |
| Port speed | Gigabit |
| Works with | Omada |
| Ethernet ports | 16 x Gigabit RJ45 |
| SFP slots | 2 x Gigabit SFP |
| Switching capacity | 36 Gbps |
| Packet forwarding rate | 26.78 Mpps |
| MAC address table | 8K |
| Jumbo frame | 9 KB |
| VLANs | 4K 802.1Q VLAN groups, MAC, protocol and voice VLAN, GVRP |
| L2+ features | 32 IPv4/IPv6 static routes, DHCP server and relay, link aggregation with LACP, STP/RSTP/MSTP, loopback detection |
| Security | 802.1X, RADIUS AAA, ACLs, DHCP snooping, ARP inspection, port security, storm control |
| Controller management | Omada Cloud-Based (v5.15.22+), hardware or Software Controller (v5.15.20+); Omada app |
| Communication notes | Web GUI, CLI through Telnet, SNMP v1/v2c/v3, RMON, LLDP/LLDP-MED, IGMP snooping, IPv6 |
| Cooling | Fanless |
| Surge protection | ±6 kV |
| Mounting | Rackmount (mounting brackets and feet included) |
| Dimensions | 17.3 x 7.1 x 1.7 in (440 x 180 x 44 mm) |
| Operating temp | 23°F to 113°F (-5°C to 45°C) |
| Operating humidity | 10 to 90% RH, non-condensing |
| Compliance | FCC, CE |
| Package contents | SG2218, power cord, mounting brackets, mounting feet, screws, installation guide |
