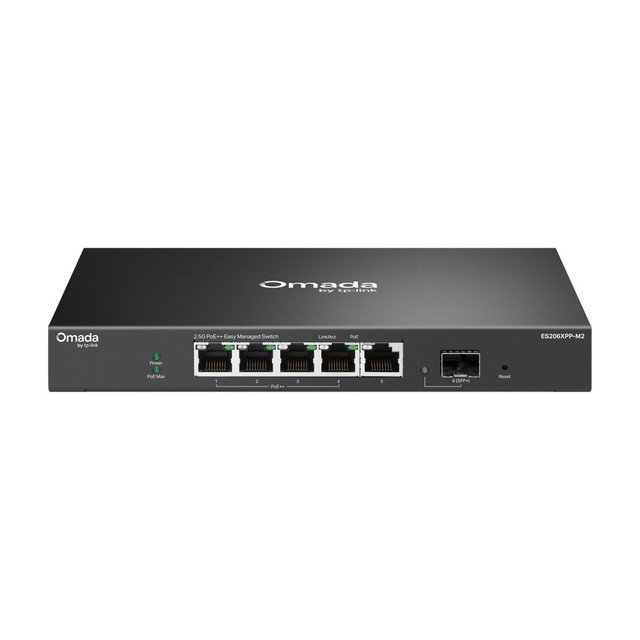

Omada 5-Port 2.5G Easy Managed PoE++ Switch, 4 PoE++ Ports, 120 W, 10G SFP+ Slot
SKU TPL-ES206XPP-M2 Model ES206XPP-M2
- 5 x 2.5G ports, four of them 802.3bt PoE++ at up to 90 W from a 120 W budget
- 10G SFP+ uplink and 45 Gbps switching capacity for multi-gig devices
- Fast PoE and Perpetual PoE keep powered devices up through a reboot
- Fanless metal case, adopts into Omada or runs standalone by web GUI
- Fast shipping from four branches
- 30-day returns on unopened products
Product highlights
- Ports5 x 2.5G, 4 with PoE++
- PoE120 W, 802.3af/at/bt
- Connectivity10G SFP+ uplink
- MountDesktop or wall
- Size8.2 x 5.0 x 1.0 in
The Omada ES206XPP-M2 is a 5-port 2.5G Easy Managed switch with four 802.3bt PoE++ ports and a 120 W budget, built for multi-gig access points and high-power PoE devices that need more than PoE+ can supply. A 10G SFP+ slot handles the uplink.
Built for high-power PoE and multi-gig devices
Four 2.5G ports deliver 802.3af, at or bt PoE at up to 90 W each from the 120 W budget, and the fifth 2.5G port is data only. Fast PoE and Perpetual PoE keep powered devices up through a switch reboot. The SFP+ slot gives a 10G fiber uplink, and the fanless metal case sits on a desk or mounts on a wall.
Key features
- 4 PoE++ ports, 120 W total: 802.3af/at/bt at up to 90 W per port for high-power cameras and APs
- 5 x 2.5G RJ45 ports: auto-negotiate 100M, 1G and 2.5G, so existing devices still connect
- 10G SFP+ slot: a fiber uplink to a core switch or server
- Fast PoE and Perpetual PoE: devices power up early and stay powered through a switch reboot
- Fanless metal case: silent in use, desktop or wall mount, with a physical security lock slot
System requirements
Uses the included 53.5V DC external power adapter. Powered devices must be 802.3af, 802.3at or 802.3bt compliant. The SFP+ slot needs a separate 10G SFP+ module. Centralized management needs an Omada Cloud-Based, Hardware or Software Controller; zero-touch provisioning needs the cloud controller. Without a controller the switch runs standalone from its web interface.
Specifications
| SKU | TPL-ES206XPP-M2 |
|---|---|
| Brand | TP-Link |
| Form factor | 5-port 2.5G Easy Managed PoE++ switch with 10G SFP+ uplink, desktop or wall mount |
| Communication | Ethernet / IP |
| Power input | External adapter, 53.5V DC / 2.43A (included) |
| Power consumption | 141.4 W max at 110V with 120 W of PoE load |
| Management | Easy Managed |
| PoE | 802.3af PoE |
| PoE | 802.3at PoE+ |
| PoE | 802.3bt PoE++ |
| Port speed | 2.5G |
| Port speed | 10G |
| Works with | Omada |
| Ethernet ports | 5 x 2.5G RJ45 (4 PoE++, 1 data only) |
| SFP slots | 1 x 10G SFP+ |
| PoE budget | 120 W total, 90 W max per port |
| PoE features | Fast PoE, Perpetual PoE, PoE Auto Recovery (standalone mode) |
| Switching capacity | 45 Gbps |
| Packet forwarding rate | 33.48 Mpps |
| MAC address table | 16K |
| Jumbo frame | 10 KB |
| VLANs | 802.1Q tag VLAN, up to 32 VLAN groups (4K VID), MTU VLAN, port-based VLAN |
| L2 features | Static link aggregation (up to 2 groups, 4 ports per group), loopback detection, 802.3x flow control, port mirroring (one-to-one, many-to-one), port statistics, LLDP |
| Security | Port isolation, storm control (broadcast, multicast, unknown unicast), physical security lock slot |
| Controller management | Omada Cloud-Based, Hardware and Software Controller; Omada app |
| Communication notes | Web GUI, DHCP client, cable diagnostics, LLDP, IGMP v1/v2/v3 snooping with fast leave, port-based/802.1p/DSCP QoS with 8 queues and WRR |
| Cooling | Fanless |
| Surge protection | ±6 kV common mode on Ethernet ports |
| Mounting | Desktop or wall mount |
| Dimensions | 8.2 x 5.0 x 1.0 in (209 x 126 x 26 mm) |
| Operating temp | 23°F to 104°F (-5°C to 40°C) |
| Operating humidity | 10 to 90% RH, non-condensing |
| Compliance | FCC, CE |
| Package contents | ES206XPP-M2, power adapter, power cord, mounting feet, installation guide |
