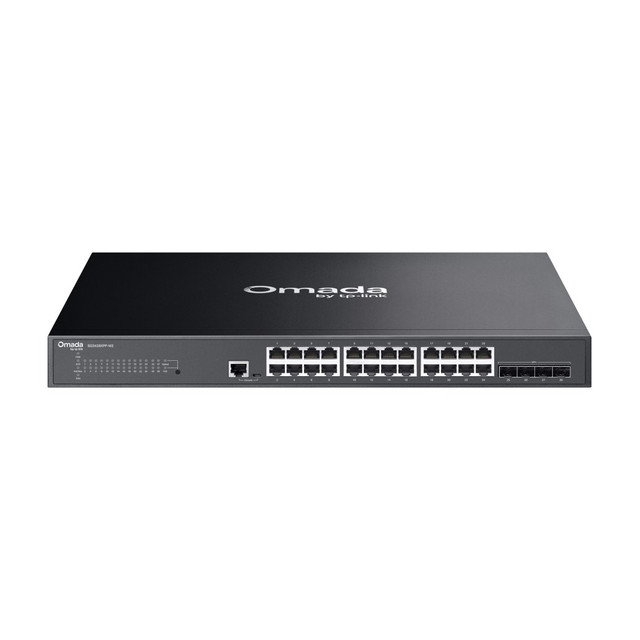

Omada 28-Port 2.5G L2+ Managed Switch, 24 PoE++ Ports, 770 W, 4 x 10G SFP+ Slots
SKU TPL-SG3428XPP-M2 Model SG3428XPP-M2
- 24 2.5G PoE++ ports with a 770 W budget and up to 90 W per port
- 4 10G SFP+ slots for uplinks and 200 Gbps of switching capacity
- L2+ static routing, VLANs, ACLs, 802.1X and ERPS ring recovery
- Managed in Omada with zero-touch provisioning, or standalone by web UI and CLI
- Fast shipping from four branches
- 30-day returns on unopened products
Product highlights
- Ports24 x 2.5G PoE++, 4 x 10G SFP+
- PoE770 W, up to 90 W per port
- ConnectivityL2+ managed, cloud or standalone
- Mount19-inch rack
- Size17.3 x 13.0 x 1.7 in
The Omada SG3428XPP-M2 is a 28-port 2.5G L2+ managed switch where all 24 RJ45 ports are 802.3bt PoE++ at up to 90 W, sharing a 770 W budget, built for dense multi-gig AP and high-draw device deployments. Four 10G SFP+ slots carry the uplinks.
Built for dense multi-gig PoE++ deployments
Every RJ45 port delivers up to 90 W and runs up to 2.5 Gbps, so multi-gig APs, PTZ cameras and other heavy loads get power and speed on one cable. Perpetual PoE keeps cameras powered through a switch reboot and Fast PoE brings them up before the switch finishes booting. TP-Link notes the switch is incompatible with passive PoE and other non-standard PoE devices, so check the load before you mount it. It manages in the same Omada site as the gateway and APs, in a 19-inch rack.
Key features
- 770 W across 24 PoE++ ports: up to 90 W per port for PTZs, outdoor APs and heavy loads
- 2.5G on every PoE port for multi-gig Wi-Fi access points
- Perpetual and Fast PoE: devices stay powered through a switch reboot and power up early on a cold start
- Four 10G SFP+ slots and 200 Gbps switching capacity
- L2+ features: static routing, DHCP server, VLANs, ACLs and ERPS ring recovery
System requirements
Centralized management needs an Omada Cloud-Based Controller (firmware 5.15.22 or later), Omada hardware controller or Omada Software Controller (5.15.20 or later); zero-touch provisioning needs the cloud controller. Without a controller the switch runs standalone from its own web interface and CLI. Powered devices must be 802.3af, 802.3at or 802.3bt compliant; passive PoE is not supported.
Specifications
| SKU | TPL-SG3428XPP-M2 |
|---|---|
| Brand | TP-Link |
| Form factor | 28-port 2.5G L2+ managed PoE++ switch with 10G SFP+ uplinks, rackmount |
| Communication | Ethernet / IP |
| Power input | 100-240V AC, 50/60 Hz |
| Power consumption | 946.8 W max at 220V, 900.2 W max at 110V with 770 W of PoE load |
| Management | L2+ Managed |
| PoE | 802.3af PoE |
| PoE | 802.3at PoE+ |
| PoE | 802.3bt PoE++ |
| Port speed | 2.5G |
| Port speed | 10G |
| Works with | Omada |
| Ethernet ports | 24 x 2.5G RJ45 PoE++ |
| SFP slots | 4 x 10G SFP+ |
| Console ports | 1 x RJ45, 1 x Micro-USB |
| PoE budget | 770 W total, up to 90 W per port |
| PoE features | Perpetual PoE, Fast PoE, PoE extend mode; no passive PoE |
| Switching capacity | 200 Gbps |
| Packet forwarding rate | 148.80 Mpps |
| MAC address table | 32K |
| Jumbo frame | 9 KB |
| VLANs | 4K 802.1Q VLANs, MAC, protocol and voice VLAN, VLAN mapping and replace |
| L2+ features | 48 IPv4/IPv6 static routes, DHCP server and relay, link aggregation, STP, ERPS, loopback detection |
| Security | 802.1X, RADIUS and TACACS+ AAA, ACLs, DHCP snooping, ARP inspection, port security, storm control |
| Controller management | Omada Cloud-Based (v5.15.22+), hardware or Software Controller (v5.15.20+); Omada app |
| Communication notes | Web GUI, CLI via console and Telnet, SNMP v1/v2c/v3, RMON, LLDP, sFlow, IPv6 |
| Cooling | 3 fans; typical 44.6 dBA at 1 m (616 W PoE load, 77°F/25°C) |
| Surge protection | 6 kV |
| Mounting | 19-inch rack (rackmount kit and rubber feet included) |
| Dimensions | 17.3 x 13.0 x 1.7 in (440 x 330 x 44 mm) |
| Operating temp | 23°F to 113°F (-5°C to 45°C) |
| Operating humidity | 10 to 90% RH, non-condensing |
| Compliance | FCC, CE |
| Package contents | SG3428XPP-M2, power cord, RJ45 console cable, installation guide, rackmount kit, rubber feet, screws |
