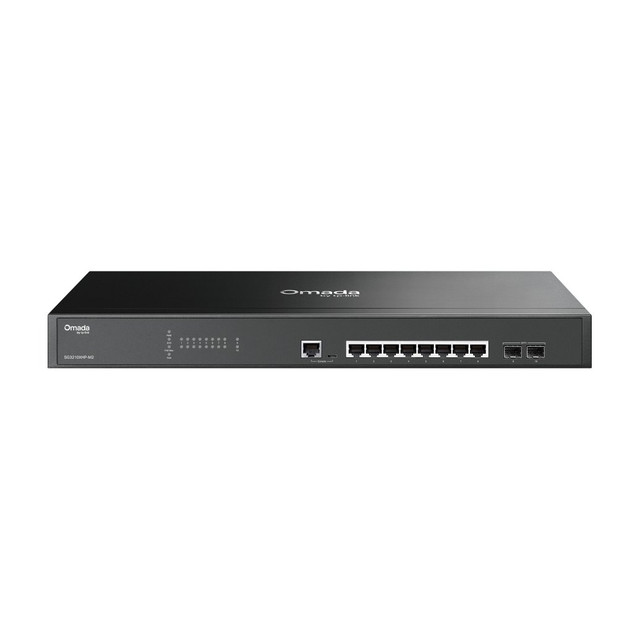

Omada 8-Port 2.5G L2+ Managed PoE+ Switch, 8 PoE+ Ports, 240 W, 2 x 10G SFP+ Slots
SKU TPL-SG3210XHP-M2 Model SG3210XHP-M2
- 8 2.5G PoE+ ports with a 240 W budget and up to 30 W per port
- 2 10G SFP+ slots for uplinks to the core switch or a server rack
- L2+ static routing, VLANs, ACLs, 802.1X and ERPS ring recovery
- Managed in Omada with zero-touch provisioning, or standalone by web UI and CLI
- Fast shipping from four branches
- 30-day returns on unopened products
Product highlights
- Ports8 x 2.5G PoE+, 2 x 10G SFP+
- PoE240 W, 30 W per port
- ConnectivityL2+ managed, cloud or standalone
- Mount19-inch rack
- Size17.3 x 7.1 x 1.7 in
The Omada SG3210XHP-M2 is an 8-port 2.5G L2+ managed PoE+ switch with a 240 W budget and two 10G SFP+ slots, made for jobs where multi-gig access points and cameras need power and speed from one rack-mount box. It manages in the same Omada site as the gateway and APs.
Built for multi-gig AP and camera deployments
All eight RJ45 ports are 802.3af/at PoE+ at up to 30 W and run up to 2.5 Gbps, so an AP gets power and a multi-gig link on one cable. The two SFP+ slots carry 10G uplinks. Perpetual PoE keeps cameras powered through a switch reboot and Fast PoE brings them up before the switch finishes booting. The switch has two fans that stay off at lighter PoE loads, and mounts in a 19-inch rack.
Key features
- 240 W across eight PoE+ ports: up to 30 W per port for APs, PTZs and phones
- 2.5G on every PoE port for multi-gig Wi-Fi access points
- Two 10G SFP+ slots for uplinks to the core or a server
- Perpetual and Fast PoE: devices stay powered through a switch reboot and power up early on a cold start
- L2+ features: static routing, DHCP server, VLANs, ACLs and ERPS ring recovery
System requirements
Centralized management needs an Omada Cloud-Based Controller (firmware 5.15.22 or later), Omada hardware controller or Omada Software Controller (5.15.20 or later); zero-touch provisioning needs the cloud controller. Without a controller the switch runs standalone from its own web interface and CLI. Powered devices must be 802.3af or 802.3at compliant.
Specifications
| SKU | TPL-SG3210XHP-M2 |
|---|---|
| Brand | TP-Link |
| Form factor | 8-port 2.5G L2+ managed PoE+ switch, 2 x 10G SFP+, rackmount |
| Communication | Ethernet / IP |
| Power input | 100-240V AC, 50/60 Hz |
| Power consumption | 284.3 W max at 110V with 240 W of PoE load |
| Management | L2+ Managed |
| PoE | 802.3af PoE |
| PoE | 802.3at PoE+ |
| Port speed | 2.5G |
| Port speed | 10G |
| Works with | Omada |
| Ethernet ports | 8 x 2.5G RJ45 PoE+ |
| SFP slots | 2 x 10G SFP+ |
| Console ports | 1 x RJ45, 1 x Micro-USB |
| PoE budget | 240 W total, up to 30 W per port |
| PoE features | Perpetual PoE, Fast PoE, PoE extend mode |
| Switching capacity | 80 Gbps |
| Packet forwarding rate | 59.52 Mpps |
| MAC address table | 16K |
| Jumbo frame | 9 KB |
| VLANs | 4K 802.1Q VLANs, MAC, protocol and voice VLAN, VLAN mapping and replace |
| L2+ features | 48 IPv4/IPv6 static routes, DHCP server and relay, link aggregation, STP, ERPS, loopback detection |
| Security | 802.1X, RADIUS and TACACS+ AAA, ACLs, DHCP snooping, ARP inspection, port security, storm control |
| Controller management | Omada Cloud-Based (v5.15.22+), hardware or Software Controller (v5.15.20+); Omada app |
| Communication notes | Web GUI, CLI via console and Telnet, SNMP v1/v2c/v3, RMON, LLDP, sFlow, IPv6 |
| Cooling | 2 fans; fanless mode below 210 W PoE load at 77°F (25°C) ambient |
| Surge protection | 6 kV |
| Mounting | 19-inch rack (rackmount kit and rubber feet included) |
| Dimensions | 17.3 x 7.1 x 1.7 in (440 x 180 x 44 mm) |
| Operating temp | 23°F to 122°F (-5°C to 50°C) |
| Operating humidity | 10 to 90% RH, non-condensing |
| Compliance | FCC, CE |
| Package contents | SG3210XHP-M2, power cord, RJ45 console cable, rackmount kit, rubber feet, screws, installation guide |
