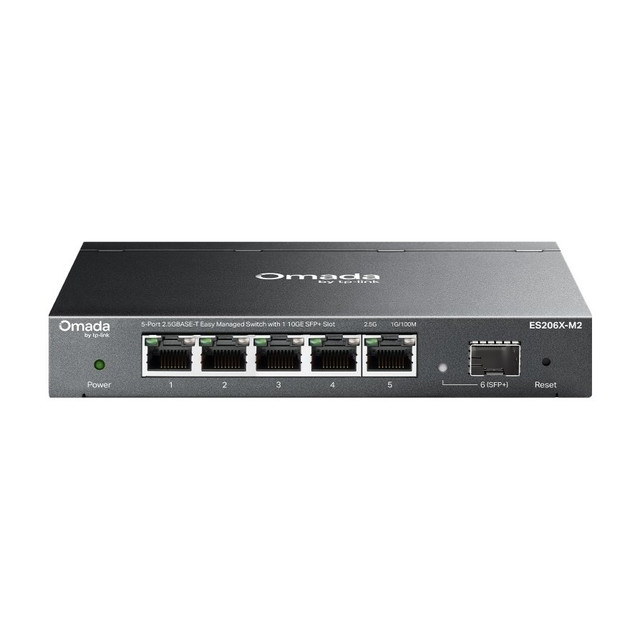

Omada 5-Port 2.5G Easy Managed Switch with 1 x 10G SFP+ Slot, Fanless, Desktop or Wall Mount
SKU TPL-ES206X-M2 Model ES206X-M2
- 5 x 2.5G RJ45 ports plus a 10G SFP+ uplink at 45 Gbps switching capacity
- 802.1Q, MTU and port-based VLANs with IGMP snooping for multi-gig devices
- Fanless metal case, desktop or wall mount, with a security lock slot
- Adopts into Omada with zero-touch provisioning, or runs standalone by web GUI
- Fast shipping from four branches
- 30-day returns on unopened products
Product highlights
- Ports5 x 2.5G, 1 x 10G SFP+
- Connectivity2.5G RJ45, 10G fiber
- MountDesktop or wall
- Size6.2 x 4.0 x 1.0 in
The Omada ES206X-M2 is a 5-port 2.5G Easy Managed switch with a 10G SFP+ slot, a way to give multi-gig access points, NAS boxes and workstations a faster path without a rack or a fan. It adopts into the same Omada site as the gateway and APs.
Built for multi-gig devices and fast uplinks
Five RJ45 ports negotiate 100 Mbps, 1 Gbps or 2.5 Gbps, and the SFP+ slot gives a 10G fiber uplink. 802.1Q, MTU and port-based VLANs, IGMP snooping and loop prevention are built in. The fanless metal case sits on a desk or mounts on a wall.
Key features
- 5 x 2.5G RJ45 ports: auto-negotiate 100M, 1G and 2.5G, so existing Gigabit devices still connect
- 10G SFP+ slot: a fiber uplink to a core switch or server
- VLANs and IGMP snooping: 802.1Q tagging with up to 32 groups, plus MTU and port-based VLANs
- 45 Gbps switching capacity: covers all five 2.5G ports and the 10G uplink at wire speed
- Fanless metal case: silent in use, desktop or wall mount, with a physical security lock slot
System requirements
Uses the included 12V DC external power adapter. The SFP+ slot needs a separate 10G SFP+ module. Centralized management needs an Omada Cloud-Based, Hardware or Software Controller; zero-touch provisioning needs the cloud controller. Without a controller the switch runs standalone from its web interface.
Specifications
| SKU | TPL-ES206X-M2 |
|---|---|
| Brand | TP-Link |
| Form factor | 5-port 2.5G Easy Managed switch with 10G SFP+ uplink, desktop or wall mount |
| Communication | Ethernet / IP |
| Power input | External adapter, 12V DC / 1A (included) |
| Power consumption | 5.63 W max at 110V |
| Management | Easy Managed |
| Port speed | 2.5G |
| Port speed | 10G |
| Works with | Omada |
| Ethernet ports | 5 x 2.5G RJ45 (100M/1G/2.5G) |
| SFP slots | 1 x 10G SFP+ |
| Switching capacity | 45 Gbps |
| Packet forwarding rate | 33.48 Mpps |
| MAC address table | 16K |
| Jumbo frame | 10 KB |
| VLANs | 802.1Q tag VLAN, up to 32 VLAN groups (4K VID), MTU VLAN, port-based VLAN |
| L2 features | Static link aggregation (up to 2 groups, 4 ports per group), loopback detection, 802.3x flow control, port mirroring (one-to-one, many-to-one), port statistics, LLDP |
| Security | Port isolation, storm control (broadcast, multicast, unknown unicast), physical security lock slot |
| Controller management | Omada Cloud-Based, Hardware and Software Controller; Omada app |
| Communication notes | Web GUI, DHCP client, cable diagnostics, LLDP, IGMP v1/v2/v3 snooping with fast leave, port-based/802.1p/DSCP QoS with 8 queues and WRR |
| Cooling | Fanless |
| Surge protection | ±6 kV common mode on Ethernet ports |
| Mounting | Desktop or wall mount |
| Dimensions | 6.2 x 4.0 x 1.0 in (158 x 100.7 x 25.4 mm) |
| Operating temp | 23°F to 104°F (-5°C to 40°C) |
| Operating humidity | 10 to 90% RH, non-condensing |
| Compliance | FCC, CE |
| Package contents | ES206X-M2, power adapter, rubber feet, installation guide |
