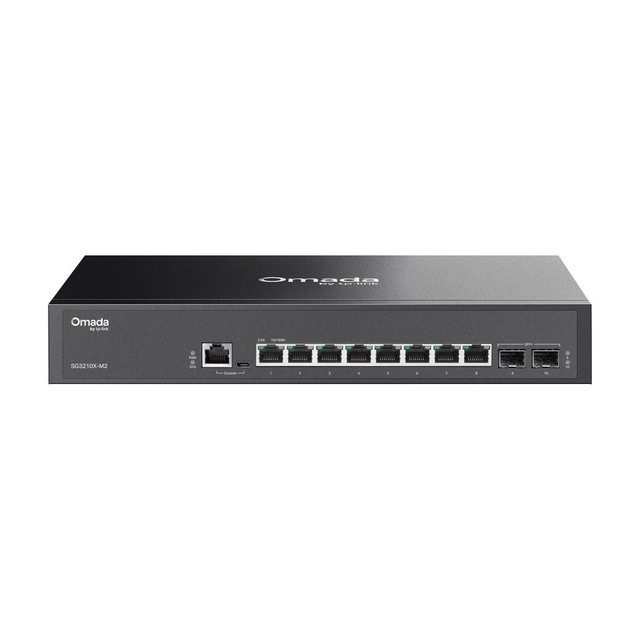

Omada 8-Port 2.5G L2+ Managed Switch with 2 x 10G SFP+ Slots, Fanless, Rack or Desktop
SKU TPL-SG3210X-M2 Model SG3210X-M2
- 8 2.5G RJ45 ports and 2 10G SFP+ slots for multi-gig AP uplinks
- 80 Gbps of switching capacity keeps every 2.5G port at line rate
- L2+ static routing, VLANs, ACLs, 802.1X and ERPS in a fanless case
- Managed in Omada with zero-touch provisioning, or standalone by web UI and CLI
- Fast shipping from four branches
- 30-day returns on unopened products
Product highlights
- Ports8 x 2.5G, 2 x 10G SFP+
- ConnectivityL2+ managed, cloud or standalone
- PowerFanless, 15.3 W max
- MountRack or desktop
- Size11.6 x 7.1 x 1.7 in
The Omada SG3210X-M2 is an 8-port 2.5G L2+ managed switch with two 10G SFP+ slots, sized to feed multi-gig Wi-Fi access points at full speed and hand traffic upstream over 10G. It is fanless and manages in the same Omada site as the gateway and APs.
Built for multi-gig AP and workstation uplinks
Eight 2.5G RJ45 ports reach 2.5 Gbps over existing Cat5e, and two 10G SFP+ slots carry the uplink to the core or a server. With 80 Gbps of switching capacity the ports run at line rate. Static routing, 802.1Q VLANs, ACLs, 802.1X and IGMP snooping cover segmented networks. The metal case has no fan and mounts in a rack or on a desk.
Key features
- Eight 2.5G ports and two 10G SFP+ slots: multi-gig access with a 10G uplink
- 80 Gbps switching capacity so every port runs at line rate
- Fanless metal case: silent, rack or desktop mount
- L2+ features: static routing, DHCP server, VLANs, ACLs and ERPS ring recovery
- Zero-touch provisioning and batch firmware upgrades through the Omada Cloud-Based Controller
System requirements
Centralized management needs an Omada Cloud-Based Controller (firmware 5.15.22 or later), Omada hardware controller or Omada Software Controller (5.15.20 or later); zero-touch provisioning needs the cloud controller. Without a controller the switch runs standalone from its own web interface and CLI.
Specifications
| SKU | TPL-SG3210X-M2 |
|---|---|
| Brand | TP-Link |
| Form factor | 8-port 2.5G L2+ managed switch with 10G SFP+ uplinks, fanless |
| Communication | Ethernet / IP |
| Power input | 100-240V AC, 50/60 Hz |
| Power consumption | 15.3 W max at 220V, 15.0 W max at 110V |
| Management | L2+ Managed |
| Port speed | 2.5G |
| Port speed | 10G |
| Works with | Omada |
| Ethernet ports | 8 x 2.5G RJ45 |
| SFP slots | 2 x 10G SFP+ |
| Console ports | 1 x RJ45, 1 x Micro-USB |
| Switching capacity | 80 Gbps |
| Packet forwarding rate | 59.52 Mpps |
| MAC address table | 16K |
| Jumbo frame | 9 KB |
| VLANs | 4K 802.1Q VLANs, MAC, protocol and voice VLAN, VLAN mapping and replace |
| L2+ features | 48 IPv4/IPv6 static routes, DHCP server and relay, link aggregation, STP, ERPS, loopback detection |
| Security | 802.1X, RADIUS and TACACS+ AAA, ACLs, DHCP snooping, ARP inspection, port security, storm control |
| Controller management | Omada Cloud-Based (v5.15.22+), hardware or Software Controller (v5.15.20+); Omada app |
| Communication notes | Web GUI, CLI via console and Telnet, SNMP v1/v2c/v3, RMON, LLDP, sFlow, IPv6 |
| Cooling | Fanless |
| Mounting | Rack or desktop (rackmount kit included) |
| Dimensions | 11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm) |
| Operating temp | 23°F to 122°F (-5°C to 50°C) |
| Operating humidity | 10 to 90% RH, non-condensing |
| Compliance | FCC, CE |
| Package contents | SG3210X-M2, power cord, RJ45 console cable, rackmount kit, rubber feet, screws, installation guide |
