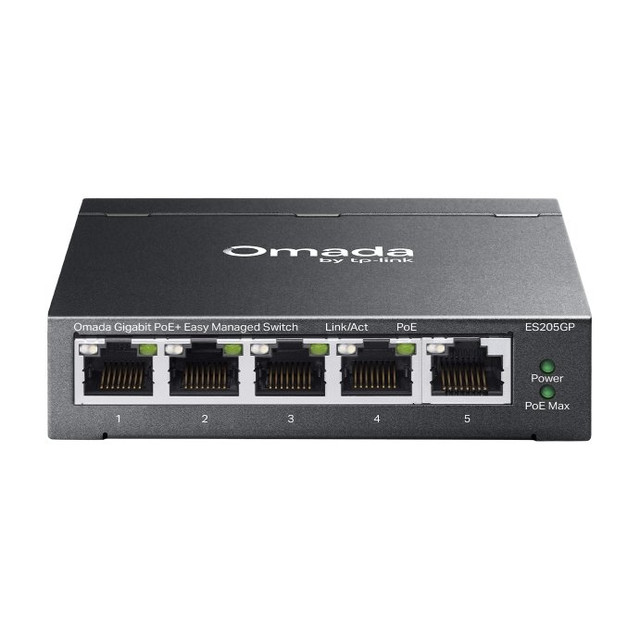

Omada 5-Port Gigabit Easy Managed PoE+ Switch, 4 PoE+ Ports, 65 W, Desktop or Wall Mount
SKU TPL-ES205GP Model ES205GP
- 5 Gigabit ports, four of them 802.3af/at PoE+ from a 65 W budget
- Fast PoE and Perpetual PoE keep cameras up through a switch reboot
- PoE reach to 250 m, VLANs and port isolation in a fanless metal case
- Adopts into Omada with zero-touch provisioning, or runs standalone by web GUI
- Fast shipping from four branches
- 30-day returns on unopened products
Product highlights
- Ports5 x Gigabit, 4 with PoE+
- PoE65 W, 802.3af/at
- RangePoE to 250 m
- MountDesktop or wall
- Size3.9 x 3.9 x 1.0 in
The Omada ES205GP is a 5-port Gigabit Easy Managed switch with four PoE+ ports and a 65 W budget, sized for a small job with a camera or two and an access point. It adopts into the same Omada site as the gateway and APs, with 802.1Q VLANs to keep camera traffic apart.
Built for small camera and wireless jobs
Four ports deliver 802.3af/at PoE+ at up to 30 W each from the 65 W budget, and the fifth port is data only. Fast PoE and Perpetual PoE keep powered devices up through a switch reboot, and PoE reach extends to 250 m at a reduced 10 Mbps link for a camera past the normal 100 m limit. The fanless metal case sits on a desk or mounts on a wall.
Key features
- 4 PoE+ ports, 65 W total: 802.3af/at at up to 30 W per port for cameras, APs and phones
- Fast PoE and Perpetual PoE: devices power up early and stay powered through a switch reboot
- PoE reach to 250 m: long camera runs at a reduced 10 Mbps link speed
- PoE Auto Recovery: restarts a frozen powered device in standalone mode, IntelliRecover does it from the controller
- Fanless metal case: silent in use, desktop or wall mount, with a physical security lock slot
System requirements
Uses the included 53.5V DC external power adapter. Powered devices must be 802.3af or 802.3at compliant. Centralized management needs an Omada Cloud-Based, Hardware or Software Controller on built-in version 6.1.0 or later; zero-touch provisioning needs the cloud controller. Without a controller the switch runs standalone from its web interface.
Specifications
| SKU | TPL-ES205GP |
|---|---|
| Brand | TP-Link |
| Form factor | 5-port Gigabit Easy Managed PoE+ switch, desktop or wall mount |
| Communication | Ethernet / IP |
| Power input | External adapter, 53.5V DC / 1.31A (included) |
| Power consumption | 72.7 W max at 220V with 65 W of PoE load |
| Management | Easy Managed |
| PoE | 802.3af PoE |
| PoE | 802.3at PoE+ |
| Port speed | Gigabit |
| Works with | Omada |
| Ethernet ports | 5 x Gigabit RJ45 (4 PoE+, 1 data only) |
| PoE budget | 65 W total, 30 W max per port |
| PoE features | Fast PoE, Perpetual PoE, PoE Auto Recovery (standalone mode), IntelliRecover (controller mode), up to 250 m PoE reach (link drops to 10 Mbps) |
| Switching capacity | 10 Gbps |
| Packet forwarding rate | 7.4 Mpps |
| MAC address table | 8K |
| Jumbo frame | 15 KB |
| VLANs | 802.1Q tag VLAN, up to 32 VLAN groups (4K VID) |
| L2 features | Static link aggregation (up to 2 groups, 4 ports per group), loopback detection, 802.3x flow control, port mirroring (one-to-one, many-to-one), port statistics, LLDP, 802.3az EEE |
| Security | Port isolation, storm control (broadcast, multicast, unknown unicast), physical security lock slot |
| Controller management | Omada Cloud-Based, Hardware and Software Controller (built-in version 6.1.0 or later); Omada app |
| Communication notes | Web GUI, DHCP client, cable diagnostics, LLDP, IGMP v1/v2/v3 snooping with fast leave, port-based/802.1p/DSCP QoS with 8 queues and WRR, ONVIF in controller mode |
| Cooling | Fanless |
| Surge protection | ±6 kV common mode on Ethernet ports |
| Mounting | Desktop or wall mount |
| Dimensions | 3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm) |
| Operating temp | 23°F to 104°F (-5°C to 40°C) |
| Operating humidity | 10 to 90% RH, non-condensing |
| Compliance | FCC, CE |
| Package contents | ES205GP, power adapter, power cord, mounting feet, installation guide |
