Aero X1100 Four Door Controller and Power Kit, Pre-Wired and Enclosed
Alarm.com

Aero X1100 Four Door Controller and Power Kit, Pre-Wired and Enclosed

SKU ADC-AC-X1100-4PSE Model ADC-AC-X1100-4PSE

New to SS&Si? Apply for a dealer account
Share
  • Free logo branding available
  • Fast shipping from four branches
  • 30-day returns on unopened products
Questions? Call us 866-364-0030The SS&Si dealer team

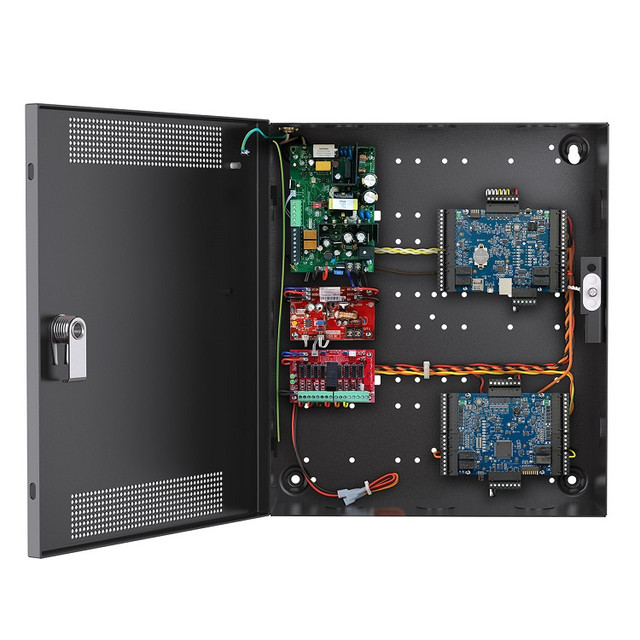

Four doors, one enclosure, nothing to assemble. The kit ships an X1100 controller and an X100 Two Reader Expansion Module already wired to a dual-voltage 12/24 VDC supply in a 20 by 16 inch can, giving four reader inputs, eight relay outputs and eight programmable inputs off a single network drop.

Built for the commercial installer

This is the configuration most small commercial jobs actually need, and buying it assembled removes the bench work along with the risk of getting the power chain wrong. The supply feeds an F8P distribution module at 2A Class II power limited, so door hardware comes off protected legs rather than a shared terminal strip, and there is a 1.5A Class II auxiliary output on top of that.

Unlike the two door kit, this enclosure has room to grow. An additional X100, X200 or X300 can be mounted inside, though the added expansion has to be wired for power and communication rather than arriving pre-wired. Keep the FPV4 supply set to 24 VDC: dropping it to 12V leaves the B100 and the F8 distribution module without the second voltage rail.

Key features

  • Controller and expansion arrive pre-wired to the supply, so four doors are ready to terminate out of the box
  • Room for one more expansion module inside the enclosure, which the two door kit does not offer
  • F8P distributed outputs at 2A Class II so door hardware sits on protected legs
  • UL294, UL603 and UL1076 listed with ULC and CSA for commercial openings
  • Selectable battery charge current at 0.7 or 1.60A to match the battery set

System requirements

Requires 120, 208 or 230 VAC at 50/60 Hz, an Ethernet connection, and an active Alarm.com for Business account with Smarter Access Control. Backup batteries are not included. Keep the FPV4 supply configured for 24 VDC output.

Specifications

SKUADC-AC-X1100-4PSE
BrandAlarm.com
Form factorPre-wired controller, expansion and power supply kit in enclosure
Doors supportedComplete 3 or 4 door system
Kit contentsX1100 Door Controller and X100 Two Reader Expansion Module pre-wired to a 12/24 VDC dual-voltage power supply
Power input120 / 208 / 230 VAC, 50/60 Hz
Main outputs2A at 12 VDC and 2A at 24 VDC
Auxiliary output1.5 A Class II power limited
Distributed outputsF8P distributed outputs, 2 A Class II power limited
Battery charge current0.7 or 1.60A selectable
Controller power input12 to 24 VDC +/-10%, 550 mA max excluding reader voltage
Reader power12 VDC +/-10%, 500 mA max per reader
InputsFour reader inputs and eight programmable inputs across controller and expansion
OutputsEight relay outputs across controller and expansion
Enclosure dimensions20 x 16 x 4.5 in (50.8 x 40.64 x 11.43 cm)
Device weight20 lbs (9.1 kg)
Conduit knockouts1/2 in (15 mm) and 1-1/4 in (32 mm)
System efficiency85% at 120 VAC 60 Hz, full load. 34 BTU/hr at 12V, 41 BTU/hr at 24V
Operating tempPower supply -4F to 122F (-20C to 50C). Controller 32F to 158F (0C to 70C)
CompliancePower kit: UL294, UL603, UL1076, ULC S318, S319, CSA C22.2 #107.1, CSA 22.2 #60950, RoHS, CE. Controller: FCC, CE, UL 294
CompatibilityAlarm.com for Business with Smarter Access Control

Documents and resources

FAQs

Can another expansion module be added inside this enclosure?
Yes. The kit ships with an X100 pre-mounted, and an additional X100, X200 or X300 can be mounted in the enclosure. The added expansion must be wired for power and communication, since only the original is pre-wired.
Can the FPV4 supply be set to 12V instead of 24V?
No. Alarm.com states that changing the FPV4 output to 12V leaves the B100 and the F8 distribution module receiving 12VDC or lower, which removes the second voltage rail the kit is designed around.
Is this kit UL rated?
Yes. The power kit carries UL294, UL603, UL1076, ULC S318 and S319, CSA C22.2 #107.1 and CSA 22.2 #60950, plus CE and RoHS. The X1100 controller itself is FCC, CE and UL 294 certified.
Are backup batteries included?
No. Batteries are ordered separately. The supply charges at a selectable 0.7 or 1.60A, so match the charge rate to the battery set you install.
