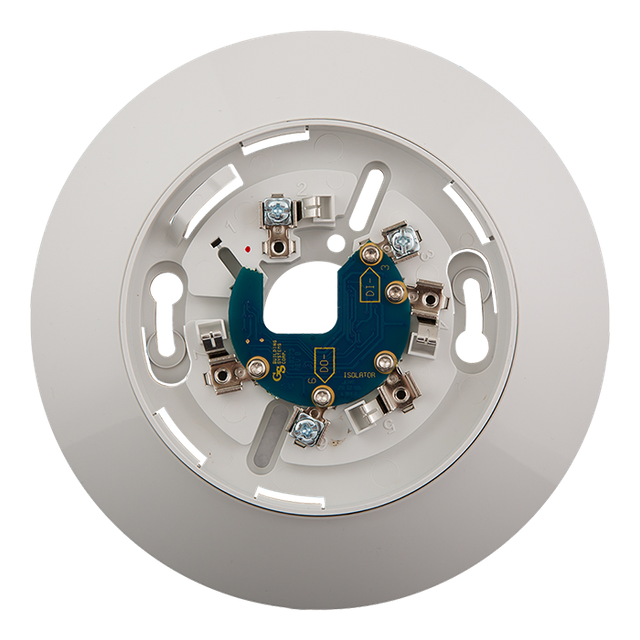

4-Inch Detector Mounting Base W/ Fault Isolator C/W Trim Skirt
SKU KD-KI-IB4
- Fast shipping from four branches
- 30-day returns on unopened products
The KI-IB4 is the 4-inch version of Kidde's KI Series isolator base, built for jobs where the detector lands on a 4-inch square electrical box instead of a standard 1-gang. It ships with the GSA-TS4 trim skirt so the base finishes clean over the wider box opening.
Why installers use it
- Automatically isolates a shorted section of a Class A loop within 23 msec, then self-restores once the fault clears
- Includes the GSA-TS4 trim skirt to cover the mounting ears and surface imperfections around a 4-inch box
- Wiring terminals stay accessible from the room side after the base is mounted
Where it fits
Use the KI-IB4 wherever a KI Series detector needs Class A isolation and the rough-in is a 4-inch square box — it requires a compatible detector installed to function, and does not support the GSA-LED remote indicator.
Specifications
| SKU | KD-KI-IB4 |
|---|---|
| Brand | Kidde Commercial |
| Function | Class A line fault isolator base, 4-inch box |
| Compatible detectors | KI Series smoke, heat, and multisensor detectors |
| Isolation Response | Opens within 23 msec on a line fault |
| Mounting | North American 4-inch square box, includes GSA-TS4 trim skirt |
| Wire size | 12-18 AWG |
| Remote LED support | Not supported |
