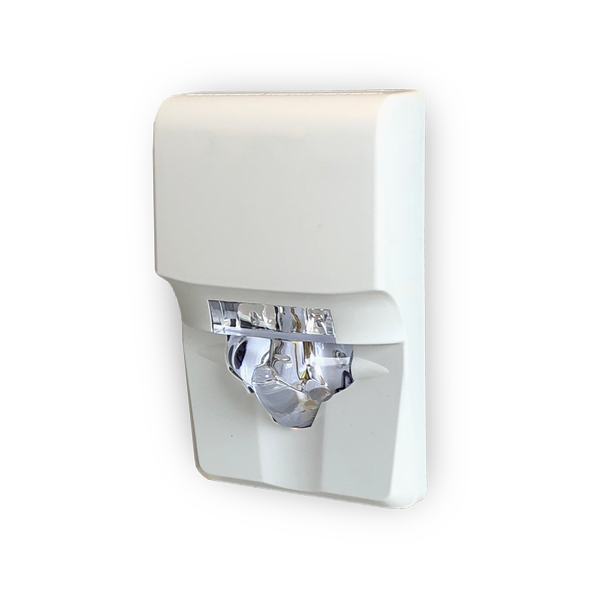

Genesis LED EG1 Compact Wall Strobe, Selectable 15/30/75 cd, White, No Marking
Kidde Commercial

Genesis LED EG1 Compact Wall Strobe, Selectable 15/30/75 cd, White, No Marking

SKU KD-EG1VWN

New to SS&Si? Apply for a dealer account
Share
  • Fast shipping from four branches
  • 30-day returns on unopened products
Questions? Call us 866-364-0030The SS&Si dealer team

The Genesis LED EG1VWN is a compact wall-mount strobe built for commercial fire alarm notification. Selectable 15, 30, or 75 candela output covers a range of room sizes without stocking multiple devices. White housing with no "FIRE" marking fits applications where code doesn't require marking or where general notification is the purpose.

Built for the commercial fire alarm installer

The EG1VWN mounts to standard 1-gang, 2-gang, 4-inch octagon, or 4-inch square boxes - no proprietary backplates or adapters. It runs on 16-33 VDC or 16-33 VFWR, pulling from the existing NAC circuit on any Kidde intelligent or conventional fire alarm control panel. Synchronized flash at 1 fps across all devices on the circuit, with a maximum 20 ohm loop resistance between devices. UL 1971, UL 1638, and UL 464 listed. ADA compliant.

Key features

  • Field-selectable candela: 15, 30, or 75 cd - one SKU covers multiple room sizes
  • Standard box mounting: fits 1-gang, 2-gang, 4" octagon, and 4" square without adapters
  • Compact profile: 3 x 4-5/8 x 1-1/8 in. sits tighter to the wall than full-size Genesis devices
  • Synchronized flash: 1 fps across all devices on the NAC circuit
  • UL listed and ADA compliant: UL 1971, UL 1638, UL 464, FCC, ICC/CSFM

System compatibility

Works with Kidde CC Series signal modules, booster and auxiliary power supplies, and all Kidde intelligent and conventional fire alarm control panels. Accepts 12-18 AWG wiring.

Specifications

SKUKD-EG1VWN
BrandKidde Commercial
Form factorCompact wall-mount strobe
Strobe outputSelectable 15, 30, 75 cd
Flash rate1 fps, synchronized
Operating voltage16-33 VDC / 16-33 VFWR
Wire size12-18 AWG
Mounting1-gang, 2-gang, 4" octagon, or 4" square boxes
Operating temp32°F to 122°F (0°C to 50°C)
Operating humidity0-93% noncondensing
Dimensions3 x 4-5/8 x 1-1/8 in. (76 x 117 x 29 mm)
ColorWhite
MarkingNone (no "FIRE" lettering)
SynchronizationMax 20 ohm loop resistance between devices
ComplianceUL 1971, UL 1638, UL 464, FCC, ICC/CSFM, ADA
CompatibilityKidde CC Series signal modules, booster/auxiliary power supplies, intelligent and conventional fire alarm control panels

Documents and resources

FAQs

Does this strobe work with my existing Kidde fire alarm panel?
Yes. The EG1VWN is compatible with all Kidde intelligent and conventional fire alarm control panels, CC Series signal modules, and booster/auxiliary power supplies.
What boxes does the EG1VWN mount to?
Standard 1-gang, 2-gang, 4-inch octagon, or 4-inch square electrical boxes. No proprietary mounting hardware required.
How do I change the candela output?
Candela is field-selectable between 15, 30, and 75 cd. The setting is adjusted on the device itself - no additional tools or accessories needed.
Is this strobe ADA compliant?
Yes. The EG1VWN meets ADA requirements for visual notification appliances. UL 1971 listed.
What is the difference between Marked and No Marking versions?
The No Marking version (N suffix) has no "FIRE" lettering on the lens. Use it where code does not require fire marking or where the strobe serves a general notification purpose. The Marked version (M suffix) includes "FIRE" lettering.
