  • Kidde | 10-Zone Conventional Fire Alarm Control Panel with Built-in DACT, 10 Class B IDCs and 4 NACs, 7.0A | FX-10RD
10-Zone Conventional Fire Alarm Control Panel with Built-in DACT, 10 Class B IDCs and 4 NACs, 7.0A
Kidde Commercial

10-Zone Conventional Fire Alarm Control Panel with Built-in DACT, 10 Class B IDCs and 4 NACs, 7.0A

SKU KD-FX-10RD

New to SS&Si? Apply for a dealer account
Share
  • Fast shipping from four branches
  • 30-day returns on unopened products
Questions? Call us 866-364-0030The SS&Si dealer team

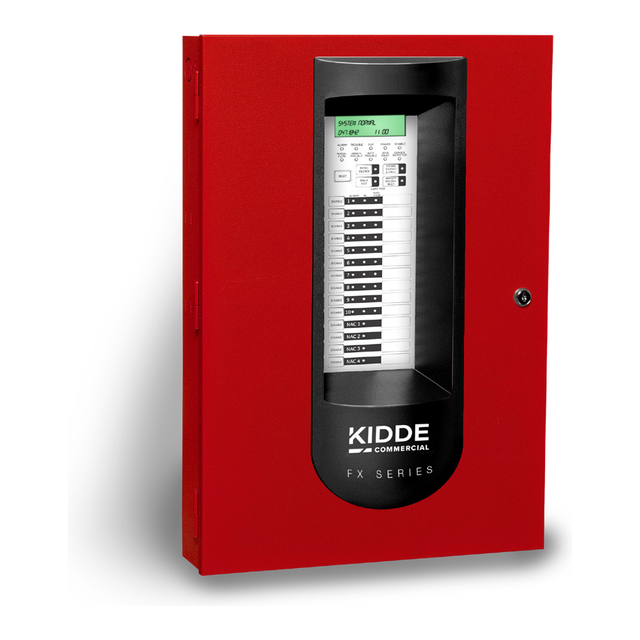

The FX-10RD is the FX-10R ten-zone conventional fire alarm control panel with an upload/download DACT and modem built in. Ten Class B initiating device circuits and four Class B notification appliance circuits come standard, with pairs of each convertible to single Class A circuits in the field.

Built for the commercial fire installer

Adding central station reporting as a separate dialer means another assembly to mount, power, and supervise inside an already busy cabinet. Building it into the panel removes that, and the upload/download capability means programming changes can be made remotely rather than by driving to site for every zone label edit.

The 7.0 amp NAC supply across four circuits carries most notification loads without a booster, and the cabinet charges up to two 24 Ah batteries with 18 Ah fitting internally. Listed under UL 864 (S3000), ULC-S527, CSFM, and FDNY.

Key features

  • Built-in upload/download DACT and modem: central station reporting and remote programming without a separate dialer assembly
  • Ten Class B IDCs, field-convertible to Class A in pairs, from 10 Class B down to 5 Class A
  • Four Class B NACs with 7.0A total power, 2.0 amps per circuit
  • On-board battery charging to 24 Ah, 18 Ah inside the cabinet
  • Three Form C contacts for alarm, trouble, and supervisory, rated 30 Vdc at 1 A
  • Resettable auxiliary output: 0.5 amps of regulated 24 Vdc
  • Walk test and lamp test from the front panel

System requirements

Requires a dedicated 120 Vac 60 Hz branch circuit at 2.2 amps, and two loop-start telephone lines on the public switched network for the DACT, connected through RJ31X or RJ38X jacks. Terminals accept 18 to 12 AWG. Batteries are ordered separately. The F-TRIM10R trim ring finishes a semi-flush installation, and the FSRA10 or FSRA10C provides remote annunciation. Consult detector compatibility list 3101019-EN for maximum detectors per circuit.

Specifications

SKUKD-FX-10RD
BrandKidde Commercial
Form factorWall-mount steel enclosure, 30 x 15.0 x 3.75 in (76.2 x 38.1 x 9.5 cm)
Panel typeConventional fire alarm control panel, 10 zone, with built-in DACT
Initiating device circuits10 Class B, convertible in pairs to Class A
Notification appliance circuits4 Class B, convertible in pairs to Class A
NAC power7.0 amps total, 2.0 amps maximum per circuit
NAC voltage rating24 Vfwr
Power input120 VAC, 60 Hz, 2.2 amps
Auxiliary output24 VDC regulated, 0.5 amps max, programmable as resettable
Battery capacityUp to two 24 Ah sealed lead acid; 18 Ah maximum inside the cabinet
DACT receiversTwo receivers with two phone numbers each
DACT protocolContact ID (SIA DC-05), 4/2 (SIA DC-02 P3)
DACT phone linesTwo or one loop-start lines, pulse or DTMF; RJ31X/RJ38X connection
DACT currentStandby 65 mA, alarm 107 mA
Alarm contactForm C, normally open, 30 VDC @ 1 A resistive
Trouble contactForm C, 30 VDC @ 1 A resistive
Supervisory contactForm C, normally open, 30 VDC @ 1 A resistive
Terminal wire gauge18 to 12 AWG (0.75 to 2.5 sq mm)
Operating temp32 to 120 F (0 to 49 C)
Operating humidity5 to 93% RH, non-condensing
Agency listingsUL 864 (S3000), ULC-S527, CSFM, FDNY
Shipping weight30.5 lb (13.8 kg)

Documents and resources

FAQs

What is the difference between the FX-10R and the FX-10RD?
The FX-10RD adds a built-in upload/download DACT and modem for central station reporting and remote programming. Circuit counts, NAC power, and the enclosure are otherwise identical.
How many phone lines does the DACT need?
One or two loop-start lines on the public switched telephone network, connected through RJ31X or RJ38X jacks. It supports two receivers with two phone numbers each.
What reporting formats does it support?
Contact ID (SIA DC-05) and 4/2 (SIA DC-02 P3). Programming is done from the front panel controls or from a PC with the appropriate software.
Can the circuits be wired Class A?
Yes. Pairs of IDCs convert to single Class A circuits, giving 10 Class B through 5 Class A. The NACs convert the same way.
Do I need a NAC booster?
Usually not. The panel supplies 7.0 amps total across four circuits at 2.0 amps each, which covers most small and mid-size notification loads.
Can this panel be semi-flush mounted?
Yes. Order the F-TRIM10R semi-flush trim ring separately, and add 1.5 inches to the height and width when the trim kit is used.
