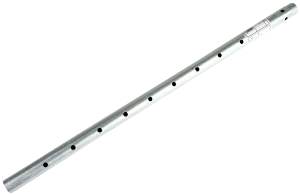

SuperDuct 78 In. Rigid Metal Air Sampling Tube for Duct Smoke Detectors
Kidde Commercial

Kidde | SuperDuct 78 In. Rigid Metal Air Sampling Tube for Duct Smoke Detectors | SD-T78

SKU KD-SD-T78

New to SS&Si? Apply for a dealer account
Share
  • Fast shipping from four branches
  • 30-day returns on unopened products
Questions? Call us 866-364-0030The SS&Si dealer team

The Kidde SD-T78 is a 78-inch rigid metal air sampling tube for the SuperDuct line of conventional duct smoke detectors. It draws air from the HVAC duct into the detector's photoelectric sensing chamber through a series of inlet holes along its length, providing reliable smoke sampling across wide commercial ductwork.

Built for the commercial installer

The tube installs from either the front side or back side of the detector housing without opening the unit. Inlet holes rotate in 45-degree increments to align with airflow regardless of mounting orientation. Standard spacing matches the SuperDuct detector assembly for a direct drop-in replacement of existing tubes or initial installs.

Key features

  • 78-inch length covers wide HVAC ductwork in a single run
  • Rotates in 45-degree increments to align air inlet holes with any airflow direction
  • Front or back installation - slides into either side of the detector housing
  • No detector disassembly required - tube seats into place without removing the detector cover
  • Rigid metal construction for long-term reliability in commercial HVAC environments

Compatibility

Pairs with all Kidde SuperDuct SD-4W series duct smoke detectors and controllers. Supports air velocity from 100 to 4,000 ft/min.

Specifications

SKUKD-SD-T78
BrandKidde Commercial
Form factorRigid metal air sampling tube, 78 inches
CompatibilityKidde SuperDuct SD-4W series duct smoke detectors
Air velocity rating100 to 4,000 ft/min
InstallationFront-side or back-side of detector housing, no disassembly required
Rotation increments45 degrees
Ship weight4.1 lb (1.9 kg)
ComplianceUL, ULC, CSFM, FM (as part of SuperDuct system)

Documents and resources

FAQs

What duct detectors does the SD-T78 work with?
Works with all Kidde SuperDuct SD-4W series duct smoke detectors. Standard spacing matches the detector assembly for direct drop-in installation or replacement.
Can this tube be installed without opening the detector?
Yes. The sampling tube slides into the detector housing from either the front side (duct side) or back side without removing the detector cover.
How do I align the air holes with the airflow?
The tube rotates in 45-degree increments, letting you position the inlet holes to face the airstream regardless of the detector's mounting angle on the duct.
What sampling tube length do I need?
Match the tube length to the duct width. The SD-T78 covers ducts up to 78 inches. Other lengths available from Kidde: 8, 18, 24, 36, 42, 60, and 120 inches.
