K-270A-DPO Fire Alarm Pull Station, Metal, Double Pole, Wire Leads
Kidde Commercial

K-270A-DPO Fire Alarm Pull Station, Metal, Double Pole, Wire Leads

SKU KD-K-270A-DPO

New to SS&Si? Apply for a dealer account
Share
  • Fast shipping from four branches
  • 30-day returns on unopened products
Questions? Call us 866-364-0030The SS&Si dealer team

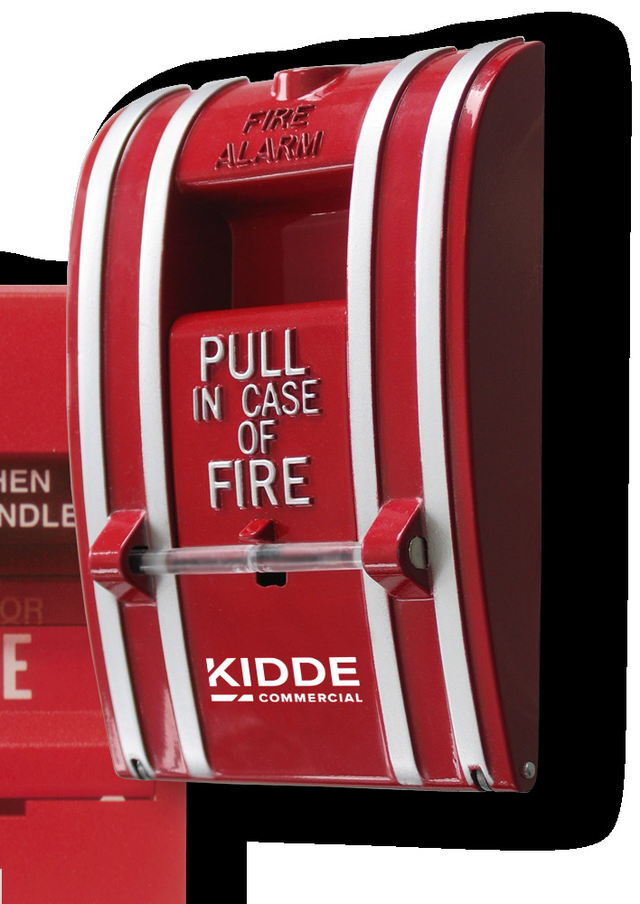

The K-270A-DPO gives a job the classic die-cast metal pull station look and durability, with a simple single-action pull that's instantly recognizable to building occupants.

Built for the commercial fire installer

A pull on the lever breaks the glass rod and initiates the alarm, with a pull force under 5 lb to keep the station ADA compliant. Double pole contacts give two independent switch actions per pull, and six-inch wire leads drop straight into a splice instead of landing on screw terminals. Solid die-cast metal construction with a red finish and aluminum accent strips stands up to decades of service.

Key features

  • Solid die-cast metal construction, red with aluminum strips
  • Double pole, open circuit contacts
  • 6-inch (150mm) wire leads for field connections
  • Less than 5 lb pull force, ADA compliant
  • Break-glass, non-coded operation

System requirements

Flush mount: 4-inch square box with single-gang plaster cover. Surface mount: cast box, steel box, or weatherproof housing (sold separately). Replacement glass rod: P27165.

Specifications

SKUKD-K-270A-DPO
BrandKidde Commercial
Form factorDie-cast metal break-glass pull station
Field connections6-inch (150mm) wire leads
Switch contactsDouble pole, open circuit
Pull forceLess than 5 lb, ADA compliant
Marking"Pull in Case of Fire" on the pull handle
HousingDie-cast metal, red finish with aluminum strips
ComplianceUL Listed

Documents and resources

FAQs

Does this include a mounting box?
No. For flush mounting, use a standard 4-inch square box with plaster cover; for surface mounting, order a cast box, steel box, or weatherproof housing separately.
Is this a presignal station?
No. For a presignal (general alarm keyswitch) version, see the K-270P series.
