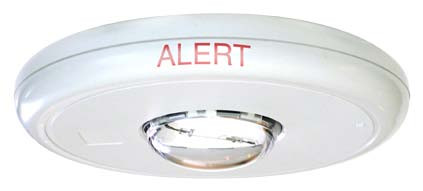

Kidde | Genesis Ceiling Strobe, ECS/MNS High-Output Selectable Candela (95-177 cd), White, ALERT Marking, Clear Lens | GCWA-VMHC

No reviews yet Write a Review

SKU:: KD-GCWA-VMHC

Description
Specifications
FAQs
Documents

The Kidde Genesis GCWA-VMHC is a ceiling-mount strobe built for emergency communication and mass notification systems. Four field-selectable candela settings (95, 115, 150, or 177 cd) let you match output to the application without stocking multiple SKUs or swapping devices after installation.

Built for the commercial fire installer

Genesis ceiling strobes mount flush to any standard North American 4" square electrical box with no extension ring and no visible mounting screws. At just 1.6" off the ceiling, the low-profile housing stays out of the way in finished spaces while exceeding UL 1971 and ULC S526 light distribution requirements. Listed to UL 1971 and UL 1638, with CSFM, MEA, and FM approvals.

Key features

Field-selectable candela output: switch between 95, 115, 150, and 177 cd without removing the device from the ceiling
FullLight strobe technology: smooth, even light distribution across the full coverage area - no hot spots or dead zones
Low-profile design: 6.8" diameter, protrudes just 1.6" from the ceiling surface
ECS/MNS rated: ALERT marking and clear lens differentiate mass notification signals from FIRE-marked life safety devices in the same building
Simple wiring: #18 to #12 AWG screw terminals, single pair daisy-chain
Synchronization ready: exceeds UL 1971 sync requirements when paired with a Genesis Signal Master or compatible sync source

System requirements

Requires a listed fire alarm control panel or notification appliance circuit providing regulated 16-33 Vdc or 16-33 Vfwr. Compatible synchronization sources include the SIGA-CC1S, SIGA-MCC1S, SIGA-CC2A, SIGA-MCC2A, G1M-RM, BPS6A, BPS10A, APS6A, APS10A, iO Series, and Fireshield Plus 3, 5, and 10 zone panels.

Brand:

Kidde Commercial

Form factor:

Ceiling-mount strobe, low-profile (1.6" projection)

Candela output:

Selectable 95, 115, 150, or 177 cd (high output, UL 1971)

Operating voltage:

Regulated 16-33 Vdc or 16-33 Vfwr

Wire connections:

Screw terminals, #18 to #12 AWG (0.75-2.5 mm²)

Operating temperature:

32-120°F (0-49°C)

Operating humidity:

0-93% relative humidity (non-condensing)

Mounting:

Flush to standard 4" square electrical box, 2-1/8" deep, no extension ring

Dimensions:

6.8" diameter x 1.0" height (0.60" lens protrusion)

Housing:

White, textured UV-stabilized engineered plastic, exceeds 94V-0 UL flammability

Lens:

Clear, optical grade polycarbonate

Marking:

ALERT (ECS/MNS)

Flash rate:

1 flash per second, synchronized

Weight:

1.8 lb (0.82 kg)

Compliance:

UL 1971, UL 1638, ULC S526, CAN/ULC S524-01, ADA compliant, CSFM, MEA, FM

Synchronization:

SIGA-CC1S, SIGA-MCC1S, SIGA-CC2A, SIGA-MCC2A, G1M-RM, BPS6A/10A, APS6A/10A, iO Series, Fireshield Plus

What candela settings are available on the GCWA-VMHC?

Four field-selectable high-output settings: 95 cd (D), 115 cd (C), 150 cd (B), and 177 cd (A). Change settings by sliding the candela switch inside the device - no need to remove it from the ceiling.

What's the difference between ECS/MNS and life safety Genesis strobes?

ECS/MNS models like the GCWA-VMHC carry ALERT markings instead of FIRE and are available with clear, amber, or blue lenses. This lets installers visually differentiate mass notification signals from fire alarm signals in the same building.

Does this strobe require an extension ring?

No. Genesis ceiling strobes flush-mount directly to any standard 4" square electrical box (2-1/8" deep) with no extension ring or trim plate needed.

What synchronization sources work with this strobe?

Compatible sync sources include SIGA-CC1S, SIGA-MCC1S, SIGA-CC2A, SIGA-MCC2A, G1M-RM, BPS6A, BPS10A, APS6A, APS10A, iO Series, and Fireshield Plus 3, 5, and 10 zone panels.

Can this strobe be used outdoors?

No. Genesis ceiling strobes are listed for indoor applications only (32-120°F, 0-93% RH). For outdoor applications, see the Genesis Outdoor Strobes series.
