  • Kidde | Genesis High Fidelity 520 Hz Ceiling Speaker-Strobe, Red, FIRE Marking, 70V Multi-Candela 95/115/150/177 cd, Clear Lens, UL Listed | GCHFRF-S7VMCH

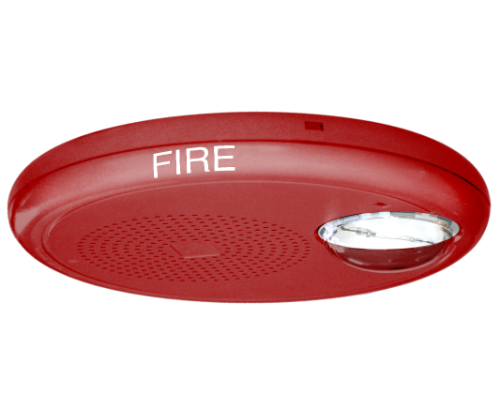

Genesis High Fidelity 520 Hz Ceiling Speaker-Strobe, Red, FIRE Marking, 70V Multi-Candela 95/115/150/177 cd, Clear Lens, UL Listed
  • Frequency 520 Hz (high fidelity)
Kidde Commercial

Genesis High Fidelity 520 Hz Ceiling Speaker-Strobe, Red, FIRE Marking, 70V Multi-Candela 95/115/150/177 cd, Clear Lens, UL Listed

SKU KD-GCHFRF-S7VMCH

New to SS&Si? Apply for a dealer account
Share
  • Fast shipping from four branches
  • 30-day returns on unopened products
Questions? Call us 866-364-0030The SS&Si dealer team

The Kidde Genesis High Fidelity Ceiling Speaker-Strobe delivers 520 Hz low-frequency audio and multi-candela visual notification from a single, low-profile ceiling-mount device. Built for sleeping accommodation areas where NFPA 72 requires 520 Hz signaling, it replaces separate speaker and strobe runs with one device and one set of wiring.

Built for the commercial fire installer

The Genesis GC series mounts flush to standard 4-inch electrical boxes and draws from a 70 VRMS audio circuit with selectable 1/4, 1/2, 1, or 2 watt taps. Strobe output is field-selectable at 95, 115, 150, or 177 cd via a rotary switch on the back of the unit - no need to stock multiple SKUs for different candela requirements. UL and ULC listed. Synchronizes with other Genesis devices on the same NAC circuit for code-compliant uniform flash.

Key features

  • 520 Hz high fidelity tone: meets NFPA 72 low-frequency requirements for sleeping areas without a separate speaker
  • Multi-candela selectable strobe: 95, 115, 150, or 177 cd via rear rotary switch - one SKU covers multiple AHJ requirements
  • 70 VRMS speaker: selectable 1/4, 1/2, 1, or 2 watt operation fits existing audio riser designs
  • Low current draw: more devices per NAC circuit, fewer power supplies on the job
  • Genesis synchronization: uniform flash across all Genesis strobes on the same circuit, no external sync module required
  • UL and ULC listed: approved for commercial fire alarm applications in the US and Canada

System requirements

Requires a regulated 24 VDC (FWR) NAC circuit for strobe power and a 70 VRMS audio riser for speaker operation. Compatible with Kidde fire alarm control panels and listed third-party FACPs with supervised NAC outputs. Mounts to standard 4-inch square electrical boxes.

Specifications

SKUKD-GCHFRF-S7VMCH
BrandKidde Commercial
Form factorCeiling-mount speaker-strobe, low profile
Power inputRegulated 24 VDC (FWR) for strobe; 70 VRMS audio riser for speaker
Speaker wattageSelectable 1/4, 1/2, 1, or 2 watt
Strobe outputSelectable 95, 115, 150, or 177 cd (high cd)
Frequency520 Hz (high fidelity)
Flash rate1 flash per second (synchronized)
Lens colorClear
Housing colorRed
MarkingFIRE
Operating temp32°F to 120°F (0°C to 49°C)
Operating humidity10% to 93% non-condensing
Wire size12 to 18 AWG
MountingStandard 4-inch square electrical box
ComplianceUL, ULC, CSFM

Documents and resources

FAQs

Does this speaker-strobe meet the NFPA 72 520 Hz requirement for sleeping areas?
Yes. The Genesis High Fidelity models produce a 520 Hz tone that meets NFPA 72 requirements for notification in sleeping accommodation areas such as hotels, dormitories, and assisted living facilities.
How do I select the candela output?
Candela output is set via a rotary switch on the back of the device before installation. Options are 95, 115, 150, or 177 cd. No tools required - rotate to the desired setting.
What speaker wattage taps are available?
The 70 VRMS speaker offers selectable 1/4, 1/2, 1, and 2 watt taps. Select the wattage that matches your audio riser design and the required sound pressure level for the space.
Will this sync with other Genesis devices on the same circuit?
Yes. Genesis devices synchronize automatically when installed on the same NAC circuit. All strobes flash in unison at 1 flash per second without an external sync module.
What fire alarm panels is this compatible with?
Compatible with Kidde intelligent and conventional fire alarm control panels, and listed third-party FACPs with regulated 24 VDC (FWR) supervised NAC outputs and 70 VRMS audio capability.
