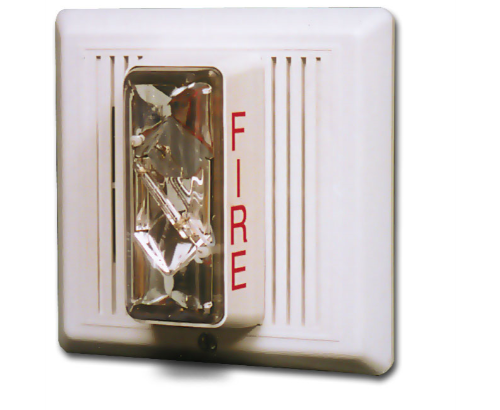

Genesis EG1 Series Wall-Mount 30 cd Temporal Horn-Strobe, FullLight Technology, White, UL/ULC Listed
Kidde Commercial

Genesis EG1 Series Wall-Mount 30 cd Temporal Horn-Strobe, FullLight Technology, White, UL/ULC Listed

SKU KD-2452THS-30-W

New to SS&Si? Apply for a dealer account
Share
  • Fast shipping from four branches
  • 30-day returns on unopened products
Questions? Call us 866-364-0030The SS&Si dealer team

The Genesis EG1 wall-mount horn-strobe delivers synchronized notification on standard NAC circuits with 30 cd strobe output and selectable high/low dB horn in a compact 1-gang form factor. Temporal 3-pulse pattern ships as default, with a jumper option for steady (coded) operation on supervised circuits.

Built for the commercial fire installer

Mounts directly to any standard 1-gang flush or surface box with no adapter plates required. An optional trim plate (EG1T-FIRE) covers oversized openings including two-gang, four-inch square, and octagonal boxes. FullLight strobe technology produces smooth, even light distribution that exceeds UL 1971 and ULC S526 requirements without the hot spots and voids of specular reflectors. UL 1971, UL 1638, ULC S525, ULC S526, CSFM, and ADA compliant.

Key features

  • 30 cd FullLight strobe output with synchronized flash rate (1 flash/sec) across all devices on the circuit
  • Selectable high/low dB horn - factory default is high dB, cut a jumper for approximately 5 dB reduction without removing the device from the box
  • Temporal or coded operation: ships temporal (3-pulse), jumper-selectable to steady for coded NAC panels
  • Compact 1-gang form factor at 4-1/2" x 2-3/4" x 13/16" - fits standard electrical boxes without special hardware
  • 16-33 Vdc or 16-33 Vdc FWR input - powers off the existing NAC circuit, no extra power supply runs
  • Synchronizes with Genesis Signal Master (EG1M) for code-compliant multi-device installations

System requirements

Requires a supervised NAC circuit from a compatible FACP rated for 16-33 Vdc or 16-33 Vdc FWR. Wire connections accept #18 to #12 AWG. Indoor use only (32-120F, 93% RH max). For synchronized strobe operation across multiple devices, add a Genesis Signal Master (EG1M) to the circuit.

Specifications

SKUKD-2452THS-30-W
BrandKidde Commercial
Form factorWall-mount horn-strobe, Genesis EG1 Series
Strobe output30 cd, FullLight technology (UL 1971/ULC S526)
Horn patternTemporal (3-pulse), jumper-selectable to steady (coded)
Horn levelSelectable high/low (factory default: high)
Operating voltage16-33 Vdc or 16-33 Vdc FWR
Wire connections#18 to #12 AWG (0.75 mm² to 2.5 mm²)
Operating temp32°F to 120°F (0°C to 49°C)
Operating humidity93% RH max, non-condensing
MountingStandard 1-gang flush or surface box (indoor only)
Housing colorWhite with FIRE marking
LensClear, optical grade polycarbonate
Dimensions4-1/2" x 2-3/4" x 13/16" (113 x 68 x 21 mm)
SynchronizationGenesis Signal Master (EG1M) compatible
ComplianceUL 1971, UL 1638, UL 464, ULC S525, ULC S526, CSFM, CE, FCC, MEA, ADA

Documents and resources

FAQs

Does this horn-strobe fit standard electrical boxes?
Yes. Mounts to any standard 1-gang flush or surface box. For oversized openings (two-gang, four-inch square, octagonal), use the optional EG1T-FIRE trim plate.
Can this run on a coded NAC circuit?
Yes. Ships with temporal (3-pulse) pattern as default. Cut the temporal jumper on the circuit board to switch to steady output for coded FACP operation. When used as a horn-strobe on coded circuits, a Genesis Signal Master (EG1M) is required.
What is FullLight strobe technology?
Kidde's patented strobe technology producing smooth, even light distribution. Exceeds UL 1971 and ULC S526 requirements without the hot spots and dead zones of specular reflectors.
How do I change the horn volume after installation?
High dB output is the factory default. To reduce output by approximately 5 dB, cut the low-dB jumper on the circuit board. The device does not need to be removed from the box to access the jumper.
Does this require a Signal Master for synchronization?
For single-device installations, no. For multi-device circuits requiring synchronized strobe flash, add a Genesis Signal Master (EG1M) to the NAC circuit. The Signal Master synchronizes all Genesis devices within 10 ms.
