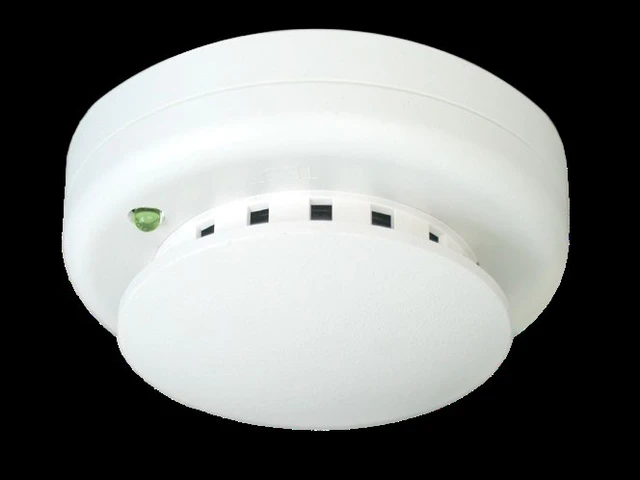

The KI-HRD is an addressable rate-of-rise heat detector for the Kidde Intelligent Series, combining a 135°F fixed-temperature threshold with a 15°F-per-minute rate-of-rise function for faster response to rapidly developing fires.
Built for the commercial installer
The rate-of-rise element catches fast-flaming fires that a fixed-temperature-only detector would miss until the room fully heats up, while the fixed-temperature backstop still trips in a slow, steady heat rise. A twist-and-lock head speeds installation and service, and on-board self-diagnostics store test history for reporting.
Key features
- 135°F (57°C) fixed-temperature threshold plus 15°F (8°C)/min rate-of-rise for dual-mode heat detection
- Twist-and-lock detector head for quick installation and base swaps
- Compatible with B4U, RB4U, IB4U, and SB4U bases for standard, relay, isolator, or audible applications
- Comprehensive self-diagnostics with on-board storage of test results
- UL 521 and ULC-S530 listed for commercial fire alarm systems
System requirements
Requires a compatible Kidde VS or VM Series intelligent control panel and a B4U-family detector base (ordered separately).
Brand:
Kidde Commercial
Form factor:
Addressable rate-of-rise/fixed-temp heat detector head, twist-and-lock
Communication:
Analog addressable SLC loop, Kidde VS/VM control systems
Fixed-temp alarm rating:
135ĆĀ°F (57ĆĀ°C); 140ĆĀ°F (60ĆĀ°C) ULC
Rate-of-rise:
15ĆĀ°F (8ĆĀ°C) per minute
Operating voltage:
15.2 to 19.95 VDC
Maximum spacing:
50 ft (15 m) centers
Compatible bases:
B4U Standard, RB4U Relay, IB4U Isolator, SB4U Audible
Operating temp:
32ĆĀ°F to 100ĆĀ°F (0ĆĀ°C to 38ĆĀ°C)
Operating humidity:
0 to 93% RH, noncondensing
Compliance:
UL 521, ULC-S530-M91, NFPA 72, CAN/ULC S524-01
How is the KI-HRD different from the KI-HFD?
The KI-HRD adds a 15ĆĀ°F/min rate-of-rise element on top of the same 135ĆĀ°F fixed-temperature threshold, so it also catches fast-developing fires before the room reaches full alarm temperature.
What base does the KI-HRD require?
Any B4U-family base: B4U standard, RB4U relay, IB4U isolator, or SB4U audible. The detector shares the base's address, so no extra address is used.
What panel is this compatible with?
Kidde VS and VM Series intelligent fire alarm control panels.
