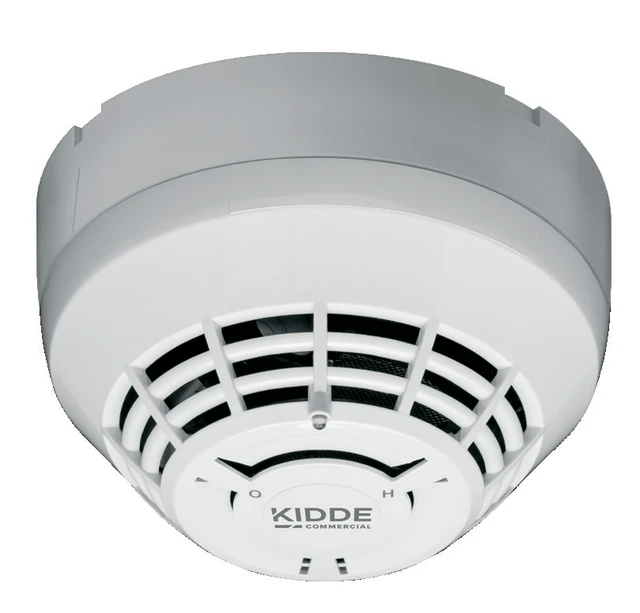

Intelligent Optica Multisensor Smoke, Heat and CO Detector, UL268/UL2075
Kidde Commercial

Intelligent Optica Multisensor Smoke, Heat and CO Detector, UL268/UL2075

SKU KD-KI-OSHCD

New to SS&Si? Apply for a dealer account
Share
  • Fast shipping from four branches
  • 30-day returns on unopened products
Questions? Call us 866-364-0030The SS&Si dealer team

The KI-OSHCD covers smoke, heat, and carbon monoxide in a single addressable head, so an installer doesn't have to spec and mount three separate devices to satisfy fire and CO code requirements in the same space.

Built for the commercial fire installer

Dual optical wavelengths and multi-angle particle detection reject nuisance sources like cooking particulates before they trip an alarm, while onboard rate-of-rise heat sensing (15°F/min) and a 135°F fixed threshold catch fast-developing fires the smoke sensor alone might miss. The CO sensor meets UL 2034 alarm thresholds and reports its own end-of-life condition to the panel, so replacement is scheduled instead of discovered. On-board intelligence means the detector only talks to the loop controller when it has something new to report, keeping communication fast and stable.

Key features

  • Three hazards, one head: multi-criteria smoke, rate-of-rise heat, and CO detection
  • Nuisance rejection reduces false alarms from cooking and steam
  • Independent alarm logic: smoke/heat and CO are analyzed separately to identify a fire alarm, a CO alarm, or both
  • 10-year CO sensor life with automatic end-of-life reporting to the panel
  • Self-diagnostics and history log stored in non-volatile memory
  • Bicolor status LED and support for standard, relay, isolator, and audible sounder bases

System requirements

Mounts to Kidde Intelligent Series bases (KI-SB, KI-RB, KI-IB, or audible KI-ABST/ABDT/ABLT) on a North American 1-gang, 4-inch octagon, or 4-inch square electrical box. Audible CO+Fire tone separation requires an FX-T3T4 Tone Generator.

Specifications

SKUKD-KI-OSHCD
BrandKidde Commercial
Form factorIntelligent addressable multisensor smoke/heat/CO detector head
Operating voltage15.20 to 19.95 Vdc
Smoke sensitivity0.5 to 4.36%/ft obscuration (UL/ULC)
Heat detection15°F/min rate-of-rise, 135°F fixed threshold
CO detectionPer UL 2034: alarms at 70-400 ppm depending on exposure time; false-alarm resistant to 30 ppm/30 days
CO sensor life10 years from date of manufacture, with end-of-life reporting to the panel
Operating environment32°F to 100°F (0°C to 38°C), 0-90% RH noncondensing
ConstructionHigh-impact engineering polymer, white
Compatible basesKI-SB, KI-RB, KI-IB (standard, relay, isolator), KI-ABST/ABDT/ABLT (audible)
ComplianceUL 268-7, UL 521, UL 2075, CSFM; ULC CAN/ULC-S529, S530, CAN/CSA 6.19

Documents and resources

FAQs

Does this detector alarm separately for fire and CO?
Yes. The smoke and heat sensors are analyzed independently from the CO sensor, so the panel can distinguish a fire alarm, a CO alarm, or both.
How long does the CO sensor last?
10 years from the date of manufacture, or until the control panel reports an end-of-life condition, whichever comes first.
Can this detector sound an audible alarm at the device?
Yes, with a KI-ABST, KI-ABDT, or KI-ABLT audible base. Separating Fire and CO tone patterns requires an FX-T3T4 Tone Generator.
What mounting boxes does this fit?
North American 1-gang boxes, 3-1/2 or 4 inch octagon boxes, and 4-inch square electrical boxes 1-1/2 inches deep, via the appropriate Kidde Intelligent Series base.
