Kidde | Intelligent Fixed Temperature & Rate-of-Rise Heat Detector, Rotary-Addressed | KIR-HD

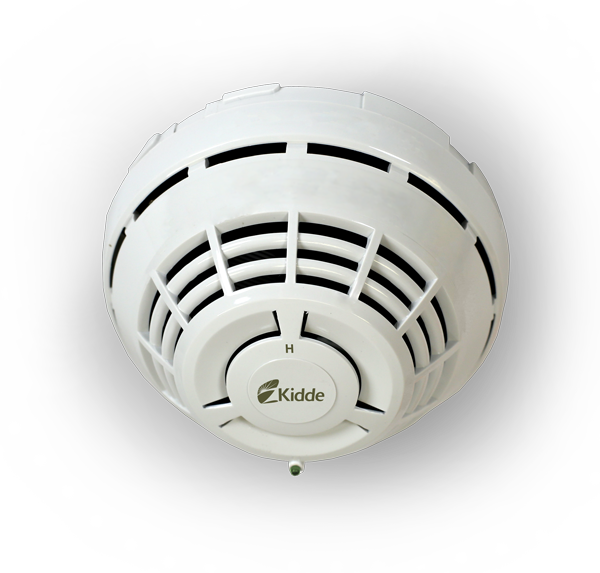

Intelligent Fixed Temperature & Rate-of-Rise Heat Detector, Rotary-Addressed

SKU KD-KIR-HD

Fast shipping from four branches
30-day returns on unopened products

Questions? Call us 866-364-0030The SS&Si dealer team

The KIR-HD is a dual-sensing intelligent heat detector that monitors for both rapid temperature spikes and sustained high heat on the same SLC loop point. Rate-of-rise detection catches fast-moving fire conditions (triggers at 15°F/min), while the fixed-temperature element activates at 135°F for slower-developing heat events. One detector covers both scenarios, reducing device count and loop loading on Kidde intelligent fire alarm systems.

Built for the commercial fire installer

Rotary-addressed with 160 available addresses (0-159) set by screwdriver - no programming tool or laptop required. Mount the detector on any compatible KI-series base, set the address, and the panel picks it up on the next SLC poll. Low current draw (51 µA standby, 68 µA alarm) keeps loop capacity available for larger systems. Automatic environmental compensation adjusts sensitivity to ambient temperature changes, reducing nuisance alarms in spaces with HVAC cycling or seasonal temperature swings.

Key advantages

Dual-sensing in one device: fixed temperature (135°F ULI / 140°F ULC) and rate-of-rise (15°F/min) detection on a single SLC address
Rotary addressing (0-159): set with a screwdriver, no programming tool needed
Low SLC current draw: 51 µA normal, 68 µA alarm - maximizes available loop capacity
Automatic environmental compensation: reduces false alarms from ambient temperature fluctuations
Eight compatible base types: standard, 4-inch, relay, fault isolator, and audible sounder options
UL 521 and ULC listed: meets UL 521, ULC-S530-M91, and CAN/ULC S524-01

System requirements

Requires a Kidde intelligent fire alarm control panel with SLC loop capability. Mounts on any compatible KI-series base (sold separately). Standard bases fit single-gang boxes; 4-inch bases with trim skirts cover standard 4-inch square electrical boxes. Accepts #12 to #18 AWG wiring.

Specifications

SKU	KD-KIR-HD
Brand	Kidde Commercial
Form factor	Ceiling-mount intelligent heat detector
Communication	SLC (Signaling Line Circuit) to Kidde intelligent FACP
Addressing	Rotary switches, 0-159 addresses
Power input	15.2 to 19.95 VDC (SLC loop powered)
Normal operating current	51 µA average
Alarm current	68 µA average
UL fixed-temp alarm rating	135°F (57°C)
ULC fixed-temp alarm rating	140°F (60°C)
UL rate-of-rise rating	15°F/min (8.3°C/min)
Maximum spacing	50 ft (15 m) centers
Max ceiling distance (wall-mount)	12 in (305 mm)
Operating temp	32 to 120°F (0 to 49°C)
Operating humidity	0 to 93% RH, noncondensing at 90°F (32°C)
Storage temp	-4 to 140°F (-20 to 60°C)
Environmental compensation	Automatic
Wire size	#18 AWG (0.75 mm²) to #12 AWG (2.5 mm²)
Dimensions	4.296" diameter x 1.808" height
Ship weight	0.4 lbs (0.16 kg)
Agency listings	UL 521, ULC-S530-M91, CAN/ULC S524-01, ISO 9001
Compatible bases	KI-SB, KI-SB4, KI-RB, KI-RB4, KI-IB, KI-IB4, KI-ABST, KI-ABLT

Documents and resources

Spec SheetPDF

FAQs

What fire alarm panels is the KIR-HD compatible with?

The KIR-HD works with any Kidde intelligent fire alarm control panel that supports SLC loop communication. It is not compatible with conventional (non-addressable) panels.

Does the KIR-HD require a programming tool for addressing?

No. The KIR-HD uses rotary address switches (0-159). Set the address with a small flathead screwdriver before mounting. No programming tool or laptop required.

What is the difference between fixed temperature and rate-of-rise detection?

Fixed temperature triggers at 135°F (UL rated). Rate-of-rise triggers when temperature climbs faster than 15°F/min. The KIR-HD provides both in one detector, catching slow-developing and fast-moving fire conditions.

What bases work with the KIR-HD?

Standard mounting (KI-SB), 4-inch with trim skirt (KI-SB4), relay output (KI-RB/KI-RB4), fault isolator (KI-IB/KI-IB4), and audible sounder bases (KI-ABST standard tone, KI-ABLT low frequency). All bases sold separately.

Can the KIR-HD be used outdoors or in unconditioned spaces?

The KIR-HD is rated for indoor use. Operating range is 32 to 120°F with humidity up to 93% RH noncondensing. For spaces with wide temperature swings within that range, the automatic environmental compensation helps reduce nuisance alarms.

Is the KIR-HD UL listed?

Yes. Listed to UL 521, ULC-S530-M91, and CAN/ULC S524-01. Manufactured to ISO 9001 standards.
