Optica Intelligent Rotary Duct Detector Replacement Interface Board
Kidde Commercial

Optica Intelligent Rotary Duct Detector Replacement Interface Board

SKU KD-KIR-DDOSIB

New to SS&Si? Apply for a dealer account
Share
  • Fast shipping from four branches
  • 30-day returns on unopened products
Questions? Call us 866-364-0030The SS&Si dealer team

The KIR-DDOSIB is the replacement interface board for the Kidde Optica KIR-DDOS Intelligent Duct Smoke Detector. When the original board fails or needs replacement, this drop-in swap gets the detector back online without replacing the entire housing, sampling tube, or optical sensor assembly.

Built for the fire alarm installer

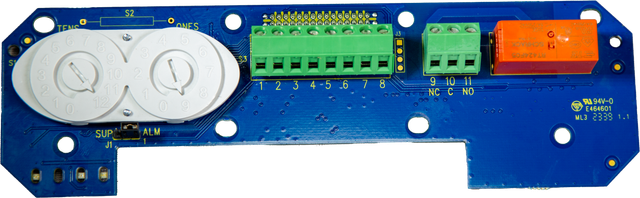

The interface board carries the rotary address switches (TENS and ONES, 1-127 range), all SLC wiring terminals, the Form C auxiliary alarm relay, and connections for remote test stations and LED indicators. It drops into the existing KIR-DDOS housing with no modifications - same terminal layout, same mounting points, same wiring scheme. Compatible with all Kidde Intelligent Rotary Loop controllers and FX Series intelligent panels.

Key features

  • Direct replacement: same form factor and terminal layout as the original KIR-DDOS interface board
  • Rotary addressing (1-127): TENS and ONES dials set the SLC address without software
  • Form C auxiliary relay: 3.0 A at 30 VDC / 3.0 A at 120 VAC for HVAC shutdown or ancillary equipment control
  • Full terminal block: SLC in/out, remote LED, remote test station, and relay (NC/C/NO) connections
  • SUP and ALM indicators: onboard status LEDs for supervisory and alarm states

System requirements

Requires a Kidde Optica KIR-DDOS duct smoke detector housing and optical sensor tube assembly. Communicates on the SLC loop at 15.2 to 19.95 VDC. Wire with 14 to 22 AWG per NFPA 72.

Specifications

SKUKD-KIR-DDOSIB
BrandKidde Commercial
Form factorReplacement interface board (PCB)
CommunicationSLC loop (Kidde Intelligent Rotary protocol)
Power input15.2 to 19.95 VDC (from SLC loop)
AddressingRotary switches, 1-127 range (TENS and ONES dials)
Relay outputs1x Form C, 3.0 A at 30 VDC / 3.0 A at 120 VAC (0.35 pf) / 1.5 A at 240 VAC (0.35 pf)
Wire size14 to 22 AWG
CompatibilityKidde Optica KIR-DDOS Intelligent Duct Smoke Detector
Compatible panelsAll Kidde Intelligent Rotary Loop controllers, FX Series intelligent panels
Agency listingsUL, ULC, CSFM

Documents and resources

FAQs

Is this board compatible with the older FX-PDD duct detector?
No. The KIR-DDOSIB is specifically designed for the Kidde Optica KIR-DDOS Intelligent Duct Smoke Detector. The older FX-PDD uses a different replacement PCB.
Do I need to reprogram the address after replacing the board?
Set the TENS and ONES rotary switches to match the original detector address. The address is set mechanically on the new board - no software programming required.
Does replacing the board require a new sampling tube or sensor?
No. The interface board swaps independently. The Optica optical sensor tube assembly, sampling tubes, and exhaust tubes remain in place.
What panels does this work with?
All Kidde Intelligent Rotary Loop controllers, including the FX Series intelligent fire alarm panels. Any panel that supports the Kidde intelligent SLC loop.
What are the relay ratings on this board?
The Form C auxiliary relay is rated at 3.0 A at 30 VDC, 3.0 A at 120 VAC (0.35 pf), and 1.5 A at 240 VAC (0.35 pf). Commonly used for HVAC shutdown or ancillary control circuits.
