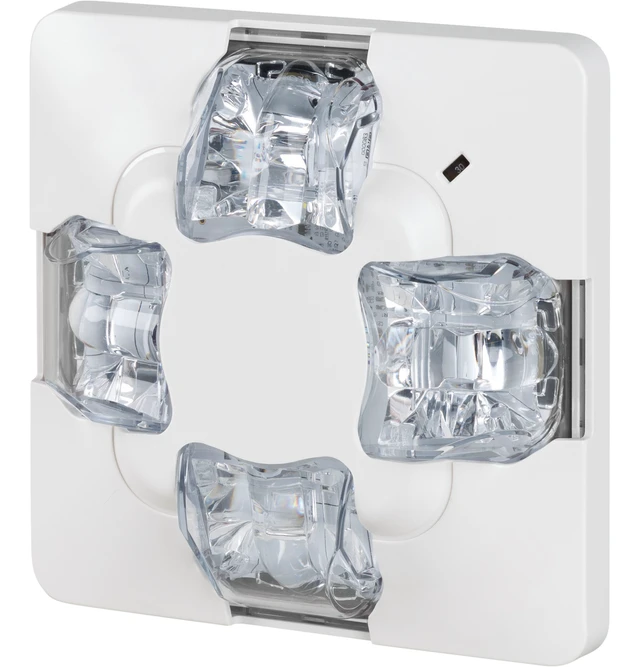

Genesis WG4 Outdoor Wall Strobe, Field-Selectable 15/30 cd, White, No Marking, UL 1971 & UL 1638
Kidde Commercial

Genesis WG4 Outdoor Wall Strobe, Field-Selectable 15/30 cd, White, No Marking, UL 1971 & UL 1638

SKU KD-EWGVWN

New to SS&Si? Apply for a dealer account
Share
  • Fast shipping from four branches
  • 30-day returns on unopened products
Questions? Call us 866-364-0030The SS&Si dealer team

The Kidde Genesis WG4 outdoor wall strobe delivers UL-listed visible notification for both indoor and outdoor installations, including wet and harsh environments like parking garages, loading docks, and process areas. Field-selectable candela settings let you dial in the right intensity on site without swapping hardware.

Built for outdoor and harsh-environment installs

Rated from -40 to 151F with UL 1638 outdoor and UL 1971 indoor listings, this strobe handles the environments where standard indoor-only appliances fall short. The optional WG4GSKT full-backplane gasket seals the unit to recessed electrical boxes for in-the-pour or block installations. Room-side wiring on 12 to 18 AWG keeps the install straightforward, and the shallow 1.4-inch depth leaves room behind the appliance for extra wiring.

Key features

  • Field-selectable candela output: switch between 15 and 30 cd settings on site, viewable through a sealed viewport after installation
  • Indoor and outdoor rated: UL 1971, UL 1638, and CAN/ULC-S526 listed for wall-mount applications
  • Genesis synchronization compatible: meets UL sync requirements (within 10 ms over two hours) with compatible sync sources
  • Low-profile design: only 1.4 inches deep on the standard WG4 backplate
  • White housing, unmarked lens: clean appearance for commercial and industrial spaces where FIRE marking is not required

Mounting requirements

For outdoor or wet locations, mount to a Model 449 or 74347U surface box. In dry indoor conditions, a standard 4-inch square by 1.5-inch deep box works. Optional WG4WTS white trim skirt provides a finished look (requires 449 or 4-inch square by 2-1/8-inch deep box).

Specifications

SKUKD-EWGVWN
BrandKidde Commercial
Form factorOutdoor wall-mount strobe, low-profile
Power input24 VDC or 24 VFWR nominal
Strobe outputField-selectable: 15 cd and 30 cd (UL 1971 indoor)
MountingWall mount; Model 449 or 74347U (outdoor), 4" square x 1.5" deep box (indoor)
Wire size12 to 18 AWG (0.75 to 2.50 mm²)
Operating temp-40 to 151°F (-40 to 66°C)
Operating humidity0 to 95% noncondensing
Dimensions5.6 × 8.5 × 1.4 in. (142 × 216 × 36 mm)
Housing colorWhite
Lens markingNone (unmarked)
SynchronizationGenesis sync compatible (GSA-CC1S, SIGA-CC2A, or VS/VM/FX panel sync)
ComplianceUL 1971, UL 1638, CAN/ULC-S526

Documents and resources

FAQs

Does this strobe work outdoors?
Yes. Rated for indoor and outdoor use, -40 to 151°F. For outdoor or wet-location installs, mount to a Model 449 or 74347U surface box. Optional WG4GSKT gasket adds sealing for recessed boxes.
What candela settings are available?
Field-selectable standard candela at 15 cd and 30 cd (UL 1971 indoor). Setting is changed via a switch inside the device. Selected position stays visible through a sealed front viewport.
Does it synchronize with other Genesis strobes?
Yes. Meets UL sync requirements (within 10 ms over two hours) with GSA-CC1S, SIGA-CC2A, EG1M-RM Signal Master, or a Kidde VS/VM/FX panel with built-in Genesis sync.
What electrical box does it require?
Outdoor or wet locations: Model 449 or 74347U surface mount box. Indoor dry locations: standard 4-inch square by 1.5-inch deep box. If using the optional WG4WTS white trim skirt, you need a 449 or 4-inch square by 2-1/8-inch deep box.
Is there a FIRE-marked version of this strobe?
This SKU (EWGVWN) is the unmarked version with a white housing. FIRE-marked variants are available in the same Genesis WG4 outdoor family. Contact SS&Si for the FIRE-marked equivalent.
