  • Kidde | Genesis WG4 LED Outdoor Wall Strobe with Field-Selectable Candela, Red, No Marking | EWGVRN

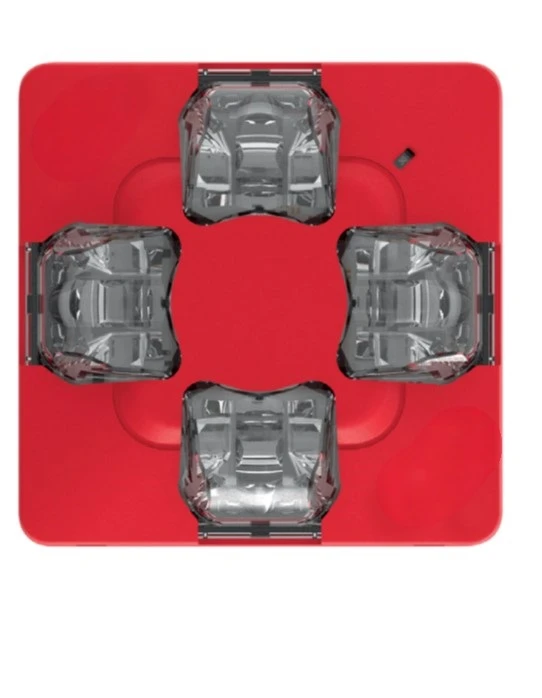

Genesis WG4 LED Outdoor Wall Strobe with Field-Selectable Candela, Red, No Marking
Kidde Commercial

Genesis WG4 LED Outdoor Wall Strobe with Field-Selectable Candela, Red, No Marking

SKU KD-EWGVRN

New to SS&Si? Apply for a dealer account
Share
  • Fast shipping from four branches
  • 30-day returns on unopened products
Questions? Call us 866-364-0030The SS&Si dealer team

The Kidde Genesis WG4 outdoor wall strobe delivers visible fire alarm notification in wet, harsh, and extreme-temperature environments without adding complexity to the install. Field-selectable candela output, 24 VDC/VFWR operation, and compatibility with Genesis synchronization protocols keep this device drop-in ready for new builds and retrofits alike.

Built for outdoor and harsh-environment installs

UL 1638 listed for outdoor use and UL 1971 listed for indoor applications, the WG4 strobe handles operating temperatures from -40F to 151F and humidity up to 95% noncondensing. Mount it to a Model 449 or 74347U outdoor-rated surface box for wet locations, or a standard 4-inch square box in dry conditions. Room-side wiring accepts 12 to 18 AWG conductors.

Key features

  • Field-selectable candela output: four intensity settings adjustable through a sealed viewport without removing the cover after install
  • Outdoor and indoor rated: UL 1638, UL 1971, and CAN/ULC-S526 listed for maximum deployment flexibility
  • Wide operating range: -40F to 151F (-40C to 66C) covers parking garages, loading docks, and process areas
  • Genesis sync compatible: works with GSA-CC1S, SIGA-CC2A, EG1M-RM Signal Master, and fire alarm panels with built-in Genesis synchronization
  • Low-profile design: 1.4 in. shallow depth leaves room behind the appliance for extra conductor routing
  • Red housing, no FIRE marking: clean appearance for applications where code does not require marking

System requirements

Connects to any 24 VDC or 24 VFWR notification appliance circuit (NAC). Synchronization requires a Genesis-compatible sync source when two or more strobes share a field of view. For outdoor surface mounting, use Model 449 (gray) or 74347U (red) surface boxes. Optional WG4RTS trim skirt available for a finished appearance.

Specifications

SKUKD-EWGVRN
BrandKidde Commercial
Form factorWall-mount outdoor LED strobe, low-profile
Power input24 VDC / 24 VFWR nominal
Strobe outputField-selectable standard candela, 4 settings via sealed viewport
Operating temp-40 to 151°F (-40 to 66°C)
Operating humidity0 to 95% noncondensing
Wire size12 to 18 AWG (0.75 to 2.50 mm²)
MountingWall or ceiling, indoor or outdoor
Compatible electrical boxesOutdoor: Model 449 or 74347U; Indoor: 4 in. square by 1.5 in. deep
Dimensions5.6 × 8.5 × 1.4 in. (142 × 216 × 36 mm)
ComplianceUL 1971, UL 1638, CAN/ULC-S526
SynchronizationGenesis sync protocol (GSA-CC1S, SIGA-CC2A, EG1M-RM, VS/VM/FX Series panels)
HousingRed, no FIRE marking

Documents and resources

FAQs

What candela settings are available on this strobe?
Four field-selectable settings (positions D, C, B, A). Adjusted via a switch inside the device. The selected setting is visible through a sealed viewport on the front - no cover removal needed after install.
Can this strobe be used outdoors?
Yes. UL 1638 listed for outdoor use, operating from -40°F to 151°F at up to 95% humidity. For outdoor surface mounting, use a Model 449 (gray) or 74347U (red) outdoor-rated electrical box.
What electrical box does this mount to?
Outdoor/wet locations: Model 449 or 74347U surface box. Dry conditions: standard 4-inch square by 1.5-inch deep box. Optional WG4RTS (red) or WG4WTS (white) trim skirts for a finished appearance.
Does this require a synchronization module?
When two or more strobes share a field of view, sync is required per UL 1971. Use a Genesis-compatible source: GSA-CC1S, SIGA-CC2A, EG1M-RM Signal Master, or VS/VM/FX panels with built-in Genesis sync.
What wire size does this accept?
12 to 18 AWG (0.75 to 2.50 mm²). All wiring connects at room-side terminals.
