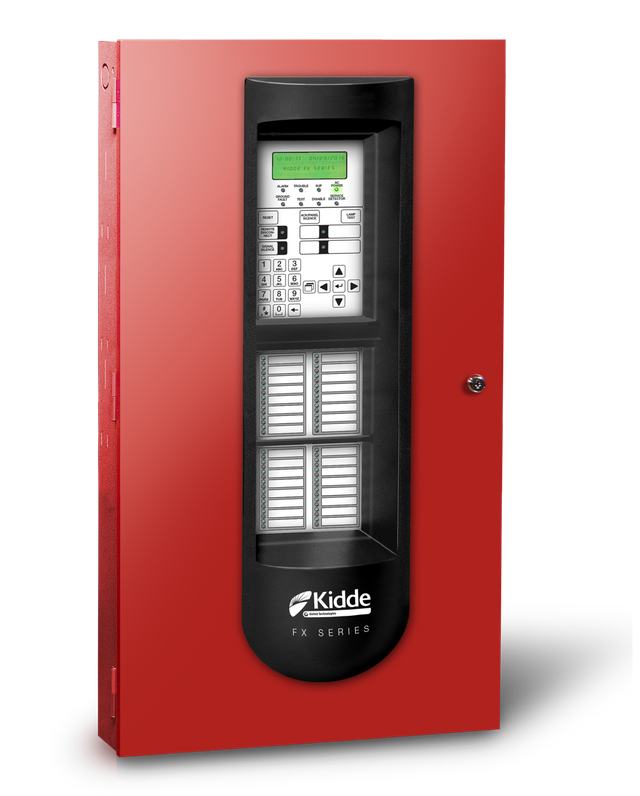

FX-1000 Intelligent FACP Replacement Electronics Assembly with 250-Point SLC Loop, Expandable to Four Loops
Kidde Commercial

Kidde | FX-1000 Intelligent FACP Replacement Electronics Assembly with 250-Point SLC Loop, Expandable to Four Loops | FX-1000-RE

SKU KD-FX-1000-RE

New to SS&Si? Apply for a dealer account
Share
  • Fast shipping from four branches
  • 30-day returns on unopened products
Questions? Call us 866-364-0030The SS&Si dealer team

The FX-1000-RE is a drop-in replacement electronics assembly for the Kidde FX-1000 intelligent fire alarm control panel. It ships with one 250-point SLC loop controller supporting 125 detectors and 125 modules, and can be expanded to four loops (1,000 total device addresses) with additional FX-SLC1 or FX-SLC2 loop controller modules.

Built for the commercial fire alarm installer

When an FX-1000 panel needs a board-level swap rather than a full enclosure replacement, the FX-1000-RE gets you back online without rewiring. The replacement assembly drops into the existing FX-1000 backbox and reconnects to the same terminal blocks - SLC loops, four NACs, annunciator bus, auxiliary power, and relay outputs. UL and ULC listed (S3000), NYC Fire Department approved.

Key capabilities

  • 250-point SLC loop included: supports 125 detectors and 125 modules out of the box, expandable to four loops (1,000 points) with FX-SLC1 or FX-SLC2 modules
  • Four NACs: Class B (Style Y) or Class A (Style Z) wiring, 6.0A FWR total, with built-in Genesis LED strobe synchronization to UL 1971
  • Auto-programming: rotary-addressed devices map automatically on startup, cutting commissioning time on retrofit jobs
  • Retrofit-friendly: standard wiring throughout, no shielded cable required - reuse existing wire runs
  • ConnectedSafety+ ready: pair with the KCG1 cellular gateway for cloud-based remote diagnostics, real-time notifications, and central station monitoring over 5G LTE-M
  • Remote annunciation: supports up to eight RS-485 annunciators (LCD, LED, or graphic interface) on a 4,000 ft data line

System compatibility

The FX-1000-RE installs into an existing FX-1000 panel enclosure. Supports optional SA-ETH Ethernet, SA-DACT2 dialer, SA-232 RS-232, SA-USB, and KCG1 cellular gateway cards. The RZI16-2RS remote zone interface module adds 16 conventional IDCs and two additional NACs for mixed intelligent/conventional installations.

Specifications

SKUKD-FX-1000-RE
BrandKidde Commercial
Form factorReplacement electronics assembly for FX-1000 intelligent FACP
SLC loops1 included (250 points), expandable to 4 (1,000 points) with FX-SLC1 or FX-SLC2
Device capacity per loop125 detectors + 125 modules (250 addresses)
NAC circuits4 Class B (Style Y) or 2 Class A (Style Z)
NAC current6.0A FWR total at 120/230 VAC, 2.5A max per circuit
Primary power120 VAC 60 Hz, 2.0A max (or 230 VAC 50/60 Hz, 0.97A max)
Auxiliary powerTwo 24 VDC outputs, 500 mA each
Strobe synchronizationGenesis LED, UL 1971 compliant
Remote annunciatorUp to 8 drops, RS-485 Class A or B, 4,000 ft max
Input zones32 max
Operating temp32°F to 120°F (0°C to 49°C)
Operating humidity0 to 93% RH, noncondensing
Terminal rating12 to 18 AWG
Battery24V sealed lead acid, 26 Ah max, 24 or 60 hour standby
Communication optionsKCG1 cellular (5G LTE-M), SA-ETH Ethernet, SA-DACT2 dialer, SA-232 RS-232, SA-USB
ComplianceUL, ULC listed (S3000), NYC Fire Dept approved

Documents and resources

FAQs

What comes with the FX-1000-RE?
One 250-point SLC loop controller (125 detectors + 125 modules), main processor, four NAC circuits, two 24 VDC aux outputs, and RS-485 annunciator port. Drops into existing FX-1000 backbox. Add FX-SLC modules to expand to four loops.
Is this a direct swap for an existing FX-1000 panel?
Yes. The FX-1000-RE replaces the electronics in an existing FX-1000 enclosure. Reconnect the same terminal blocks for SLC loops, NACs, annunciator bus, auxiliary power, and relay outputs. No backbox or enclosure change required.
Can I expand beyond 250 device addresses?
Yes. Add FX-SLC1 (single loop) or FX-SLC2 (dual loop) expansion modules to reach up to four SLC loops and 1,000 total device addresses (500 detectors + 500 modules).
What NAC capacity does the FX-1000-RE support?
Four Class B (Style Y) or two Class A (Style Z) NAC circuits, rated at 6.0A FWR total at 120/230 VAC. Maximum 2.5A per individual circuit. Built-in Genesis LED strobe synchronization to UL 1971.
Does the FX-1000-RE support remote monitoring?
Yes. Pair with the KCG1 cellular gateway for ConnectedSafety+ cloud-based diagnostics, real-time notifications, and central station monitoring over 5G LTE-M. Also supports SA-ETH Ethernet and SA-DACT2 dialer for traditional monitoring paths.
