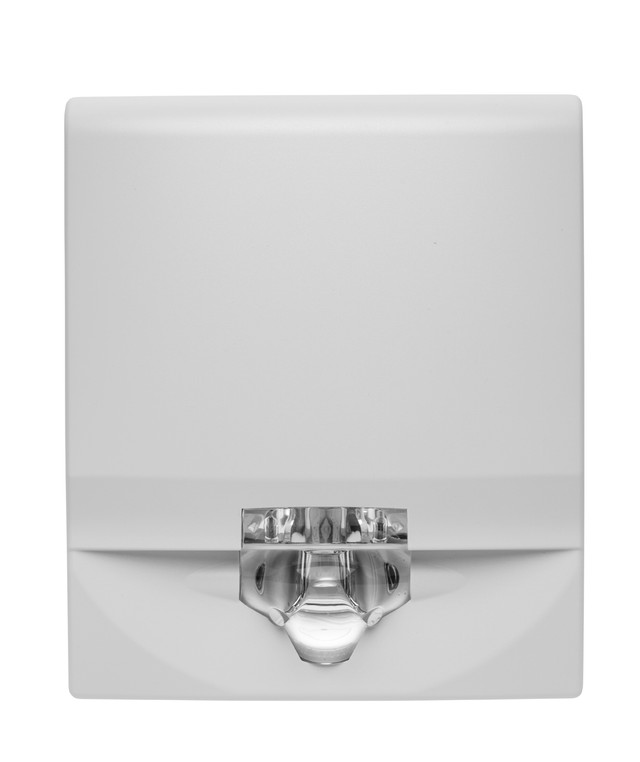

Genesis LED EG4 Series Wall Mount Strobe, 15-110 cd Field-Selectable, White, No Marking
Kidde Commercial

Genesis LED EG4 Series Wall Mount Strobe, 15-110 cd Field-Selectable, White, No Marking

SKU KD-EG4VWN

New to SS&Si? Apply for a dealer account
Share
  • Fast shipping from four branches
  • 30-day returns on unopened products
Questions? Call us 866-364-0030The SS&Si dealer team

The Genesis LED EG4VWN is a wall-mount visible notification appliance with field-selectable strobe output from 15 to 110 candela. LED technology cuts current draw significantly below older xenon Genesis strobes, letting you load more devices per NAC circuit without upgrading wire runs or power supplies.

Built for the commercial fire installer

UL 1971 and ULC-S526 listed for visual signaling. Mounts on any standard 4-inch square electrical box with the included GP10 room-side wiring plate - terminate conductors without pulling the device off the wall. The Genesis sync protocol keeps all strobes on the circuit flashing in unison per NFPA 72, no separate sync module required.

Key features

  • Field-selectable candela: 15, 30, 75, 95, or 110 cd - set at the device, no ordering separate models per coverage area
  • LED technology: lower current draw than xenon equivalents, more devices per NAC circuit
  • Built-in synchronization: Genesis sync protocol keeps all devices on the NAC flashing in unison per NFPA 72
  • Room-side wiring: GP10 wiring plate included for conductor termination without removing the device
  • White housing, no marking: clean appearance for applications where "FIRE" lettering is not required
  • Standard mounting: fits any 4-inch square (4-11/16") electrical box or optional Genesis surface mount backbox

Compatibility

Works with Kidde Commercial intelligent and conventional fire alarm control panels. Compatible with any listed NAC power supply or FACP NAC output operating in the 16-33 VDC range. Synchronizes with other Genesis LED devices on the same circuit.

Specifications

SKUKD-EG4VWN
BrandKidde Commercial
Form factorWall-mount LED strobe
Candela output15, 30, 75, 95, 110 cd (field-selectable)
Operating voltage16-33 VDC or 16-33 VDC FWR
Flash rate1 flash per second (synchronized)
SynchronizationGenesis LED sync protocol
Wire gauge12-18 AWG
Operating temp32°F to 120°F (0°C to 49°C)
Humidity10-93% RH non-condensing
MountingStandard 4-inch square (4-11/16") electrical box
Housing colorWhite
MarkingNone
Included accessoriesGP10 room-side wiring plate
ListingsUL 1971, ULC-S526
ComplianceNFPA 72, ADA
EnvironmentIndoor use only

Documents and resources

FAQs

What candela settings are available on the EG4VWN?
Five field-selectable settings: 15, 30, 75, 95, and 110 cd. Set via a switch on the device - no need to order separate models for different coverage areas.
Does the EG4VWN synchronize with other Genesis devices?
Yes. The Genesis LED sync protocol keeps all strobes on the same NAC circuit flashing in unison, meeting NFPA 72 synchronization requirements without a separate sync module.
What electrical box does the EG4VWN mount on?
Standard 4-inch square (4-11/16") electrical box. For surface-mount applications where no box is available, use the optional 27193-26 (white) or 27193-21 (red) Genesis surface mount backbox.
Can I use this strobe outdoors?
No. The EG4 series is rated for indoor use only (32°F to 120°F, 10-93% RH non-condensing). For outdoor applications, see the Kidde Genesis LED outdoor notification devices.
What voltage does the EG4VWN require?
16-33 VDC regulated or 16-33 VDC full-wave rectified (FWR). Compatible with any listed NAC power supply or FACP NAC output within that range.
Is the GP10 room-side wiring plate included?
Yes. The GP10 wiring plate ships with every Genesis LED EG4 device, allowing conductor termination from the room side without removing the strobe from the box.
