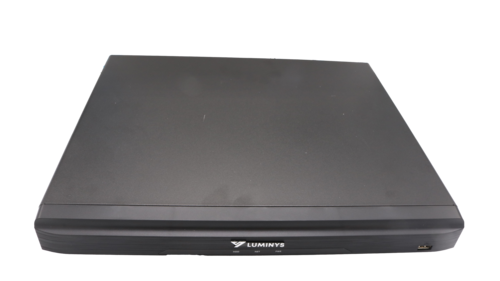

R5 Mainstream NVR, 32MP 16 Ch 16-Port PoE, 2SATA, LumiPower, LumiSearch+
SKU LM-R52-16PA
- Fast shipping from four branches
- 30-day returns on unopened products
The Luminys R52-16PA puts 8K recording, 16-port PoE, and AI-driven search into a single 1U chassis. LumiPower extends PoE delivery up to 3,000 feet on ports 1-8 -- cutting the need for repeaters or additional power runs on large campus and commercial installs. LumiSearch+ pulls footage of a specific subject across all 16 channels using a reference image (body shape, clothing color) without manually scrubbing hours of video. NDAA compliant out of the box.
Built for the commercial installer
Handles up to 32MP per channel across all 16 channels, with on-board face recognition, VCA, iMD, and LPR -- no per-camera AI licensing required. ONVIF and RTSP interoperability keeps it compatible with your existing camera mix. The 130W PoE power budget (25.5W max per port, IEEE 802.3 af/at) covers a full 16-camera run. Dual SATA bays accept drives up to 16TB each. Rack or desktop mount.
Key features
- 8K / 32MP recording: 16 simultaneous channels, synchronous playback on all 16
- LumiPower on ports 1-8: extends PoE up to 3,000 ft -- no repeaters, no extra power hardware
- LumiSearch+: reference-image target search across all 16 channels with clothing-color and body-shape attributes
- On-board analytics: iMD (8CH), VCA (4CH, 10 rules/channel), face recognition (2CH capture + 16CH alarm), LPR (8CH)
- Dual SATA, up to 16TB per drive: 130W PoE budget, 25.5W max per port
- NDAA compliant, ONVIF-compatible: FCC certified, integrates across mixed camera environments
System requirements
LumiSearch+ requires LumiSearch+-enabled cameras. Enabling LumiSearch+ disables analytics by recorder, local fisheye dewarp, and the NVR face database -- IP cameras retain database access. LumiViewer (desktop and mobile) and LumiCloud remote access are included at no additional charge. Network via single RJ-45 GbE. Drives sold separately.
Specifications
| SKU | LM-R52-16PA |
|---|---|
| Brand | Luminys |
| Form factor | 1U, Rack- or Desktop-Mount |
| Video channels | 16 |
| Max resolution | 32MP per channel |
| Recording formats | H.265+, H.265, H.264+, H.264, MJPEG |
| Decoding capacity (AI On) | 1CH@32MP, 2CH@16MP, 4CH@8MP, 12CH@4MP (30 fps) |
| Decoding capacity (AI Off) | 2CH@32MP, 4CH@16MP, 8CH@8MP, 16CH@4MP (30 fps) |
| Analytics | iMD 8CH, VCA 4CH (10 rules/ch), Face Recognition 2CH capture + 16CH alarm, LumiSearch+ 16CH, LPR 8CH |
| HDMI output | 4K (3840x2160), 1920x1080, 1280x1024 |
| VGA output | 1920x1080, 1280x1024 |
| SATA ports | 2 (up to 16TB per HDD) |
| Network | 1x RJ-45 GbE (10/100/1000 Mbps) |
| PoE ports | 16x RJ-45 (10/100 Mbps), IEEE 802.3 af/at |
| PoE power budget | 130W total, 25.5W max per port |
| LumiPower range | Up to 3,000 ft (ports 1-8) |
| Recording bandwidth | AI On: 220 Mbps | AI Off: 400 Mbps |
| Interoperability | ONVIF, RTSP |
| Client apps | LumiViewer (desktop + mobile), LumiCloud |
| USB | Front: 1x USB 2.0 | Rear: 1x USB 3.0 |
| Serial port | 1x RS-232 |
| Alarm I/O | 4-channel input, 2-channel output |
| Audio | 1-channel RCA in/out |
| Power input | 100-240V AC, 47-63 Hz |
| Power consumption | |
| Operating temp | 14°F to 131°F (-10°C to 55°C) |
| Operating humidity | 10% to 93% |
| Dimensions | 14.7 x 12.8 x 1.7 in. (372.0 x 325.8 x 43.7 mm) |
| Weight | 5.9 lb (2.6 kg) without HDD |
| Compliance | NDAA |
| Certifications | FCC |
