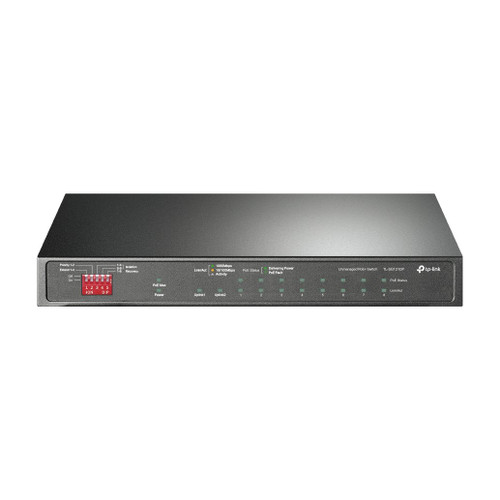

10-Port Gigabit Desktop PoE++ Switch with 2 PoE++ and 6 PoE+ Ports, 123 W, Combo SFP
SKU TPL-TL-SG1210PP Model TL-SG1210PP
- Two 802.3bt PoE++ ports and six 802.3af/at PoE+ ports on a 123 W budget
- Extend mode runs PoE and data to 250 m on ports 1 to 4 for long camera runs
- One combo SFP/RJ45 port gives a fiber or copper uplink on the same switch
- Unmanaged and fanless, so it is plug and play with nothing to configure
- Fast shipping from four branches
- 30-day returns on unopened products
Product highlights
- Ports9 x Gigabit RJ45, 1 combo SFP
- PoE2 PoE++, 6 PoE+, 123 W
- RangeExtend mode to 250 m
- Size8.2 x 5.0 x 1.0 in, fanless
The TL-SG1210PP is an unmanaged 10-port Gigabit desktop switch with two 802.3bt PoE++ ports and six PoE+ ports on a 123 W budget. It covers the odd job that mixes a high-power PTZ or AP with a few standard cameras, with no configuration.
Built for mixed-power camera and AP jobs
Ports 1 and 2 comply with 802.3af/at/bt for higher-draw devices, and ports 3 to 8 comply with 802.3af/at. A combo SFP/RJ45 port gives a fiber or copper uplink. Extend mode on ports 1 to 4 reaches 250 m, priority mode covers ports 1 and 2, and PoE Auto Recovery watches ports 1 to 8. The fanless steel case stays quiet.
Key features
- 2 PoE++ and 6 PoE+ ports, 123 W total: 802.3bt on ports 1-2, 802.3af/at on ports 3-8
- Extend mode to 250 m: on ports 1 to 4 for long camera runs
- Combo SFP/RJ45 port: for a fiber or copper uplink
- PoE Auto Recovery: restarts a frozen PoE device on ports 1 to 8
- Plug and play: unmanaged and fanless, nothing to configure
System requirements
None. Uses the included 53.5V DC external power adapter. Powered devices must be 802.3af, 802.3at or (ports 1 and 2 only) 802.3bt compliant.
Specifications
| SKU | TPL-TL-SG1210PP |
|---|---|
| Brand | TP-Link |
| Form factor | 10-port Gigabit unmanaged desktop PoE++ switch |
| Communication | Ethernet / IP |
| Power input | External adapter, 53.5V DC / 2.43A (included) |
| Power consumption | 144.1 W max at 220V with 123 W of PoE load |
| Management | Unmanaged |
| PoE | 802.3af PoE |
| PoE | 802.3at PoE+ |
| PoE | 802.3bt PoE++ |
| Port speed | Gigabit |
| Ethernet ports | 9 x Gigabit RJ45 (ports 1-2 PoE++, ports 3-8 PoE+) |
| SFP slots | 1 x Gigabit combo SFP/RJ45 |
| PoE budget | 123 W total |
| PoE features | Extend mode to 250 m on ports 1-4, priority mode on ports 1-2, isolation mode, PoE Auto Recovery on ports 1-8 |
| Switching capacity | 20 Gbps |
| Packet forwarding rate | 14.88 Mpps |
| MAC address table | 4K |
| Communication notes | 802.3x flow control, 802.1p/DSCP QoS, IGMP snooping |
| Cooling | Fanless |
| Mounting | Desktop |
| Dimensions | 8.2 x 5.0 x 1.0 in (209 x 126 x 26 mm) |
| Operating temp | 32°F to 104°F (0°C to 40°C) |
| Operating humidity | 10 to 90% RH, non-condensing |
| Compliance | FCC, CE |
| Package contents | TL-SG1210PP, power adapter, installation guide |
