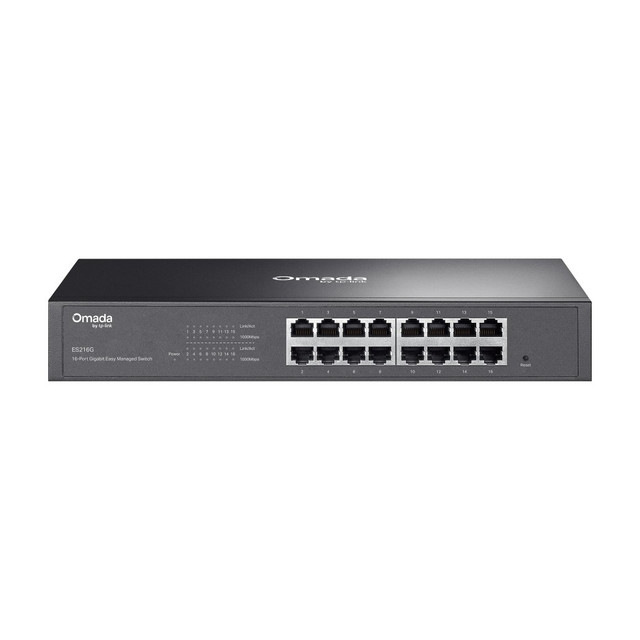

Omada 16-Port Gigabit Easy Managed Switch, Fanless, 1U Rack Mount or Desktop
SKU TPL-ES216G Model ES216G
- 16 Gigabit RJ45 ports with 32 Gbps switching capacity in a fanless case
- 802.1Q, MTU and port-based VLANs with IGMP snooping for small networks
- 1U rack brackets and screws included, or sits on a desk on rubber feet
- Adopts into Omada with zero-touch provisioning, or runs standalone by web GUI
- Fast shipping from four branches
- 30-day returns on unopened products
Product highlights
- Ports16 x Gigabit RJ45
- Mount1U rack or desktop
- Size11.6 x 5.5 x 1.7 in
- CompatibilityOmada controller managed
The Omada ES216G is a 16-port Gigabit Easy Managed switch for a wiring closet or small rack that needs VLANs and loop protection without a Smart switch price. It adopts into the same Omada site as the gateway and access points.
Built for small racks and wiring closets
All sixteen ports are 10/100/1000 RJ45 with 32 Gbps of switching capacity. The fanless metal case sits on a desk or mounts in a 1U rack with the included brackets and screws. 802.1Q, MTU and port-based VLANs, IGMP snooping and loopback detection are built in.
Key features
- 16 Gigabit RJ45 ports: uplink, recorder and a full run of drops on one switch
- VLANs and IGMP snooping: 802.1Q tagging with up to 32 VLAN groups, plus MTU and port-based VLANs
- Loop protection: loopback detection catches a patching mistake before it takes the site down
- Fanless, 1U rack or desktop: silent in use, brackets and screws included, with a physical security lock slot
- Omada management: zero-touch provisioning and batch firmware upgrades through the cloud controller
System requirements
Powered from a 100-240V AC outlet with the included power cord. This model has no PoE output. Centralized management needs an Omada Cloud-Based, Hardware or Software Controller; zero-touch provisioning needs the cloud controller. Without a controller the switch runs standalone from its web interface.
Specifications
| SKU | TPL-ES216G |
|---|---|
| Brand | TP-Link |
| Form factor | 16-port Gigabit Easy Managed switch, desktop or 1U rack mount |
| Communication | Ethernet / IP |
| Power input | 100-240V AC, 50/60 Hz (power cord included) |
| Power consumption | 8.4 W max at 110V |
| Management | Easy Managed |
| Port speed | Gigabit |
| Works with | Omada |
| Ethernet ports | 16 x Gigabit RJ45 |
| Switching capacity | 32 Gbps |
| Packet forwarding rate | 23.8 Mpps |
| MAC address table | 8K |
| Jumbo frame | 15 KB |
| VLANs | 802.1Q tag VLAN, up to 32 VLAN groups (4K VID), MTU VLAN, port-based VLAN |
| L2 features | Static link aggregation (up to 4 groups, 8 ports per group), loopback detection, 802.3x flow control, port mirroring (one-to-one, many-to-one), port statistics, LLDP |
| Security | Port isolation, storm control (broadcast, multicast, unknown unicast), physical security lock slot |
| Controller management | Omada Cloud-Based, Hardware and Software Controller; Omada app |
| Communication notes | Web GUI, DHCP client, cable diagnostics, LLDP, IGMP v1/v2/v3 snooping with fast leave, port-based/802.1p/DSCP QoS with 8 queues and WRR, ONVIF in controller mode |
| Cooling | Fanless |
| Surge protection | ±6 kV common mode on Ethernet ports |
| Mounting | Desktop or 1U rack mount (brackets and screws included) |
| Dimensions | 11.6 x 5.5 x 1.7 in (294 x 140 x 44 mm) |
| Operating temp | 23°F to 122°F (-5°C to 50°C) |
| Operating humidity | 10 to 90% RH, non-condensing |
| Compliance | FCC, CE |
| Package contents | ES216G, power cord, rubber feet, mounting brackets, screws, installation guide |
